Sealing Flange Assembly for 2.5" ( 63-64) Dia. Tube - FL-63

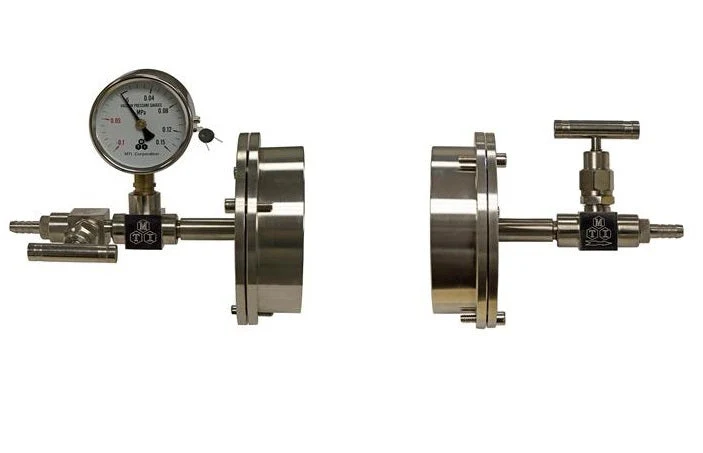

This is a pair of smart sealing assemblies for tube vacuum furnace to tighten both ends of O.D 2.5" ( 63 - 64 mm ) without any welding and gluing.

SPECIFICATIONS

Package included	One flange with gauge and valve, one flange with valve, two steel sealing rings, four high-temperature silicone O-rings (300oC Max.), and six screws
Vacuum Level	10E-2 torr by a mechanical pump 10E-4 torr by a small turbopump and  10-6 torr by hi-speed turbopump
Features	Made of Stainless Steel with double high-temperature silicon O-rings on each flange Two flanges as one side. One end flange has a vacuum meter with a valve, and another end has a valve Seal tube by tightening screws on the flange without any welding and glue 1/4" in diameter vacuum sealing assembly will connect with 1/4" rubber hose Excellent for any type of tubing: ceramic, glass, quartz, and steel pipe
Optional Parts	Please click here to order a digital vacuum gauge for precision vacuum control up to 10-4 torr For CVD application, please choose anti-corrosive vacuum gauge ( click pic below left 2 ) You can choose the various ends of fitting as options ( click here to order separately ) You may click here to order a flowmeter to control gas flowing  You may order flange support to avoid tube turning ( picture below right)
Warning	Must put a refractory tube block in front of the flange ( see picture below ) to avoid heat radiation melt silicone O-ring. You may order a ceramic block in related products. Please do not over-tighten the three hex screws on the flanges to avoid overpressure incidents. The recommended torque is 35~40 inch-lbs. For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Options	Click here to choose flange for tube from 42mm to 11"                             Vacuum Pump & High Vacuum Station
