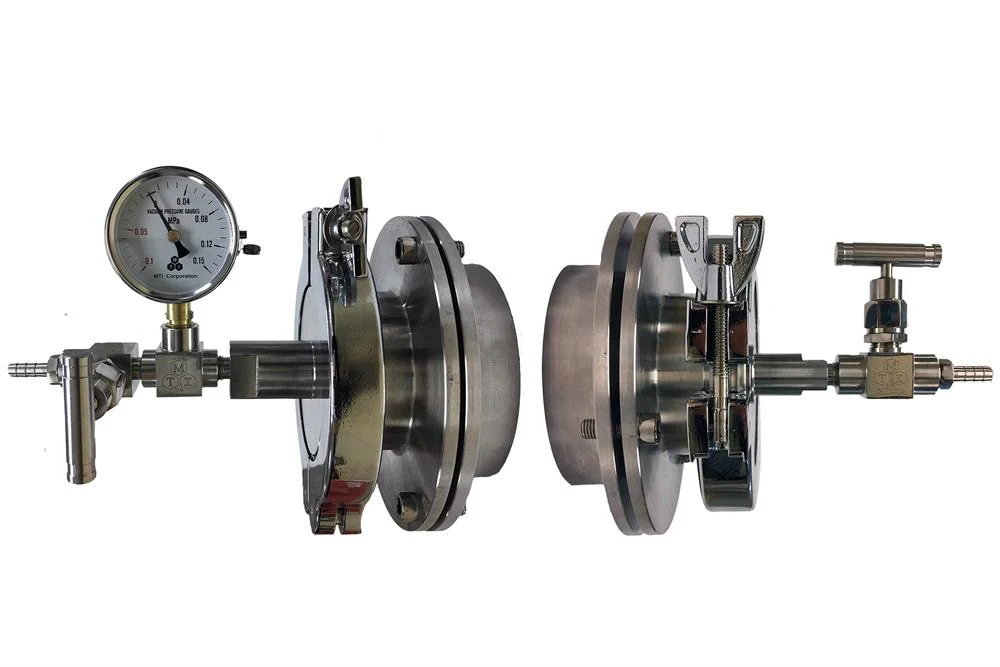

Quick Clamp Vacuum Sealing Assembly for 100mm dia Tube Furnace with KF50 Vacuum Port - FL-100QC

This is a quick clamp vacuum sealing assembly for a tube vacuum furnace tube of OD 100 mm with no welding or gluing needed.

SPECIFICATIONS

Features	Stainless steel flange with double high-temperature silicone O-rings. Seal tube by tightening screws on the flange with no welding and glue needed. Clamp allows quick access to content inside the furnace. High-temperature silicone O-ring and centering ring at flange cap. 1/4" in diameter vacuum sealing assembly connects with a rubber hose. Ideal for any type of tubing: ceramic, glass, quartz, and steel pipe.
Vacuum Level	10E-2 torr by a mechanical pump 10E-5 torr by a small turbopump and  10-6 torr by hi-speed turbopump
Optional Parts	For precision vacuum control up to 10-4 torr, please choose our Digital Vacuum Gauge. (Fig.1) For CVD application, please choose our Anti-corrosive Vacuum Gauge. (Fig.2) We provide various Fitting Ends for separate purchases. (Fig.3) For advanced control over gas flow, please choose our Float-meter. (Fig.4) The product requires flange support, please consider our Adjustable Tube Support. (Fig.5)                                     1                                2                              3                     4                               5
Warning	A refractory tube block is required in front of the flange to avoid silicone O-ring melting.  Please consider purchasing our ceramic Tube Block This product is heavy, flange support is required to avoid damage to the furnace tube.
Related Products	Click here to choose flange for tube from 1" to 11"                                       Vacuum Pump & High Vacuum Station
