CNC Dicing / Cutting Saw for 4" Max Wafer with Complete Accessories - SYJ-400

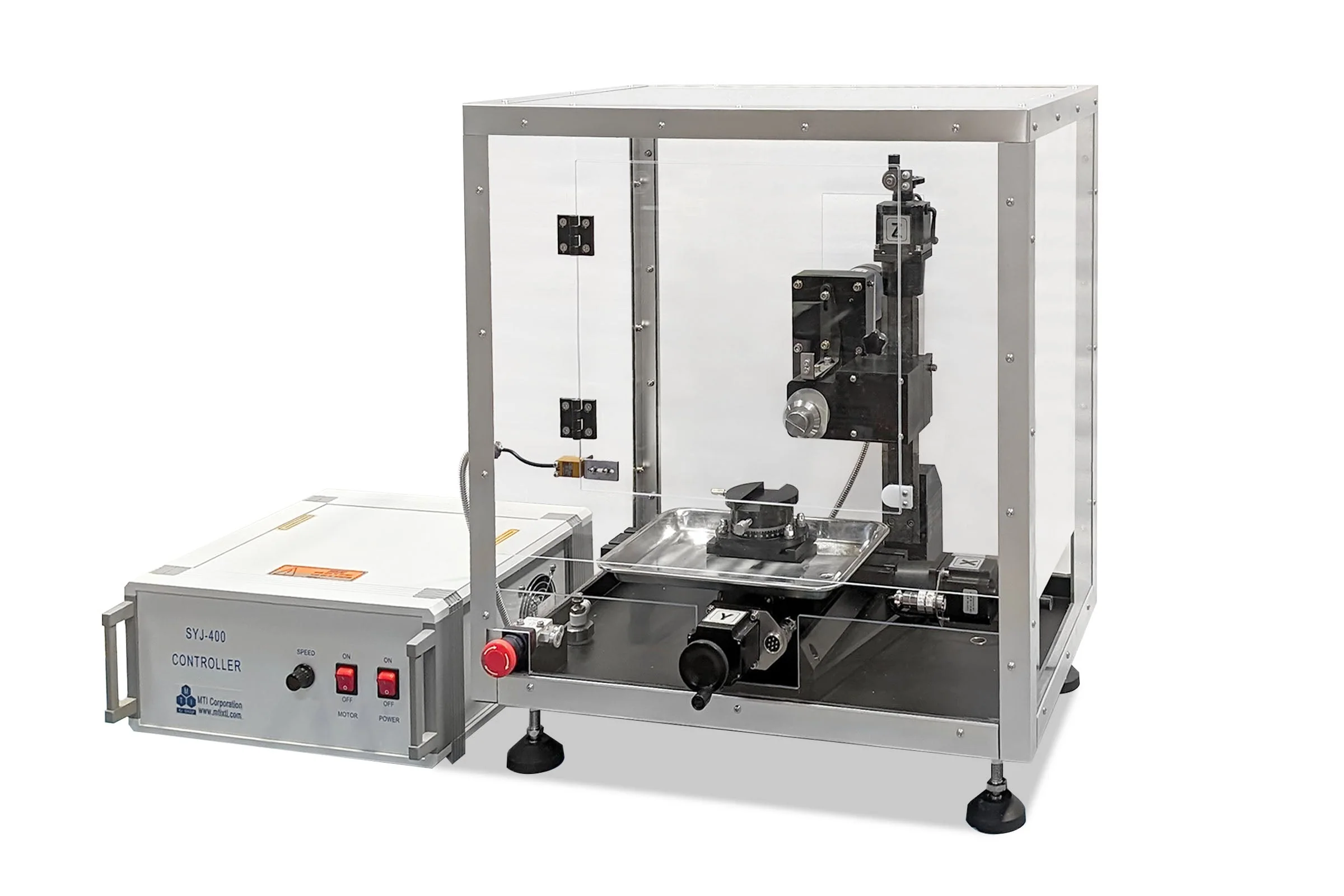

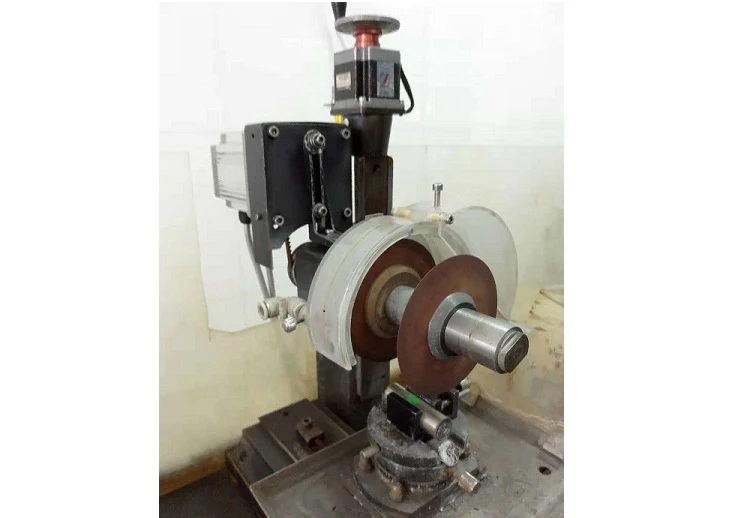

SYJ-400 (upgraded EC-400) is a CE-certified precise dicing and cutting solution for the R&D Lab in the Materials and Microelectronics research field. It is designed for dicing and cutting almost all kinds of materials up to 4" diameter wafer or 8" L x 4" W x 1" H components. The EC-400 saw can be computerized with a position accuracy of 0.01 mm. The sample stage with two angles adjustment allows customers to cut materials at the desired angle with +/- 0.5° tolerance. A laptop with software and USB cable are installed.

SPECIFICATIONS:

Voltage	AC 110V or AC 220V +/- 10% (please select and highlight the working voltage for the cutting saw and vacuum pump in your requirement.)
Motor	Brushless magnetic DC motor (110V) with variable speed up to 3,000 rpm Power consumption: 180W
Effective Cutting Range	3 dimension: X-axis: 8" , Y-axis: 4", Z-axis: 4" ( depth)
Moving/Cutting Speed Range	X-axis: 1-50mm/min adjustable Y-axis: 1-50mm/min adjustable Z-axis: 1-20mm/min adjustable
Accuracy	0.0025 mm moving resolution and 0.01 mm position accuracy.
Cutting Blades Kits	One 4" Dia x 0.35 mm thick fully sintered diamond blade Two pairs of flanges with 62 mm Dia. (for dicing) and 42 mm Dia. (for deep cutting)

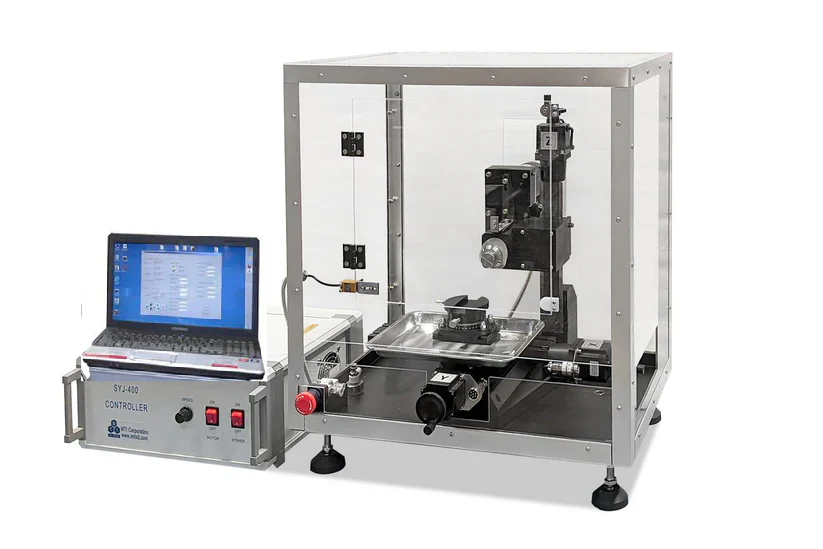

PC Software	Laptop and PC software is provided with the equipment Cutting parameters can be set in software as cutting length, width, diameter, time, feed speed, kerf loss, etc Manual or programmable control mode Compatible with Win 7/8/8.1/10 Click the pic below to view the software interface
Water Cooling	Assemblies of water jetting, draining, and Transparent plastic splashing protection is included The optional EQ-ECO-430 Coolant Circulating Tankis NOT included in the standard package. Please click the link to order if needed Adjustable nozzles are installed for re-circulating coolant Protective splash cover with elect cooling during tonic safety interlock installed
Accessories	Complete accessories are included for immediate use, including 120L/min Oilless vacuum pump, 4" diamond blade and sample holder, etc.Please see below standard package for details One vacuum chuck (P/N ECO402) and adhesive film (P/N ECO 419) are included for dicing the thin wafer

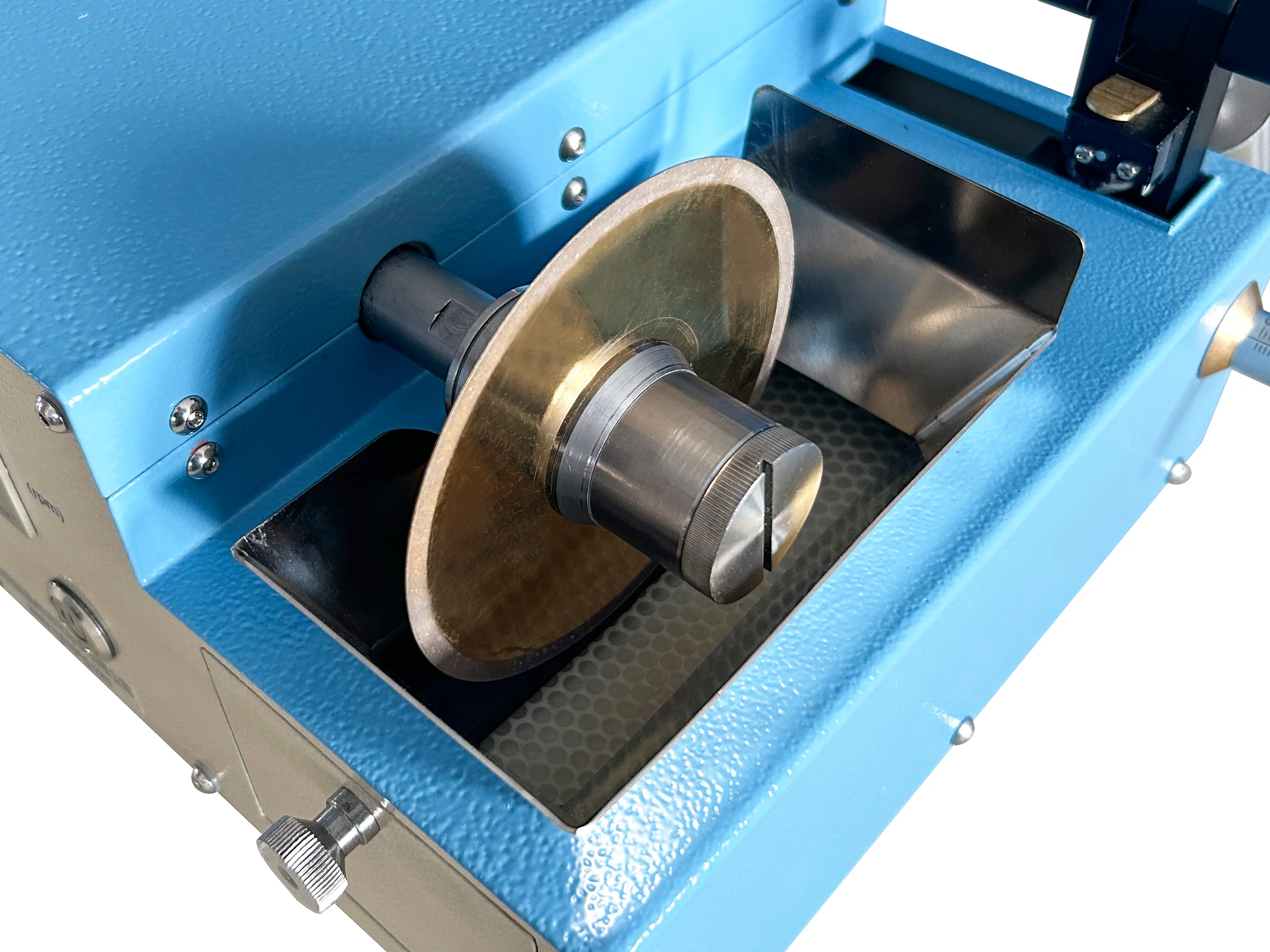

Optional	To extend cutting wire service life, please use LubeCool -150 Smart Solid Lubricant and Coolant (Pic. 1) For dicing Si, Ge, GaAs, and quartz, LiNbO3 wafers, you may consider using 100microns ultra-thin diamond blade with 1.5 mm Max. cutting depth because of fewer kerfs. (Pic. 2) Pic. 1 Pic. 2
Net WT& DIMEN	Net Weight: 33.5 kg 580mm L x 560mm W x 660mm H
Shipping WT & DIMEN	Shipping weight: 190 lbs 48" L x 40" W x 37" H
Warranty & Compliance	One year limited with lifetime support ---but not including damages caused by misuses, such as rusted parts from inadequate storage and broken parts by the user.
Certification	CE certified. With an additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.
Operation Instruction

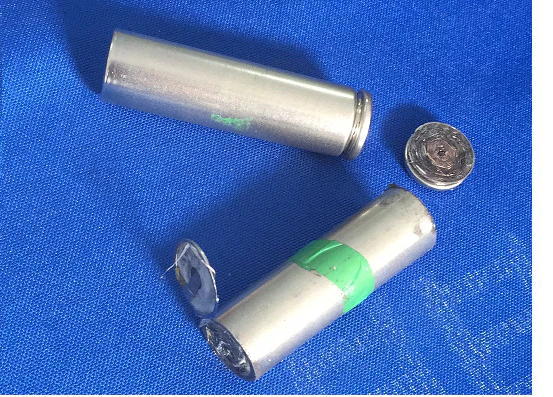

Application Notes	Click here to learn how to mount/ align the sample Must use anti-corrosion coolant during cutting to avoid rusting the lead screw. Please never use water as a coolant during cutting. You may select our LubeCool-150 lubricant as the coolant, and build up a small circulation system with a 6L circulating coolant tank, which will make the diamond blade cut more efficiently and prevent corrosion. Also, you can use W10-30 motor oil as a coolant, which is available at any auto store Instruction for SYJ-400 & SYJ-800 turning off windows automatic update Applications on various materials
Warning	It is required to use proper cutting fluid with the saw to prevent corrosion of the machine components. We strongly recommend you use an oil-based coolant or lube cool lubricant with the water. Do not use tap water directly, otherwise, the rusting component is not part of the warranty Never cut any materials without the use of proper cutting fluid. If you do so, serious damages can be caused by the spooler driving mechanism For cutting the sticky materials such as non-ferrous alloy, epoxy, and plastic, you must sharpen the diamond blade frequently. We suggest that cutting the sample along with the included dressing stone (Glue sample and the dressing stone side by side and cut them together, this process will help keep the blade sharp enough for efficient cutting Please clean the machine after the completion of each use, especially the lead screw using WD-40 lubricant (1 can include) after each use. Make sure the X, Y and Z axes can move freely without blocking and rusting If you don't know what is the best cutting speed for your material, please try to speed from low (2 mm/minute) to high (6 mm/minute). Harder material needs lower speed to avoid blade or sample broken
