Alumina Boat with 20 Cylindrical Crucibles (2.9 mL) with Lids for Hi-throughput Treatment - CA12D25H-MGI

Alumina Boat with 20 Cylindrical Crucibles (2.9 mL) with Lids for Hi-throughput Treatment - CA12D25H-MGI

Alumina Boat with 20 Cylindrical Crucibles (2.9 mL) with Lids for Hi-throughput Treatment - CA12D25H-MGI

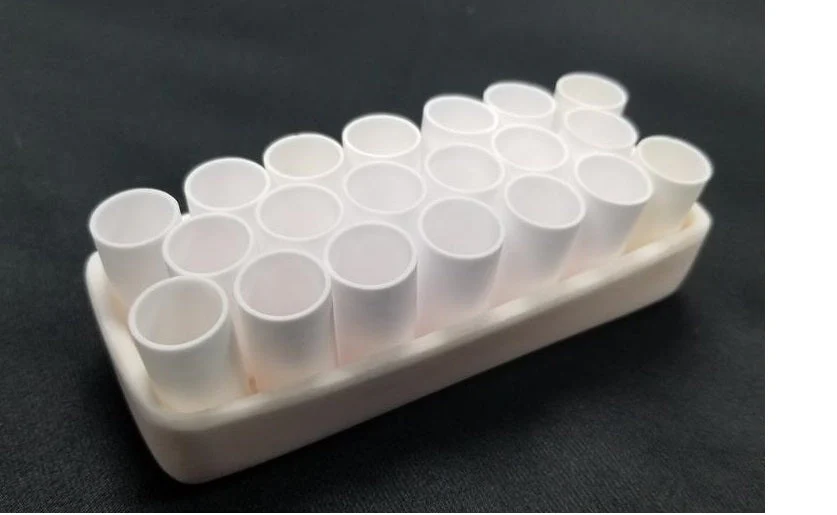

MGI-D12H25 is a set of alumina curcibles with a boat for hi-throughput material processing. It is good for samples in small amount but multiple batches. The assembly is compatible with MTI's Single Zone Furnaces with 3" tube or larger.
Size / material combinations are largely flexible with MTI's available crucibles and boats to fit various application requirements.

Features:

Alumina Boat	One (1) high purity Alumina combustion boats for easy organization of the miniature crucibles CA-L100W40H18 Dimension: Length: 100 mm; Width: 43±3 mm; Height: 18 mm Shape: as picture Capacity: ~40ml
Alumina Crucibles	Twenty (20) high purity Alumina cylindrical crucibles with covering lids for small quantities of samples CA-D12H25 Dimension: 12.5 mm OD; 10.5 mm ID; 25 mm Height Shape: Cylindrical, as picture shown Capacity: 2.9 ml The anti-slip design in the covering lid to ensure the lid stays in place on the crucible
Materials	Purity: Al₂O₃ > 99.5%; Fe₂O₃ < 0.01% 100% impervious Density: > 3.8 g/cm³ Max. working temperature: 1750 °C or 3180 °F Note: Never heat and cool faster than 5 °C/min. Otherwise, the boat and/or crucibles may crack.
Assembly Dimensions	100 mm L × 40 mm W × 31mm H

Please click here for more Possibilities with Ceramic Crucibles (Alumina, BN, Quartz, Zirconia, etc)

Alumina Crucibles / Boats

Boron Nitride Crucibles

Graphite Crucible

Graphite Crucible

Quartz Crucibles

Quartzwares (Crucibles, Boats, and Rods)

Y2O3 Crucible

Zirconia Crucibles / Boat

Molybdenum Crucible

Thermoelectric Testing Fixtures

Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

$103.44

Original: $295.55

-65%

Alumina Boat with 20 Cylindrical Crucibles (2.9 mL) with Lids for Hi-throughput Treatment - CA12D25H-MGI—

$295.55

$103.44

Alumina Boat with 20 Cylindrical Crucibles (2.9 mL) with Lids for Hi-throughput Treatment - CA12D25H-MGI

MGI-D12H25 is a set of alumina curcibles with a boat for hi-throughput material processing. It is good for samples in small amount but multiple batches. The assembly is compatible with MTI's Single Zone Furnaces with 3" tube or larger.
Size / material combinations are largely flexible with MTI's available crucibles and boats to fit various application requirements.

Features:

Alumina Boat	One (1) high purity Alumina combustion boats for easy organization of the miniature crucibles CA-L100W40H18 Dimension: Length: 100 mm; Width: 43±3 mm; Height: 18 mm Shape: as picture Capacity: ~40ml
Alumina Crucibles	Twenty (20) high purity Alumina cylindrical crucibles with covering lids for small quantities of samples CA-D12H25 Dimension: 12.5 mm OD; 10.5 mm ID; 25 mm Height Shape: Cylindrical, as picture shown Capacity: 2.9 ml The anti-slip design in the covering lid to ensure the lid stays in place on the crucible
Materials	Purity: Al₂O₃ > 99.5%; Fe₂O₃ < 0.01% 100% impervious Density: > 3.8 g/cm³ Max. working temperature: 1750 °C or 3180 °F Note: Never heat and cool faster than 5 °C/min. Otherwise, the boat and/or crucibles may crack.
Assembly Dimensions	100 mm L × 40 mm W × 31mm H
