20" Precision Grinding and Polishing machine with Three Work Stations Up to 8" - UNIPOL- 2001
20" Precision Grinding and Polishing machine with Three Work Stations Up to 8" - UNIPOL- 2001
UNIPOL- 2001 is a precision grinding and polishing machine with three processing stations, specifically for large-size samples. (≤Ø160mm wafers or rectangular with diagonal length ≤160mm). It can be used for grinding and polishing crystals, ceramics, metals, glass, rock samples, mineral samples, PCB plates, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium, etc.), refractories, composites, and other materials.
SPECIFICATIONS
| Environment Condition |
Altitude: ≤1000m |
| Power |
AC 220V, single phase, 50/60 Hz |
Grinding Plate and Rocking York |
|
| Sample Plate |

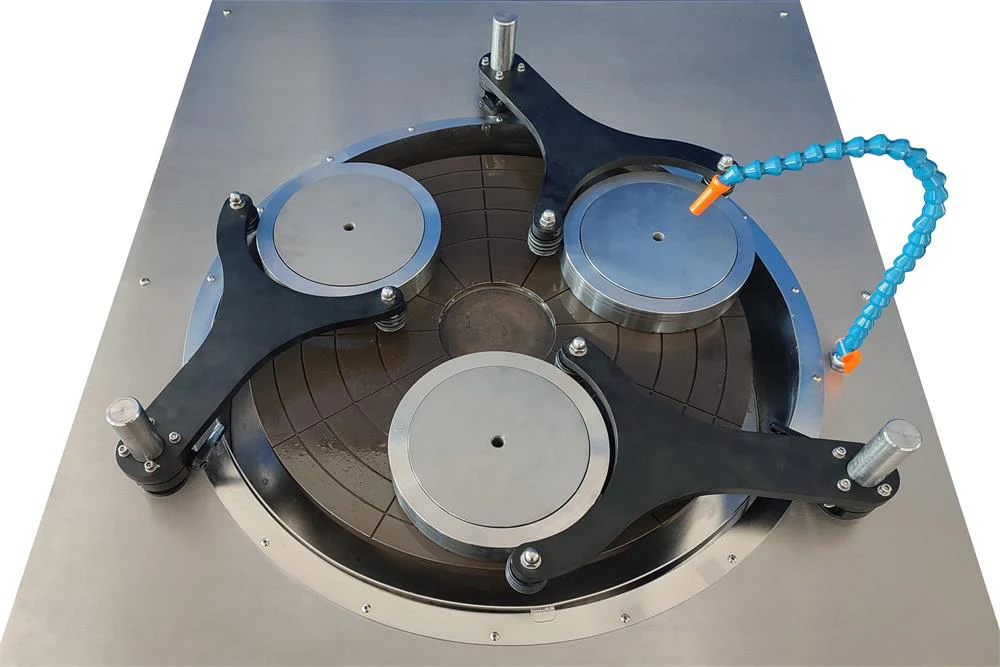

Diameter Ø160mm (6 inches) Thickness: 35mm *Three sample plates and three plate holders are located at three equal points outside the grinding plate |
| Conditioning Ring | OD: Ø196mm ID: Ø160.5mm Thickness 35mm |
| Optional Slurry Feeders | Please click the pictures below to choose the slurry feeder:  |
| Dimensions |  1180 L x 820 W x 945 H (mm) |
| Weight | 450kg |
| Reference Video |  |
| Warranty |
One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
| Reference Video |
Original: $25,985.00
-65%$25,985.00
$9,094.75More Images
20" Precision Grinding and Polishing machine with Three Work Stations Up to 8" - UNIPOL- 2001
UNIPOL- 2001 is a precision grinding and polishing machine with three processing stations, specifically for large-size samples. (≤Ø160mm wafers or rectangular with diagonal length ≤160mm). It can be used for grinding and polishing crystals, ceramics, metals, glass, rock samples, mineral samples, PCB plates, infrared optical materials (such as zinc selenide, zinc sulfide, silicon, germanium, etc.), refractories, composites, and other materials.
SPECIFICATIONS
| Environment Condition |
Altitude: ≤1000m |
| Power |
AC 220V, single phase, 50/60 Hz |
| Grinding Plate and Rocking York |
|
| Sample Plate |
Diameter Ø160mm (6 inches) Thickness: 35mm *Three sample plates and three plate holders are located at three equal points outside the grinding plate |
| Conditioning Ring | OD: Ø196mm ID: Ø160.5mm Thickness 35mm |
| Optional Slurry Feeders | Please click the pictures below to choose the slurry feeder: |
| Dimensions | 1180 L x 820 W x 945 H (mm) |
| Weight | 450kg |
| Reference Video | |
| Warranty |
One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance is not covered by warranty |
| Reference Video |
