15" Precision Polishing Machine for up to one 8" or three 4" wafers with Touch-Screen Control - Unipol-1502
HomeStore

15" Precision Polishing Machine for up to one 8" or three 4" wafers with Touch-Screen Control - Unipol-1502

15" Precision Polishing Machine for up to one 8" or three 4" wafers with Touch-Screen Control - Unipol-1502

EQ-UNIPOL-1502 machine is equipped with a 14 -15" diameter super flat lapping plate and can be used as a high precision lapping machine for polishing crystal components, semiconductor wafers, and ceramic substrates up to 8" diameter (high quality polishing for any size below 6"). It can also be adopted as a standard grinding and polishing machine for preparing metallographic samples.

SPECIFICATIONS

Voltage

AC208-240V (50/60Hz).
Power 400W
Two Flat Lapping Plates
 Two flat lapping plates are included with Flatness< 0.25 micron/Inch²
  • Major lapping plate diameter: 15"
  • One is made of cast iron with growing for lapping
  • One is made of Auluminiu for holding polishing pads
Sample Size & Workstation
  • Three workstations with a 4" sample per run
  • One workstation with 6" sample per run (high-quality polishing)
  • One workstation with 8" sample per run (decent quality polishing)
Adjustable Timer for Auto-stop 0~99 hours
Variable Speed 0 to 125 RPM with digital display
Dimensions

720mm L x 580mm W x 380mm H
Optional Accessories
  • Consumables for polishing/lapping/grinding. Click Pic. 1 to see more details
  • The multi-sample polishing fixture is available up to 3 x 8 pcs for 1" dia. samples per batch (Pic. 1)
  • 4" Polishing Fixture With Pressure Indicator for Precision / Automatic Thinning and Polishing- EQ-PF-4-1P is available for ultra-flat surface lapping and polishing (Pic. 3 &4)
  • Precision Thickness Checker with 0.001 mm Dial/Digital Indicator available at an extra cost (Click Pic. 5)
Compliance
  • CE Certified
  • NRTL certification is available at an extra cost
Optional Automatic Slurry Feeder
  • The automatic slurry feeder SKZD-2 is not included
  • The plastic rolling container can take the volume of slurry up to 1.0 Gallon (~3.8L) for a long time of polishing
  • Please click the left picture to order.
Shipping Dimensions
  • 580 x 720 x 380, mm (L x W x H)
Shipping Weight
  • 420 lbs
Application
  • Unipol-1502 allows a sample size up to 8" with a different number of workstations involved. A total of 3 yokes are equipped.

Consumable Parts

 P/N Name and the price for the replacement Qty.

Thumb Picture
UP1502-01 Unipol 1502 Polishing Machine

1
UP1502-02 15" Cast Iron Polishing Plate

1
UP1502-03 15" Cast Aluminum Polishing Plate

1
UP1502-04 Conditioning Rings

3
UP1502-05 Sample Holders

3
UP1502-06 15" Polyamide Foam Polishing Pad

1
UP1502-07 15" Poromeric Polishing Pad (PSA)

1
UP1502-08 Screw Drivers

1 set
UP1502-09 AC Power Cord

1
UP1502-10 Operation Manual

1
$12,698.00
15" Precision Polishing Machine for up to one 8" or three 4" wafers with Touch-Screen Control - Unipol-1502—
$12,698.00

More Images

15" Precision Polishing Machine for up to one 8" or three 4" wafers with Touch-Screen Control - Unipol-1502 - Image 2

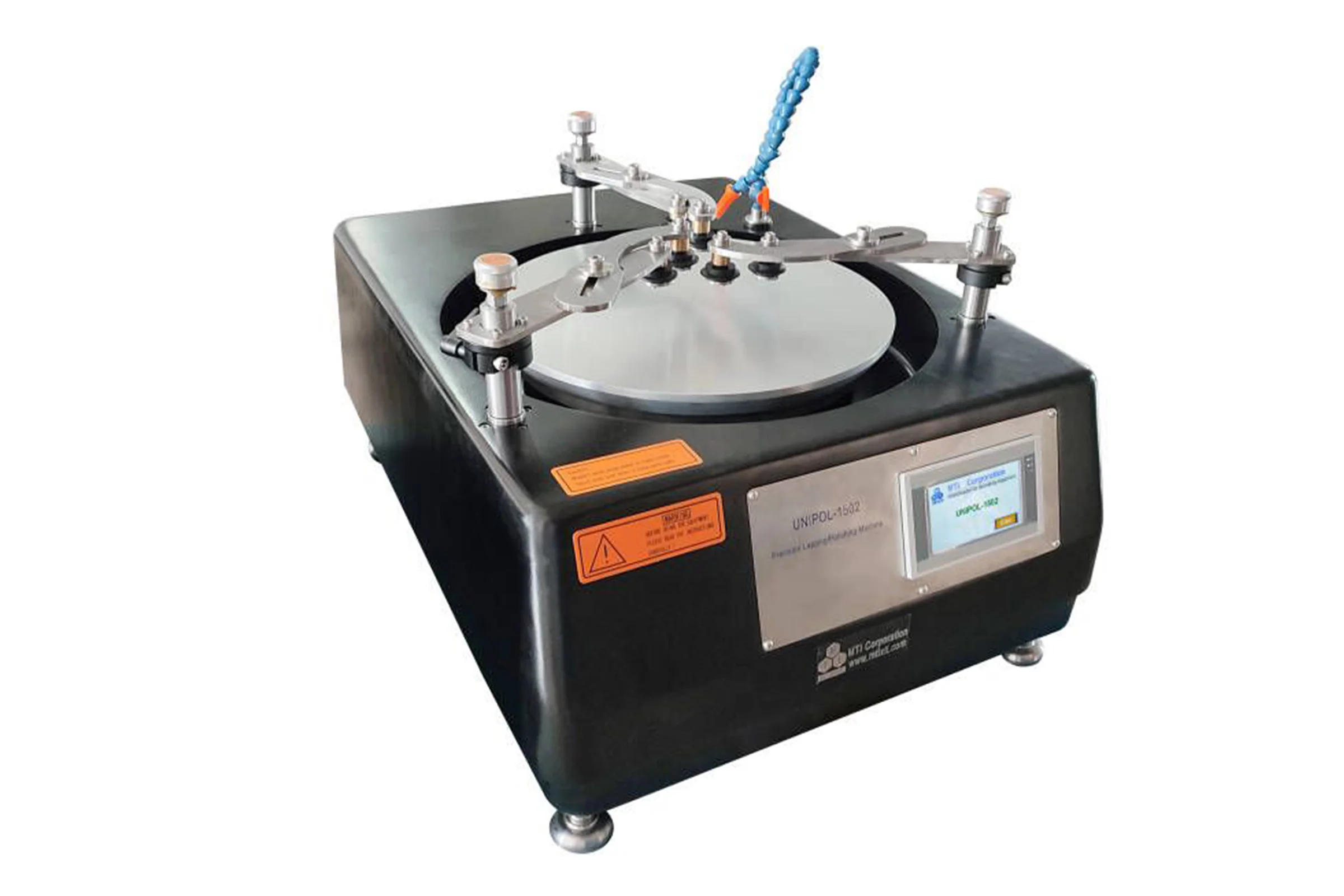

15" Precision Polishing Machine for up to one 8" or three 4" wafers with Touch-Screen Control - Unipol-1502 - Image 3
