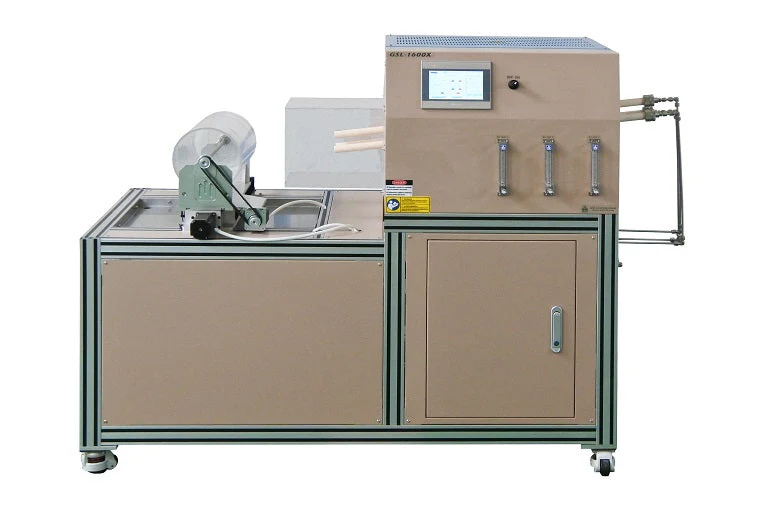

1600°C Max. MIST CVD Furnace for Continuous Growth of Carbon Nanotube - GSL-1600X-CFM

Features

Furnace

• Voltage:  AC208 - 240V,  50/60Hz, single phase,
• Power:    5200 W
• Working temperature:      800 -1600
• Heating zone Length:      290 mm
• Heating Rate:                   ≤ 1400≤10/min 1400-1600≤5/min
• Temperature controller:   30 segments programmable with an accuracy of ±1.

Processing Tube

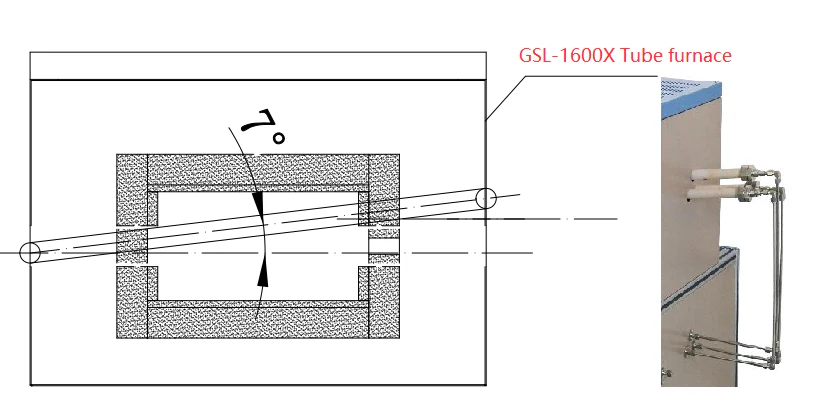

• Three OD 25 x L1000 mm alumina tubes are inserted into the furnace at 7o angle as shown in  Pic. left.
• Three OD 6.35mm  x L 500 mm small alumina tubes are inserted into a 25 mm tube to deliver mist to the heating zone
• Flanges and SS tubes are included

Syringe pump and Vapor
Pic. 1

Pic. 2

• One digital syringe pump is included and located on the bottom of the furnace
• • Holds syringes from 0.4 mm up to 30 mm in diameter
  • Remembers previous settings on power-up
  • Pumping rate: 0.001 -- 20 mm/min
  • Travel range: 0.001 --90 mm
•  The syringe pump is connected to compressive gas to produce liquid-vapor ( mist ) as shown Pic. 1-2

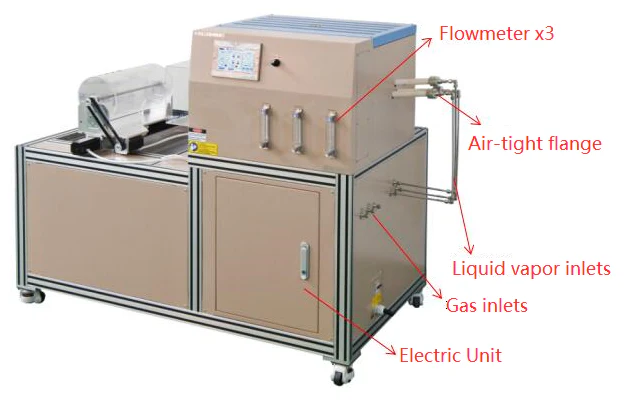

• Option: Multi-channel syringe pump Pic. 3) and ultrasonic spraying head (Pic. 4) is available at the extra cost
•  Pic. 3     Pic. 4

Collecting Drum

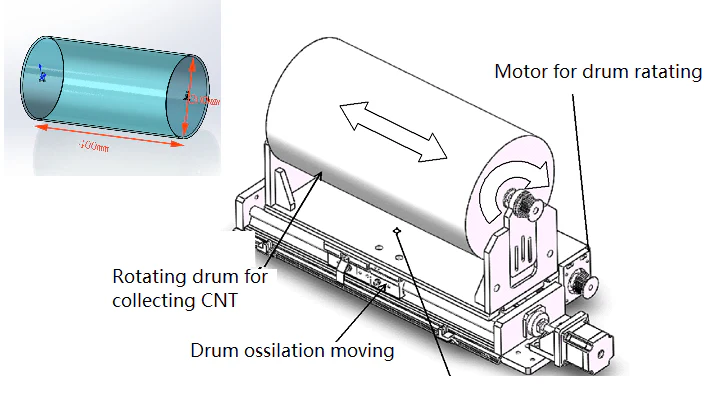

• One rotating drum is included for collecting carbon nanotubes,
• Drum size: OD 200 mm X L  400mm, which is made of plastic (
• Rotation speed:  1- 16 rpm programmable
• Oscillation speed: 0-40mm/min adjustable
• Option:   Different drum materials and water cooling are available upon request

Control Panel

• Touch screen control panel to set operation parameters, including
• Temperature program and curve
• Drom rotating and oscillation speed
• RS 485 port and PC operation software is available upon request

• Customers may calibrate temperature before use to obtain accurate temperature inside tube furnace, please click here to learn how.
