OTF-1200X-4-NW-UL is a compact 1100°C CVD tube furnace with a precursor sublimating attachment. Totally four-channel gas inlets are built on the sublimation which allows feedings of various gases to carry the source vapor into the main heater for further decomposition and deposition. The sample holder fixture mounted on the right flange is slidable for easy sample loading/unloading. Such a system configuration is suitable for growing a wide range of transitional metal dichalcogenides (TMD )such as MoSe2, MoS2... and wide bandgap semiconductors (such as h-BN) layers on substrate up to 3" diameter.

Specifications


Furnace and Preheater
Pic. 1

Pic. 2

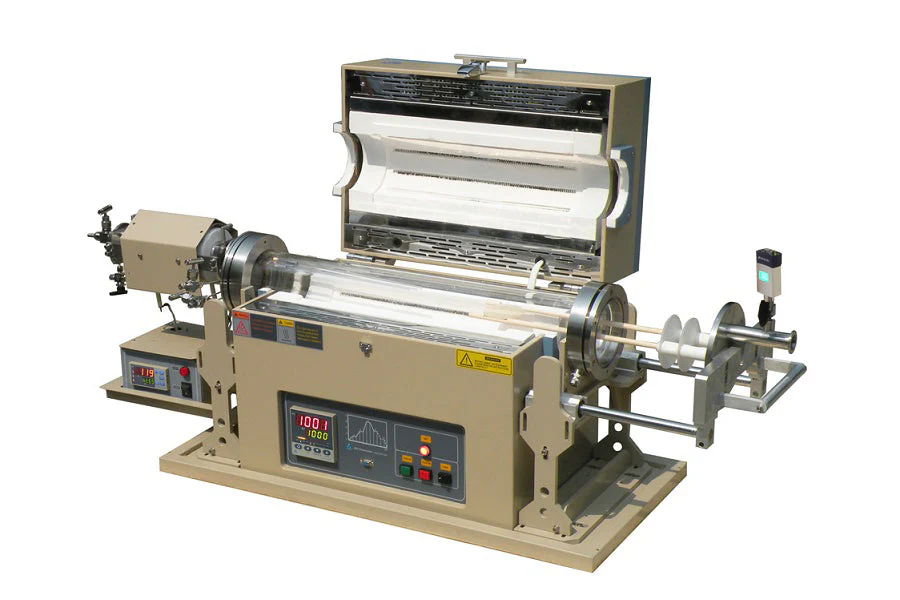

  • Compact CVD furnace system with:
    • 4.33" O.D x 4.05" I.D x 29.13" Length quartz tube  ( OD 110 xID 103 x L 740, mm )
    • 1100ºC Max. working temperature with +/- 1oC accuracy
    • The water cooling flange on the right side is slidable for easy sample loading
    • The water cooling flange on the left side between the heater and furnace is used for pre-heated gas input and sealing
  • Four-channel gas inlet ( 1/8" Dia tube and tube fitting) are built-in on the left side flange
  • One small heater is attached to the left side flange of the furnace to preheat input gas, liquid,  or evaporate solid chemical, which will be then delivered to the CVD furnace:
    Please click the picture left for more details:
    • 1.2''O.D x 6''L SS tube as the heating chamber

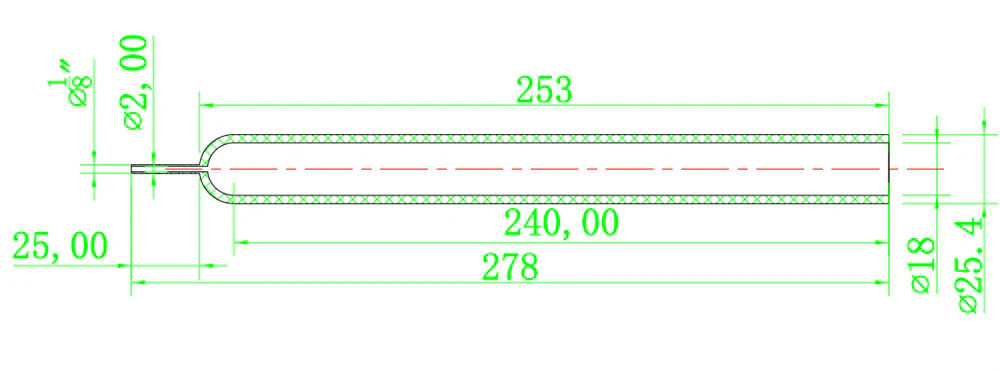

    • Vacuum sealed 1" ID small quartz tube inside the heater  ( Pic 2)
    • 400ºC Max. working temperature  ( 1000ºC heater is available upon request )
    • The flange on the left side is for gas sealing and input
Rated Voltage Single Phase, 208-240 VAC, 50/60 Hz, AWG 8# Power cord is included (without plug)
Power consumption Max. 3600 W (20 A breaker required)

Heating Zone
  • CVD Furnace:  440 mm
  • Constant temperature zone: 100 mm
  • Gas Heater:     150mm



Working Temperature
  • CVD Furnace:
    • Max heating temperature: 1100°C ( < 2 hour )
    • Continuous working temperature: 200~1000°C
    • Max heating & cooling rate: 20°C/min
  • Heater:
    • Continuous working temperature: RT~600°C
    • Max heating & cooling rate: 20°C/min
Temperature Control

  • CVD Furnace and Heater (separate temp control):
    • Digital controllers with PID/self-tuning functions and 30 segments programmable
    • Thermocouple: K-type thermocouples, at the right side flange through feedthrough to control furnace temperature.
    • Control accuracy: +/- 1°C
    • RS485 Communications Port













Vacuum
and Gas Sealing & Flange

 The right flange of the CVD furnace
  • Water cooling flanges to prevent sealing o-ring from melting ( please click water chiller to order)
  • KF25 vacuum port to a pump, please click to order a pump,  vacuum hose, valve, and sealing gasket)
  • Slidable for the customer to easily and fast push/pull in/out a sample
  • One quartz wafer holder ( 3" Dia. ) is included and the flange with heating radiation block
  • An anti-corrosive capacitance diaphragm gauge is included
Left flange (between CVD Furnace and Heater) with four 1/8'' Swagelok fittings for 1/8'' tube:
  • Two 1/8'' fitting on the flange for independently and directly delivering any gas into the CVD furnace
  • One 1/8'' fitting for delivering heated gas from heater to CVD furnace
  • One 1/4'' fitting for bypassing the gas (without heating) to the CVD furnace (inside the CVD furnace, the gas tube is merged with the heated gas pipe by a T fitting)
Note: How gas pipe assembled in the CVD furnace through above 1/8'' fitting:

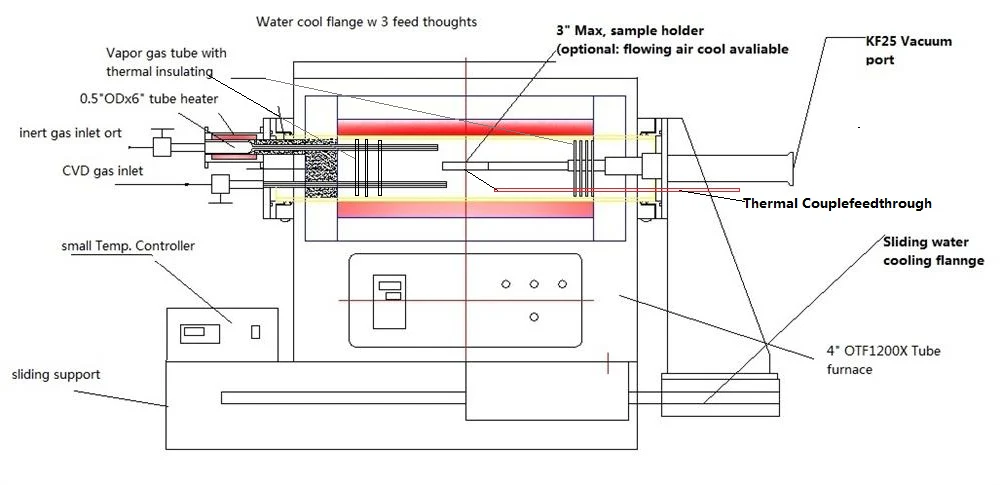

  • One 1/4'' quartz tube delivers the vapor gas from the heater(also the bypass gas by a T fitting)
  • Two 1/4'' quartz tube delivery extra gas via the two separate 1/8'' fitting on the big furnace left the flange
  • These three 1/4'' quartz tubes inside the CVD furnace are in parallel and vertically 1'' higher than the sample holder
  •  These three 1/4'' quartz tubes can be easily removed to clean or replaced once get stuck or corroded
Heater:
  • Left flange: one 1/8'' gas fitting to deliver gas to the heater for pre-heating and then to the CVD furnace On the right side to the CVD furnace with necessary thermal block material to minimize the temperature gradient at the interface between the heater and CVD furnace
  • Furnace Chamber Installation
  • 2- 1/4" pipe adapter is installed on each flange
The optional Liquid Injection device optional) For direct liquid CVD  ( DLCVD), you may consider the below devices for liquid injection: ( click Pic to order )

Net weight
 110kg
Dimensions
  • Standard:    62"L X 18"W X 23"H
  • Maximum:   80"L X 18"W X 32"H  (Lid open and right-side flange slide out)
Shipping Weight & Dimensions
  • 380 lbs
  • 48"x40"x54"
Warranty
  • One-year limited warranty for electrical parts. ( Consumable parts such as processing tubes, o-rings and etc are not covered by the warranty)
  • You may order a replacement quartz tube here:  EQ-QZTube-SF
Laptop, software & WiFi Control (Optional)

  • Brand new laptop with Microsoft Windows 10
  • Labview Based Temperature Control System (EQ-MTS01) enables the user to edit temperature profiles, manage heat-treatment recipes, record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 50 meters of operating range in an open area.
  • Eurotherm temperature controller with software is available upon request at extra cost, which can provide +/- 0.1oC accuracy. ( see product options bar)
Compliance

  • CE Certified
  • NRTL(UL61010)  or CSA certifications are available at extra cost.
Warning
Click here to learn about the installation of a gas regulator
  • The tube furnaces with quartz tubes are designed for use under vacuum and low pressure <0.2 bars (relative to 1 atm, absolute pressure = 1.2 bar if used in air)
  • Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn about the installation of a gas regulator.
  •  Vacuum pressures may only be safely used up to 1000°C
