1700C Bottom Loading Box Furnace (12x13x16", 40L) - VBF-1700X-BSA40

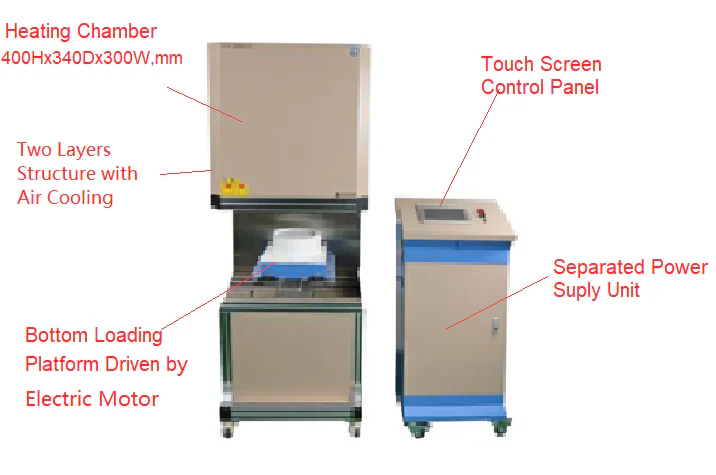

• Two-layer casing with air cooling gap.
• The outside case can be made of stainless steel at an option.
• Electric bottom loading for Rapid thermal heating and cooling process.
• High-purity thermal insulation material for better energy saving
• Separated control unit with touch screen panel for easy and safe operation.

• 1700 °C, continuously
• 1750 °C, < 1 hr

Heating Chamber

• Cylindrical, 400W x 340 D x 300 (H), mm ( 16"Hx13"Dx 12"H)
• Nominal Capacity: ~ 40 L

Power

• 220 VAC, 50/60 Hz single phase
• Max. Power: ~ 15 kW

Heating Element

• Kathal 1800oC grade MoSi2 heating element
• 10 pcs ( click picture below for details )

Max. Heating Rate

• ≤ 10 °C/min (Recommended)

Thermocouple

• Type B x 2

Temperature Control

• Touchscreen display unit for easy control.
• Eurotherm 3504 series Temperature Controller with10 programs (500 segments)
• ± 0.1 ºC temperature accuracy
• Overheat alarm, Deviation alarm, broken thermocouple alarm
• RS 485 communication port for remote control.
• PC software and interface are included
• Overheat alarm, electric leakage protection
• One extra temperature controller with the thermal couple is installed for monitoring temperature and cut-off power if over-temperature happens.

Compliance



• CE Certified
• NRTL (UL61010) or CSA certification is available upon request at extra cost.

Application Notes

• In order to obtain accurate temperature inside the tube furnace, you shall calibrate the temperature before use, please click here to learn how.
