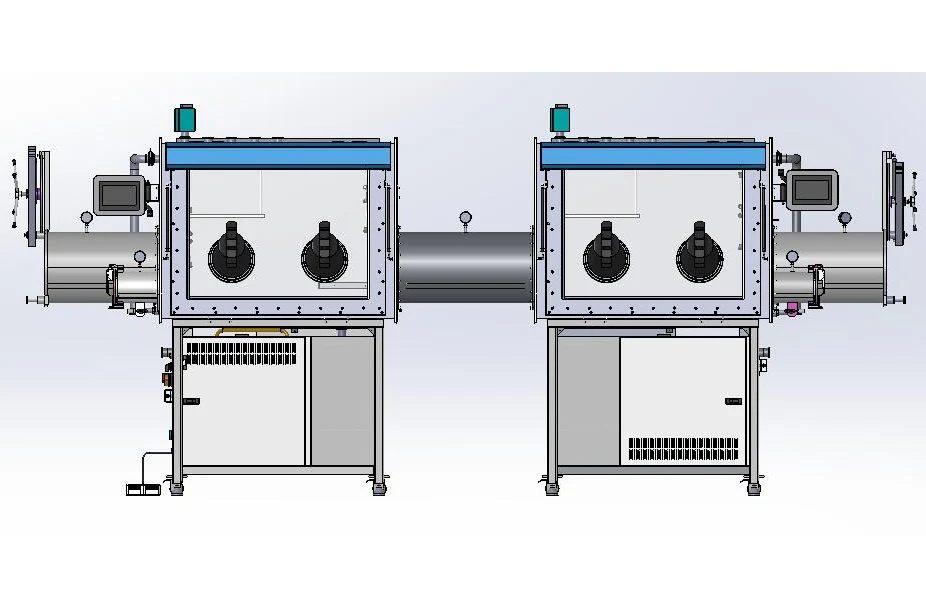

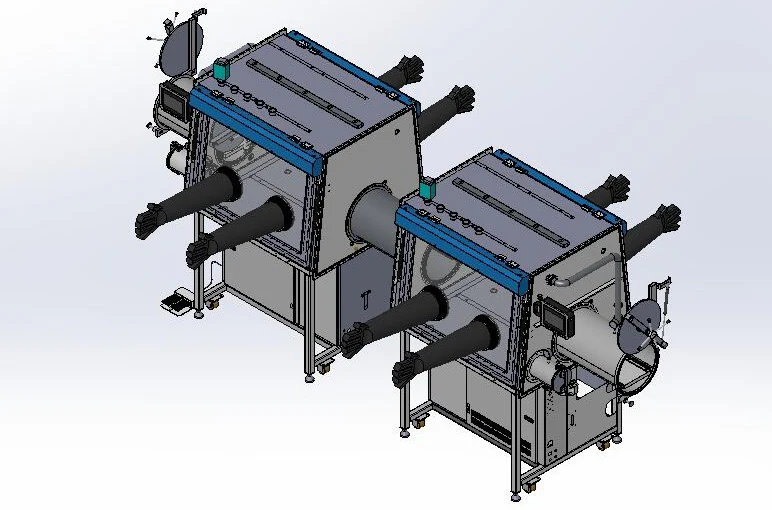

Integrated Dual Glovebox with 8 gloves and Central Transfer Chamber - VGB8IILD

• 120 VAC, 20 A or 208-240VAC, 16 A
• 50/60Hz, Single Phase
• 3.5  KVA

• Comprises two glovebox chambers
• Hinged window panels (tempered glass, 8 mm thick)

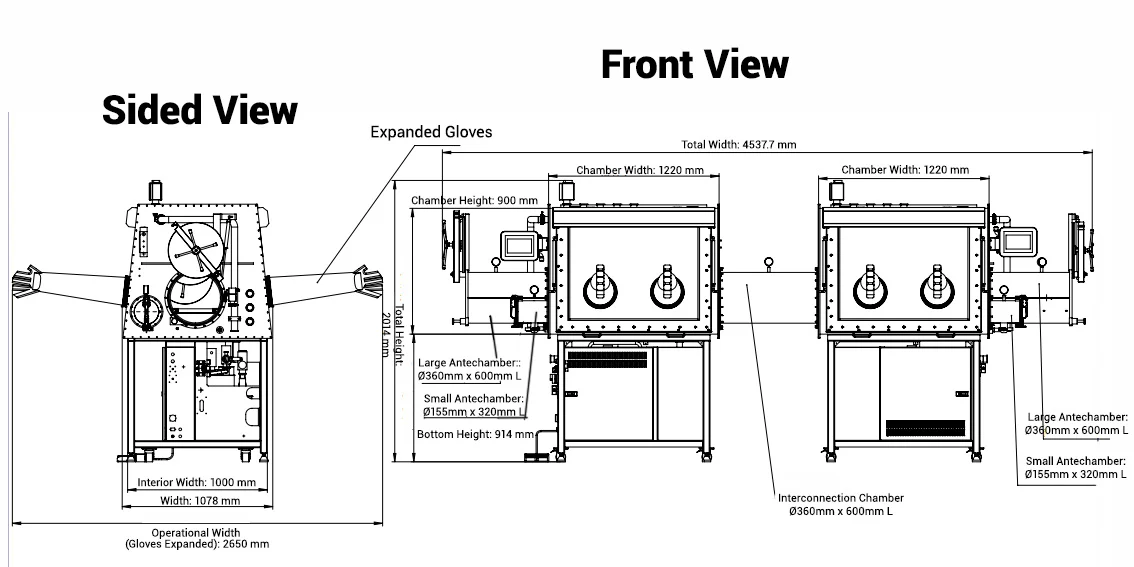

• Individual Interior Chamber Dimensions: 1220mm (L) x 1000mm (W) x 900mm (H)

• Case Material: Stainless Steel 304
• Built-in LED lamps
• Two shelves, 300mm L x 250mm W x 300mm H
• Two pieces of HEPA filters for particle size >0.3 μm

• Two Large Antechamber Dimensions: 360mm(Dia.) x 600mm(L)
• Two Small Antechamber Dimensions (for tools): 155mm(Dia.) x 320mm(L)
• One Interconnection Chamber: 360mm(Dia.) x 600mm(L)
• Max. vacuum level: 0.75 torr

• Water concentration: <1 ppm (20°C, 1 atm)
• Oxygen concentration: <1 ppm (20°C, 1 atm)

• Inert gas: N2, Ar, He
• Regenerating gas: non-flammable hydrogen blended gas (5%H2+95%N2 or <3% H2 balanced w/ Ar)

Gas Purification System

• Two gas purification systems in total, one purification system for each chamber.
• Automatically purging function for reducing O2 & H2O < 100ppm before cycling.
• Pressure control system is built in each chamber to keep the pressure at a constant level, with two control systems in total.
• Two Purification Cylinders: BASF antioxidant materials and UOP water adsorbent materials.
• Moisture removal capacity: 2 kg
• Oxygen removal capacity: 60L
• Stainless steel pipe connection
• Blower: Flow Rate: up to 90m³/h
• Auto-regeneration process with user-defined parameters.
• Two Built-in Regeneration Temperature Controller.

• (Optional) activated carbon (5.2kg) organic solvent filter

• Two Siemens PLC control systems, each equipped with 6" touchscreen display for each glovebox chamber
• Water concentration: 0 - 1000 ppm
• Oxygen concentration: 0 - 1000 ppm
• Auto pressure control -5 - +8 mbar

• Two universal power extensions are included.
• power extension board with 5 outlets, 15A max.
• 110VAC or 220VAC depending on the input source

• 5 KF40 ports for each chamber, 10 in total.

• Two 240L/m Heavy Duty Double Stage Rotary Vane Pump for gas exhaust are included
• Vacuum rate: 7.8 cfm
• Lowest pressure: 0.4pa

• Eight pairs of Butyl gloves (four pairs of gloves per chamber), enabling two-sided operation.
• Protection against toxic materials
• 8" Dia. 32" Long

• The inside door of the antechamber can be opened automatically
• Heating Antechamber: 200°C with a dimension of Ø360×600mm (L)
•

•

Pneumatic Swing Door

(Optional)

• Pneumatic swing doors and motorized sample tray ready for automated sample handling.

Refrigerator Attachment

(optional)

• Freezer or refrigerator attachment, -20°C
•

• Gloves are consumable items and are not covered under warranty
• NRTL or CSA certification is available upon request at the extra cost
