Dual Chamber Glove Box with Gas Purification System (H2O & O2<1ppm)-VGB-6-II-LD
HomeStore

Dual Chamber Glove Box with Gas Purification System (H2O & O2<1ppm)-VGB-6-II-LD

Dual Chamber Glove Box with Gas Purification System (H2O & O2<1ppm)-VGB-6-II-LD

VGB6IILD is a dual stainless steel glove box designed for experiments in a clean and inert condition. It comes with pressure control, auto gas purging, gas circulation, auto regeneration, leak rate test, and auto pump-purge cycles for the main antechamber. The purification cylinder is filled with BASF antioxidant materials and UOP molecular sieves in order to achieve water and oxygen concentrations less than 1ppm. With the touchscreen panel, all the information, operation, and data log can be visualize in an ease. VGB-6-II is widely used in preparing nanomaterials, Li-ion battery materials, catalysts, and metalorganics. Glovebox with heat able antechamber and refrigerator is optional.

SPECIFICATIONS

Power
  • 120 VAC, 20 A or 208-240VAC, 16 A
  • 50/60Hz, Single Phase
  • 1.7 KVA
Glovebox Chamber
  • Hinged front window panels (tempered glass, 8 mm thick)
  • Dimensions: 2400mm(L) x 800mm(W) x 930mm(H)
  • Case Material: Stainless Steel 304
  • Built-in LED lamps
  • Two shelves, 300mm L x 250mm W x 300mm H
  • Two pieces of HEPA filters for particle size >0.3 μm
Antechambers
  • Large Antechamber Dimensions: 360mm(Dia.) x 600mm(L)
  • Small Antechamber Dimensions (for tools): 150mm(Dia.) x 300mm(L)
  • Max. vacuum level: 0.75 torr
Purification Level
  • Water concentration: <1 ppm (20°C, 1 atm)
  • Oxygen concentration: <1 ppm (20°C, 1 atm)
Working Gas
  • Inert gas: N2, Ar, He
  • Regenerating gas: non-flammable hydrogen blended gas (5%H2+95%N2 or <3% H2 balanced w/ Ar)
Gas Purification System
  • Automatically purging function for reducing O2 & H2O < 100ppm before cycling.
  • Pressure control system is built in to keep the pressure at a constant level.
  • Purification Cylinder: BASF antioxidant materials and UOP water adsorbent materials.
  • Moisture removal capacity: 2 kg
  • Oxygen removal capacity: 60L
  • Stainless steel pipe connection
  • Blower: Flow Rate: up to 90m³/h
  • Auto regeneration process with user defined parameters.
  • Built-in Regeneration Temperature Controller.
Filter System (optional)
  • (Optional) activated carbon (5.2kg) organic solvent filter
Control system
  • Siemens PLC control system with 6" touchscreen display
  • Water concentration: 0 - 1000 ppm
  • Oxygen concentration: 0 - 1000 ppm
  • Auto pressure control -5 - +8 mbar
Feedthroughs
  • One universal power extension is included.
    • power extension board with 5 outlets, 15A max.
    • 110VAC or 220VAC depending on the input source
Ports
  • 5 KF40 ports for each chamber, 10 in total.
Vacuum Pump
  • 240L/m Heavy Duty Double Stage Rotary Vane Pump for gas exhaust
  • Vacuum rate: 7.8 cfm
  • Lowest pressure: 0.4pa
Gloves
  • Two pairs of Butyl glove
  • Protection against toxic materials
  • 8" Dia. 32" Long
Heating Antechamber (optional)
  • The inside door of the antechamber can be opened automatically
  • Heating Antechamber: 200°C with a dimension of Ø360×600mm (L)

  •

Pneumatic Swing Door

(Optional)
  • Pneumatic swing doors and motorized sample tray ready for automated sample handling.

Refrigerator Attachment

(optional)
  • Freezer or refrigerator attachment, -20°C

Dual Antechambers

Dual Circulation System

(Optional)
  • Two large antechambers on both sides
  • Central swing door for chamber isolation
  • Two sets of sensor
  • Two sets of circulation system

 Compliance
  • Gloves are consumable items and are not covered under warranty
  • NRTL or CSA certification is available upon request at the extra cost



Application Notes
  • The use of corrosive gasses is prohibited. Damage may occur for the water and oxygen sensors.
  • Corrosive liquid, such as LiPF6, must be remain sealed in a container inside the glove box.
  • MTI is welcome to customized designs for an integration of the glove box and other equipment





$49,998.00
Dual Chamber Glove Box with Gas Purification System (H2O & O2<1ppm)-VGB-6-II-LD—
$49,998.00

More Images

Dual Chamber Glove Box with Gas Purification System (H2O & O2<1ppm)-VGB-6-II-LD - Image 2

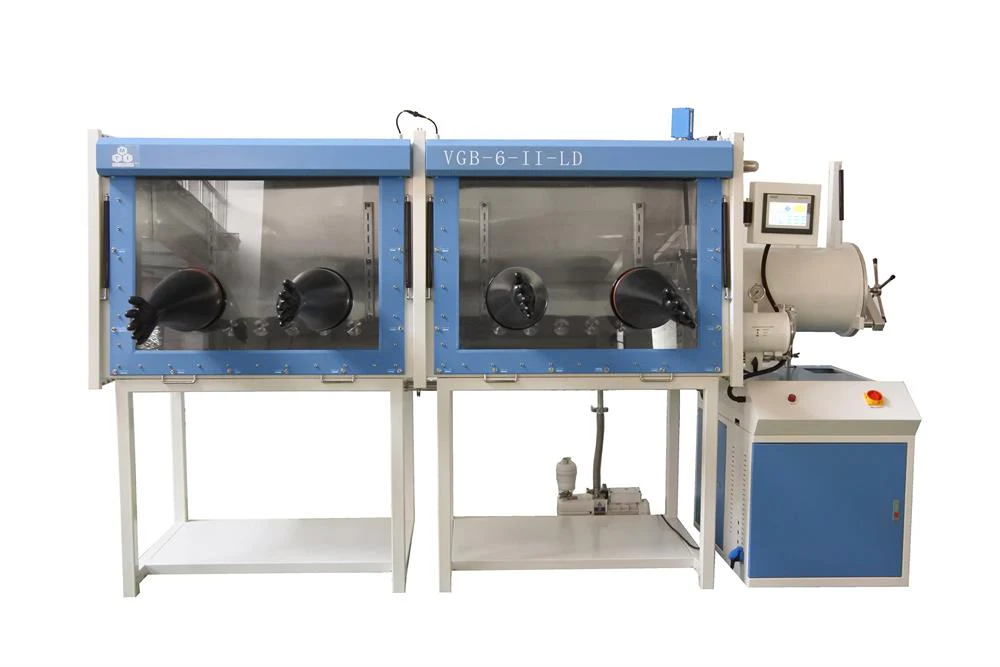

Dual Chamber Glove Box with Gas Purification System (H2O & O2<1ppm)-VGB-6-II-LD - Image 3
