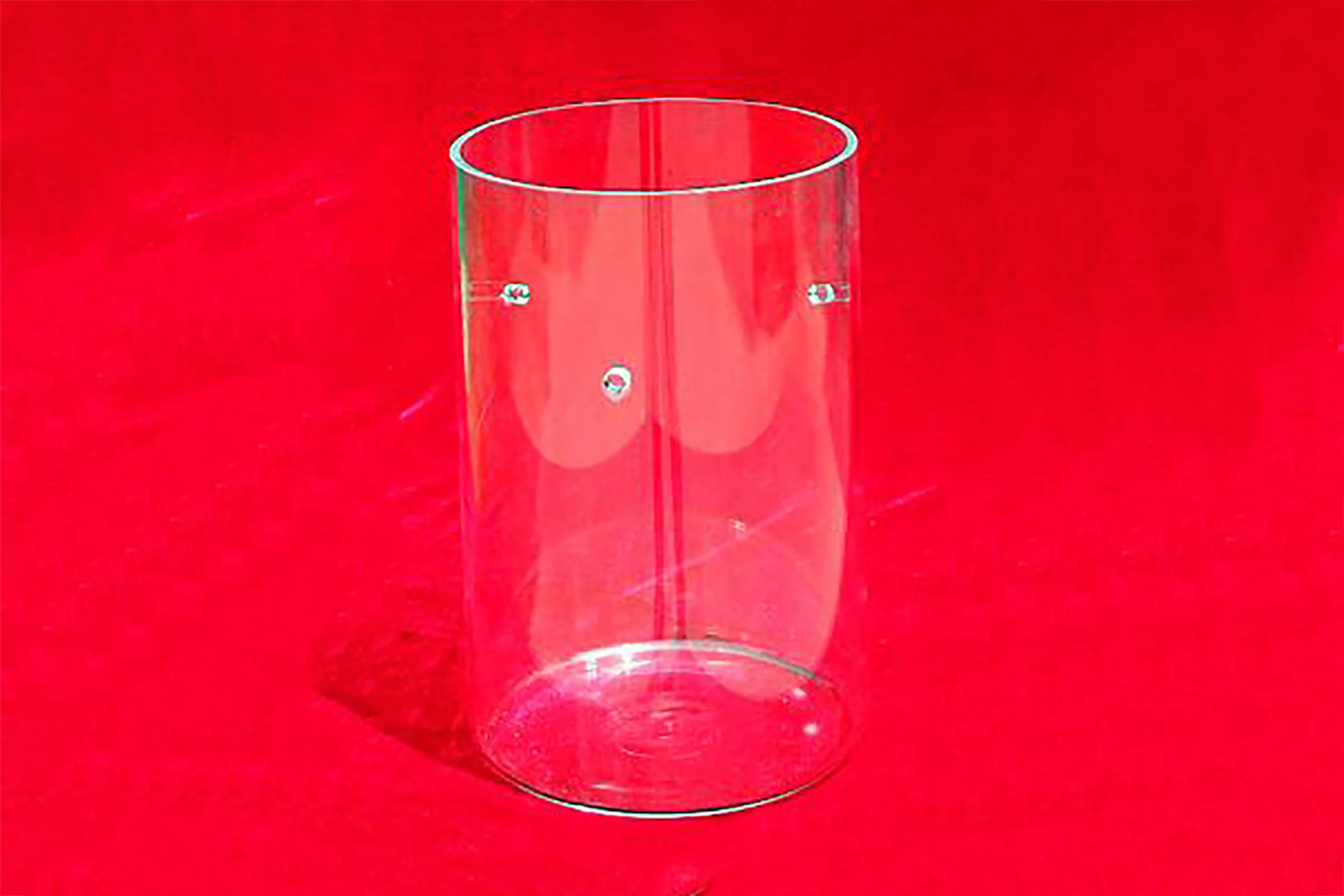

8" O.D x 7.5" I.D x 16.7" H One end Closed, Quartz, Tube for VBF-1200X-V9 -TQH200D425

MTI provides the high-purity half open Quartz tube as a replacement part for 1100C Max Vertical Vacuum Furnace-VBF-1200X-V9. It can be used at operating temperatures up to 1200ºC.

Also, MTI provides optional GE-grade half open Quartz Tube with higher purity and oxygen surface terminated for low thermal expansion and withstand high temperature.

Purchase Notes: Please make sure the specification of the tube meets your needs before making a purchase. We no longer accept the return of any tubes due to the fragile nature of the materials (since Nov10, 2016). All tubes are not refundable, not exchangable, nor covered under the warranty (Consumable). We apologize for the inconvenience. Please check the package for damages before accepting the delivery. For more information upon arrival, please contact us.

SPECIFICATIONS

O.D	203mm ±0.5mm (8")
I.D	192mm ±0.5mm (7.5")
Tube Length	425mm (16.7")
Max. Operating Temperature	1100ºC under vacuum 1200ºC in atmorshpere
Application Notes	In order to get a longer tube service life, Please use a quartz or alumina crucible to carry the sample, instead of loading the sample directly inside the tube, please click the picture below to choose one crucible boat:



Inspect your delivery:
Please check the package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.
