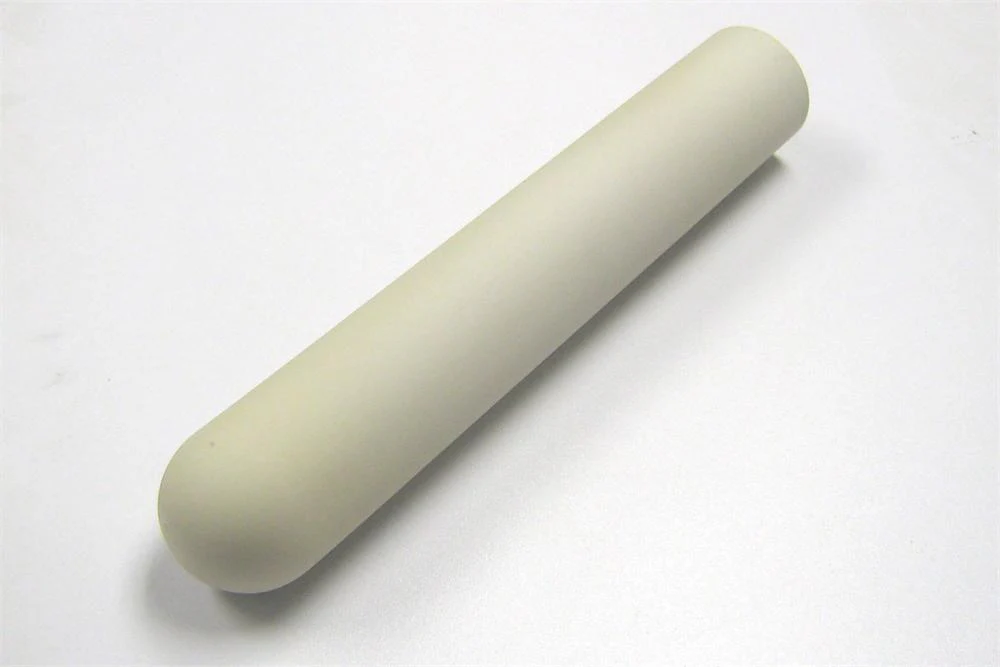

2'' O.Dx1.75''I.Dx12''L Mullite Round Tubes (One End Closed)- TM-50D-12L-LD
HomeStore

2'' O.Dx1.75''I.Dx12''L Mullite Round Tubes (One End Closed)- TM-50D-12L-LD

2'' O.Dx1.75''I.Dx12''L Mullite Round Tubes (One End Closed)- TM-50D-12L-LD



2" O.D Mullite Tube is made in the USA with 60% Al2O3 +38% SiO2 material. Mullite tube can be used up to 1650 oC in both oxidizing and reduce atmospheres, which has better thermo-conductivity and provides better temperature uniformity compared with quartz tube. Besides, the physical and thermal properties of mullite allow operation under fast cooling/heating.

  • O.D:      2 " +/- 0.05''                   (50.8 mm)

  • I.D:        1.75'' +/- 0.05''                (44.45 mm)

  • Length:  12"                                (304.8 mm)

  • Max. Working Temperature:         1500oC  (without vacuum)
    Continuous Working Temperature: 1450 oC



  • In order get longer tube service life, Please use quartz or alumina crucible to carry sample, instead loading sample directly inside tube, please click picture below to choose one crucible boat:

Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )

Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

$153.30

Original: $438.00

-65%
2'' O.Dx1.75''I.Dx12''L Mullite Round Tubes (One End Closed)- TM-50D-12L-LD—

$438.00

$153.30

2'' O.Dx1.75''I.Dx12''L Mullite Round Tubes (One End Closed)- TM-50D-12L-LD



2" O.D Mullite Tube is made in the USA with 60% Al2O3 +38% SiO2 material. Mullite tube can be used up to 1650 oC in both oxidizing and reduce atmospheres, which has better thermo-conductivity and provides better temperature uniformity compared with quartz tube. Besides, the physical and thermal properties of mullite allow operation under fast cooling/heating.

  • O.D:      2 " +/- 0.05''                   (50.8 mm)

  • I.D:        1.75'' +/- 0.05''                (44.45 mm)

  • Length:  12"                                (304.8 mm)

  • Max. Working Temperature:         1500oC  (without vacuum)
    Continuous Working Temperature: 1450 oC



  • In order get longer tube service life, Please use quartz or alumina crucible to carry sample, instead loading sample directly inside tube, please click picture below to choose one crucible boat:

Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )

Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

Product Information

Shipping & Returns

Description



2" O.D Mullite Tube is made in the USA with 60% Al2O3 +38% SiO2 material. Mullite tube can be used up to 1650 oC in both oxidizing and reduce atmospheres, which has better thermo-conductivity and provides better temperature uniformity compared with quartz tube. Besides, the physical and thermal properties of mullite allow operation under fast cooling/heating.

  • O.D:      2 " +/- 0.05''                   (50.8 mm)

  • I.D:        1.75'' +/- 0.05''                (44.45 mm)

  • Length:  12"                                (304.8 mm)

  • Max. Working Temperature:         1500oC  (without vacuum)
    Continuous Working Temperature: 1450 oC



  • In order get longer tube service life, Please use quartz or alumina crucible to carry sample, instead loading sample directly inside tube, please click picture below to choose one crucible boat:

Ceramic Crucibles ( Alumina, Quartz and Zirconia etc )

Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.
