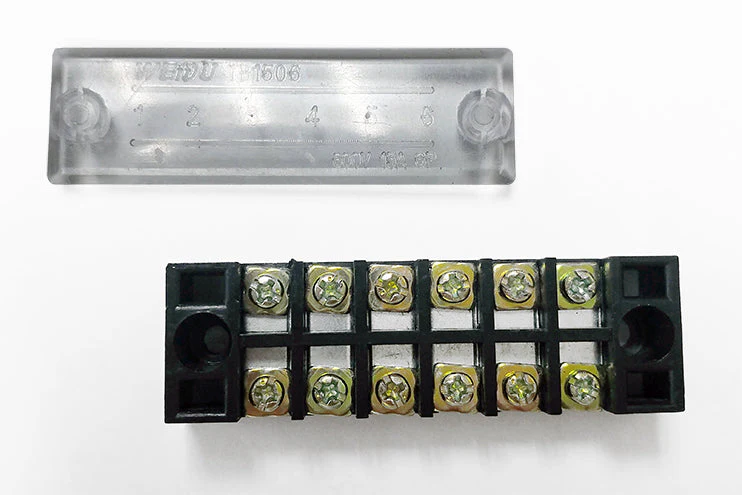

Terminal Block - MTI-TB-1506
Terminal block for most of our compact / desktop furnace.
NO UL certificaion
NO UL certificaion
| Rated Voltage | 600V |
| Rated Current | 15A |
| Size | 73.5*22.0*17.5mm (L*W*H) |
| Distance between the center of 2 mounting holesĀ | 61.5mm |
| Wire Size | 2.0 mm2Ā / AWG 14 |
| Screw Size | M3 |
| Install Type | Panel Mounted. Din Rail is not required |
| Pole | 6 Poles |
$3.50
Original: $10.00
-65%Terminal Block - MTI-TB-1506ā
$10.00
$3.50Terminal Block - MTI-TB-1506
Terminal block for most of our compact / desktop furnace.
NO UL certificaion
NO UL certificaion
| Rated Voltage | 600V |
| Rated Current | 15A |
| Size | 73.5*22.0*17.5mm (L*W*H) |
| Distance between the center of 2 mounting holesĀ | 61.5mm |
| Wire Size | 2.0 mm2Ā / AWG 14 |
| Screw Size | M3 |
| Install Type | Panel Mounted. Din Rail is not required |
| Pole | 6 Poles |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Terminal block for most of our compact / desktop furnace.
NO UL certificaion
NO UL certificaion
| Rated Voltage | 600V |
| Rated Current | 15A |
| Size | 73.5*22.0*17.5mm (L*W*H) |
| Distance between the center of 2 mounting holesĀ | 61.5mm |
| Wire Size | 2.0 mm2Ā / AWG 14 |
| Screw Size | M3 |
| Install Type | Panel Mounted. Din Rail is not required |
| Pole | 6 Poles |
