Thermocouple: K type 1/4"OD x 12" L with Exposed Head and Male Plug for Faster Response - TCK12SDT
HomeStore

Thermocouple: K type 1/4"OD x 12" L with Exposed Head and Male Plug for Faster Response - TCK12SDT

Thermocouple: K type 1/4"OD x 12" L with Exposed Head and Male Plug for Faster Response - TCK12SDT

Features:
  • Super Accurate, Super Stable, Super Value
  • For Use with Temperatures Up to 1200 oC (2192 o F) for OTF-1200X-RTP
  • Exposed Thermocouple head for faster response time
  • Excellent Long Term Stability at High Temperature
  • Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
  • Detective probe make temperature  measure much more precise measurement.
  • Excellent Oxidation, Carburization and Chlorination Resistance
  • Made with materials of Special Limits of Error.  Perfect for calibrating MTI tube furnaces using a precision temperature calibrator (matched with male plug; related product below )
Specifications
  • Length:                           12"
  • Diameter of sheath:         1/4" diameter
  • Positive Material:             Ni-Cr
  • Negative:                        Ni-Al
    Highest Temperature:     1200  oC
    Material:           Ni-Al
  • Lowest Temperature:     -200 oC
1/4" thermocouple can be inserted into processing tube via flange
and calibrating tube furnace temperature under vacuum *( click picture to order the flange)
Application Notes
  • If necessary, please check out K type thermocouple extension wire with mini male plug.
  • There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
Warning
  • Chromel/Alumel is vulnerable to sulfidic corrosion which can result in a thermocouple failure. Apply a thin layer of Zirconia coating will protect the TC from corrosion and thus extend its service life. Re-apply the coating if there is a sign of layer flaking/peeling after the process. Please click the picture in below to order the product.
  •


$27.99

Original: $79.98

-65%
Thermocouple: K type 1/4"OD x 12" L with Exposed Head and Male Plug for Faster Response - TCK12SDT—

$79.98

$27.99

More Images

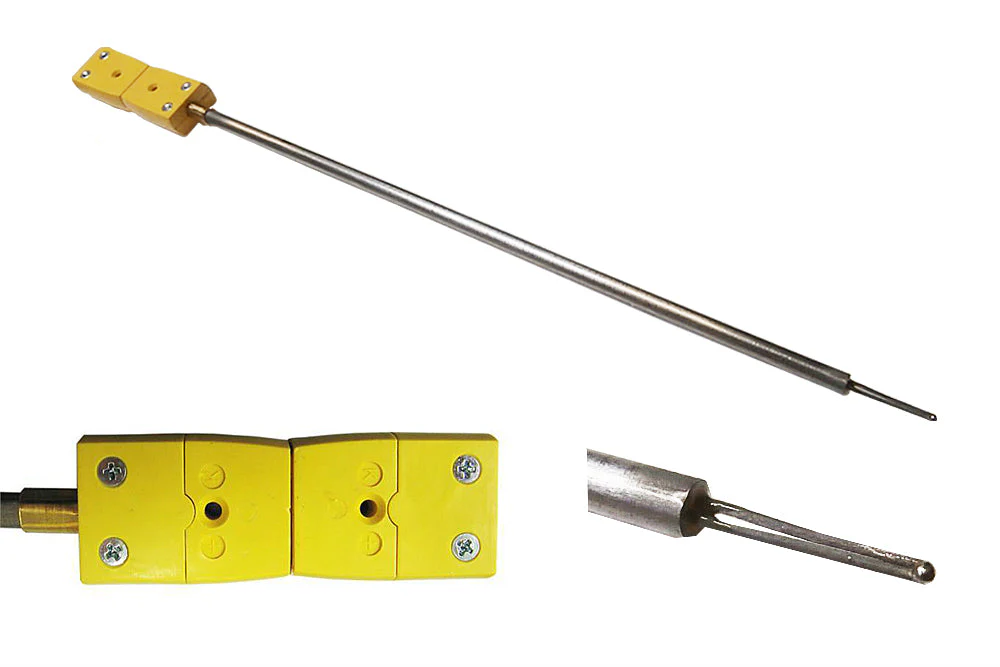

Thermocouple: K type 1/4"OD x 12" L with Exposed Head and Male Plug for Faster Response - TCK12SDT - Image 2
Thermocouple: K type 1/4"OD x 12" L with Exposed Head and Male Plug for Faster Response - TCK12SDT - Image 3

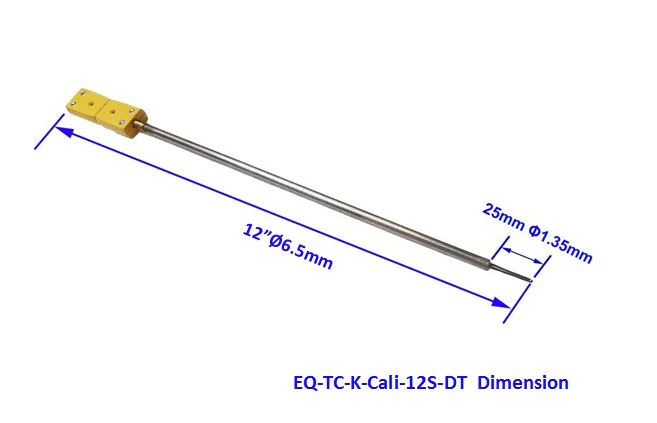

Thermocouple: K type 1/4"OD x 12" L with Exposed Head and Male Plug for Faster Response - TCK12SDT - Image 4

Thermocouple: K type 1/4"OD x 12" L with Exposed Head and Male Plug for Faster Response - TCK12SDT

Features:
  • Super Accurate, Super Stable, Super Value
  • For Use with Temperatures Up to 1200 oC (2192 o F) for OTF-1200X-RTP
  • Exposed Thermocouple head for faster response time
  • Excellent Long Term Stability at High Temperature
  • Nickel-Chrome Based Super-alloy Sheathing Provides Excellent High Temperature Performance
  • Detective probe make temperature  measure much more precise measurement.
  • Excellent Oxidation, Carburization and Chlorination Resistance
  • Made with materials of Special Limits of Error.  Perfect for calibrating MTI tube furnaces using a precision temperature calibrator (matched with male plug; related product below )
Specifications
  • Length:                           12"
  • Diameter of sheath:         1/4" diameter
  • Positive Material:             Ni-Cr
  • Negative:                        Ni-Al
    Highest Temperature:     1200  oC
    Material:           Ni-Al
  • Lowest Temperature:     -200 oC
1/4" thermocouple can be inserted into processing tube via flange
and calibrating tube furnace temperature under vacuum *( click picture to order the flange)
Application Notes
  • If necessary, please check out K type thermocouple extension wire with mini male plug.
  • There are 2 polarities for K type thermocouple: positive and negative. Please check polarity of K type thermocouple before use. Wrong polarity may cause temperature measuring error.
  • It is also easy to test the polarity of K type thermocouples. The negative wire is MORE magnetic than the positive wire. Just put a magnet up to each wire. One will be more magnetic than the other.
Warning
  • Chromel/Alumel is vulnerable to sulfidic corrosion which can result in a thermocouple failure. Apply a thin layer of Zirconia coating will protect the TC from corrosion and thus extend its service life. Re-apply the coating if there is a sign of layer flaking/peeling after the process. Please click the picture in below to order the product.
  •
