Swing / Rotary Sample Fixture and Rotation Control System for STX-202 Precision Diamond Wire Saw - S202SR

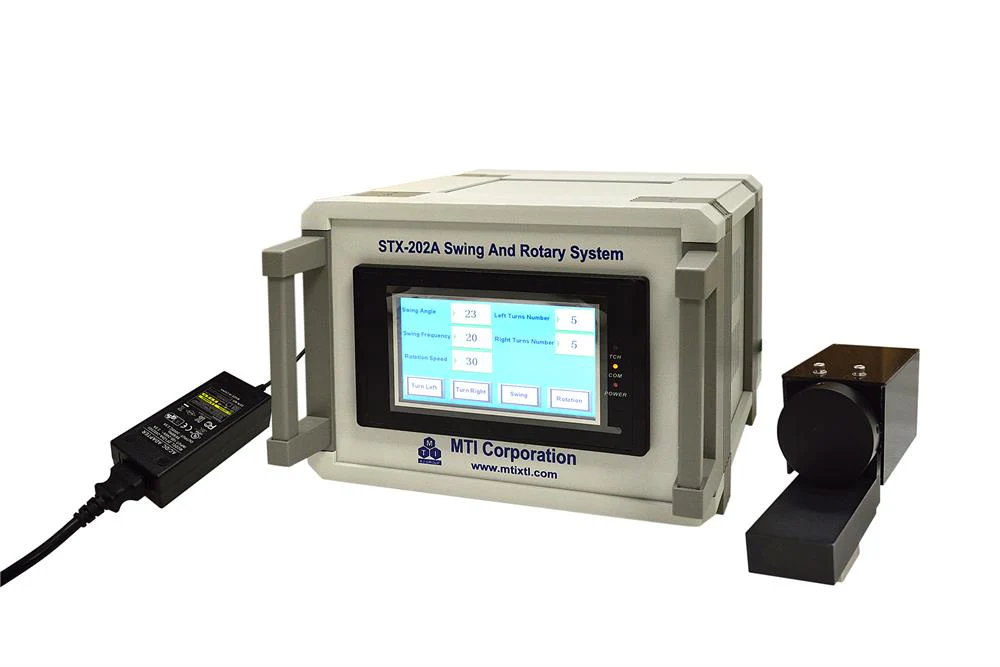

STX-202P-SR is a premium add-on for STX-202A & STX-202P Precision Diamond Wire Saw. It is the combination of Swing / Rotary Sample Fixture and Rotation Control System. The Sample Fixture promotes higher efficiency and better cut surface quality. The independent Rotation Control System allows customization of its parameter settings such as swing frequency/ angle (±23°, up to 20 swings/min), rotating speed and rounds (30rpm max.) Higher cutting surface quality can be expected by swinging or rotating the specimen throughout the cutting process.

Specification:

Input Voltage	DC24V (110/220VAC to 24VDC power adaptor included)
Swing Angle	±23°
Swing Frequency	1 - 20 swings/min
Number of Turns	1 - 999 turns (for both clockwise and counterclockwise)
Rotating Speed	1 -30rpm
Max. Cutting Diameter	Ø50mm
Sample Plate Dia.	Ø48mm
Controller Interface
Dimensions	Sample Fixture: 140mm(L) x 54mm(W) x 90mm(H) Control System: 205mm(L) x 250mm(W) x 160mm(H)
Weight	Sample Fixture: 1.65lbs Control System: 5.85lbs
Operation Video
