SS Mixing Container with Blade (Multiple Volumes) for MSK-SFM-16

Feature:

• 304 stainless steel vacuum mixing jar with mixing blade for MSK-SFM-16 vacuum mixer.
• Dual helical ribbon mixing blades are built on the lid of the mixing container



Note:

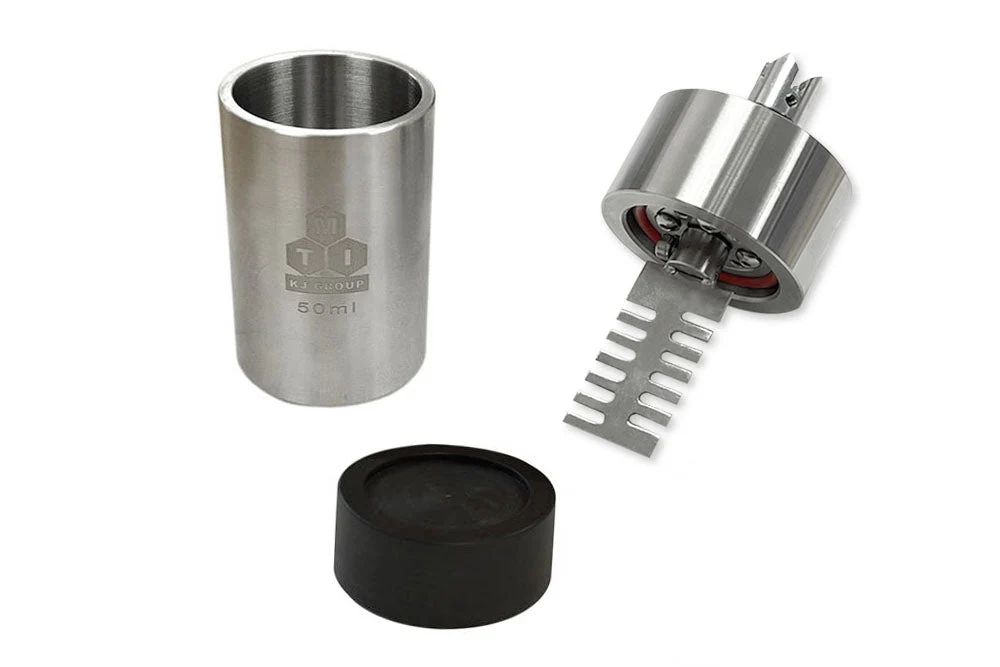

• In the standard shipment, a bottom cushion pad is included to provide additional height for 50mL mixing container only.



Application Note:

• Slurry volume is suggested to be in the range of 20%-70% of container volume. If the experimental slurry amount is too small, please contact MTI before purchase.



Dimension Chart:

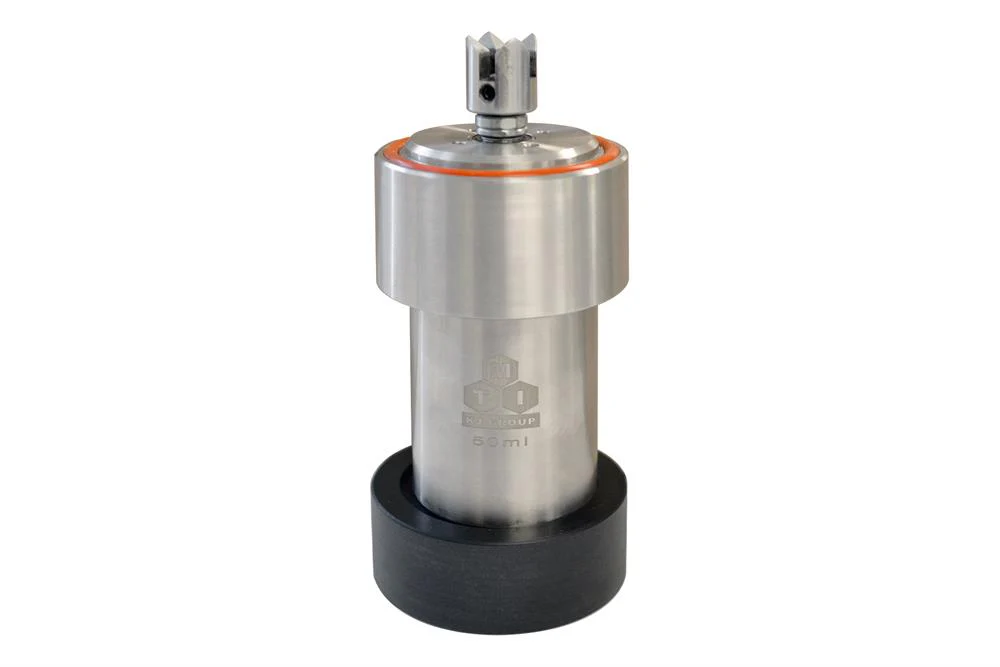

MJ16S50

Volume	50 mL
Total Height	155 mm
Height (without cushion)	130 mm
Container Height (without cushion and lid)	68 mm
Jar O.D	45 mm
Jar I.D	39 mm
Stirring Blade Height	48 mm
Stirring Blade Width	26 mm
Lid O.D	60 mm
Cushion O.D	62.5 mm
Dimensions

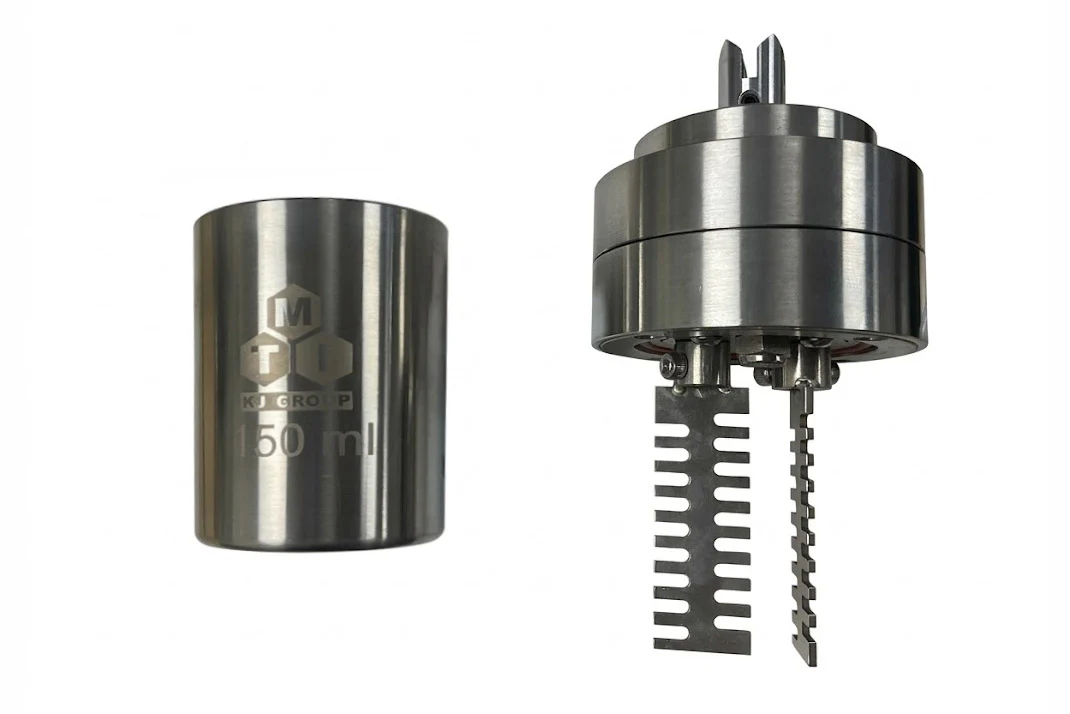

MJ16S150

Volume	150 mL
O.D	58 mm
I.D	51 mm
Depth	75.5 mm
Total Height	160 mm
Upper Rim O.D	80 mm, 60 mm
Dimensions

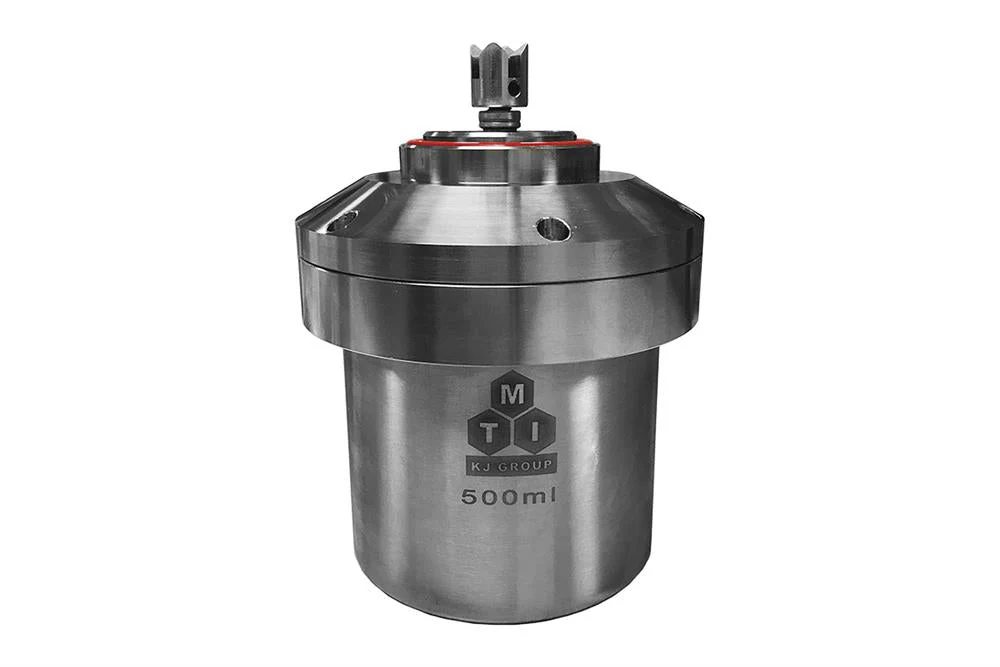

MJ16S500

Volume	500 mL
I.D	93 mm
Depth	83 mm
