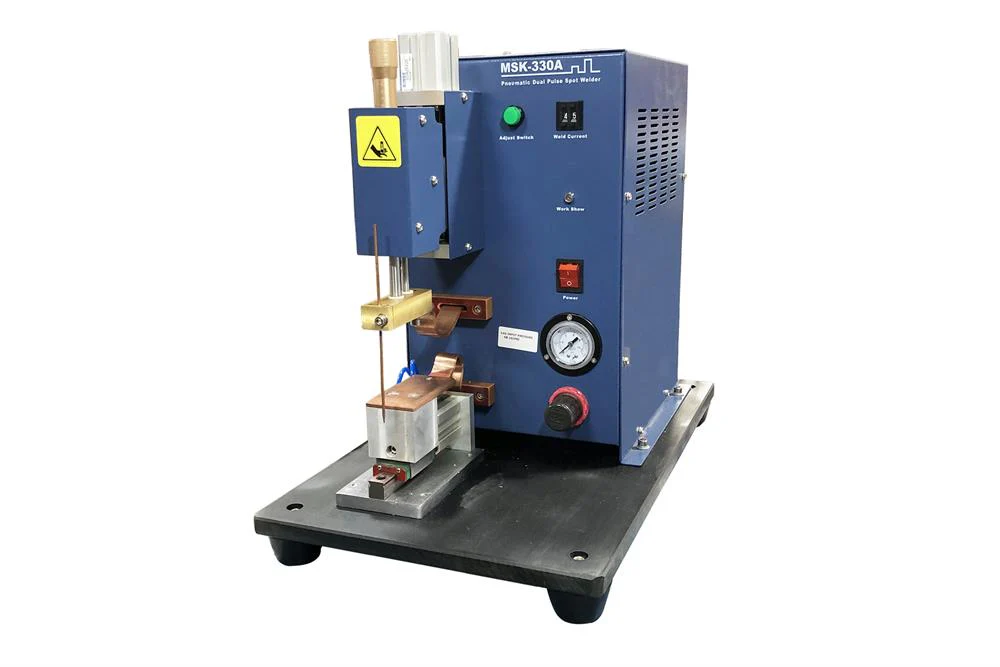

Single Point Pneumatic Spot Welder for Welding Bottom Tap of Cylinder Cell - MSK-330A

MSK-330A Precise Pneumatic Single Point Welding Machine is specifically designed for professional Li-ion Battery Research. It is mainly used for welding the cylinder core's negative terminal (Nickel tab) to the bottom of the cylinder case. A Diameter 2mm x 180mm length welding needle is easily inserted into the cylinder case to weld at the bottom. This machine is controlled by the microcontroller, which is very easy to operate and can provide stable performance.

Specification:

Structure
Power Supply	220-240V, Single Phase 50/60Hz
Max. Power	3 KW
Air Pressure Range	0.5 - 0.8 Mpa ( air compressor is required, please order the related product below ) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.  pic1  pic2
Welding Current	0-99A
Welding Power	10 KW
Welding Thickness	0.03 - 0.25mm
Operation Temperature	-20 - 40
Controller	Controlled by the microcontroller, achieve mono-pulse, di-pulse, and multiple-pulse welding
Pressure	The pressure applied on the welding needle can be adjusted independently and is easy to operate
Design	Unique Photoelectric switch design Good appearance, small size and light weight Welding spot looks beautiful, free spark, stable welding current
Weight	45 kg (100 lbs)
Product Dimensions	305mm (L) x 505mm (W) x 490mm (H)
Operation Video
Application Notes	Purchase replacement electrode here.
