Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680

Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680

Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680

MSK4680 is a compact manually-operated machine for disassembling cylindrical cases. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes.

SPECIFICATIONS:

Supply Voltage	Shaft: DC 12V, 60W Cutter: DC 18V, 27W (110~240VAC to DC power adapters are included)
Slicing Motor Speed	5000-16000 rpm
Chuck	Spin speed: 50-3000 rpm Workpiece Diameter: Φ46 mm Workpiece length: 100 mm
Cutting Dics	2" Metal/Inox cutting disc for 4680 and 46110 cylindrical case 3" Fiber cutting disc for 18650, 21700, 26650 cylindrical cases The standard package includes 2 pcs of 2" cutting discs and 2 pcs of 3" cutting discs. Replacement discs are available for purchase.
Cylindrical Case Holder	Compactible with 18650, 21700, 26650, 32650, and 4680, etc cells. Standard pakcage includes a set of cylindrical case holders for 18650, 21700, 26650 and 4680 - 46110. 4 pcs per set (different diameters) Replacement cylindrical case holders are available for purchase.
Protective Cover	A protective cover with a controlled gas inlet is included for protection. Note: If the cell is cut and disassembled in air, it is recommended to feed inert gas through the gas inlet to minimize the sparks.
Compatibility	MSK4680 is compatible with the glove box, its compact size allows it to be transferred into the glove box via the large antechamber. This machine is 12VDC device with UL certified power adaptor, so no NRTL certification is required
Accessories	12 pcs Fiberglass Reinforced blades are included. Die set for cutting 18650, 21700, and 4680 cells are included Additional blades are available upon request.

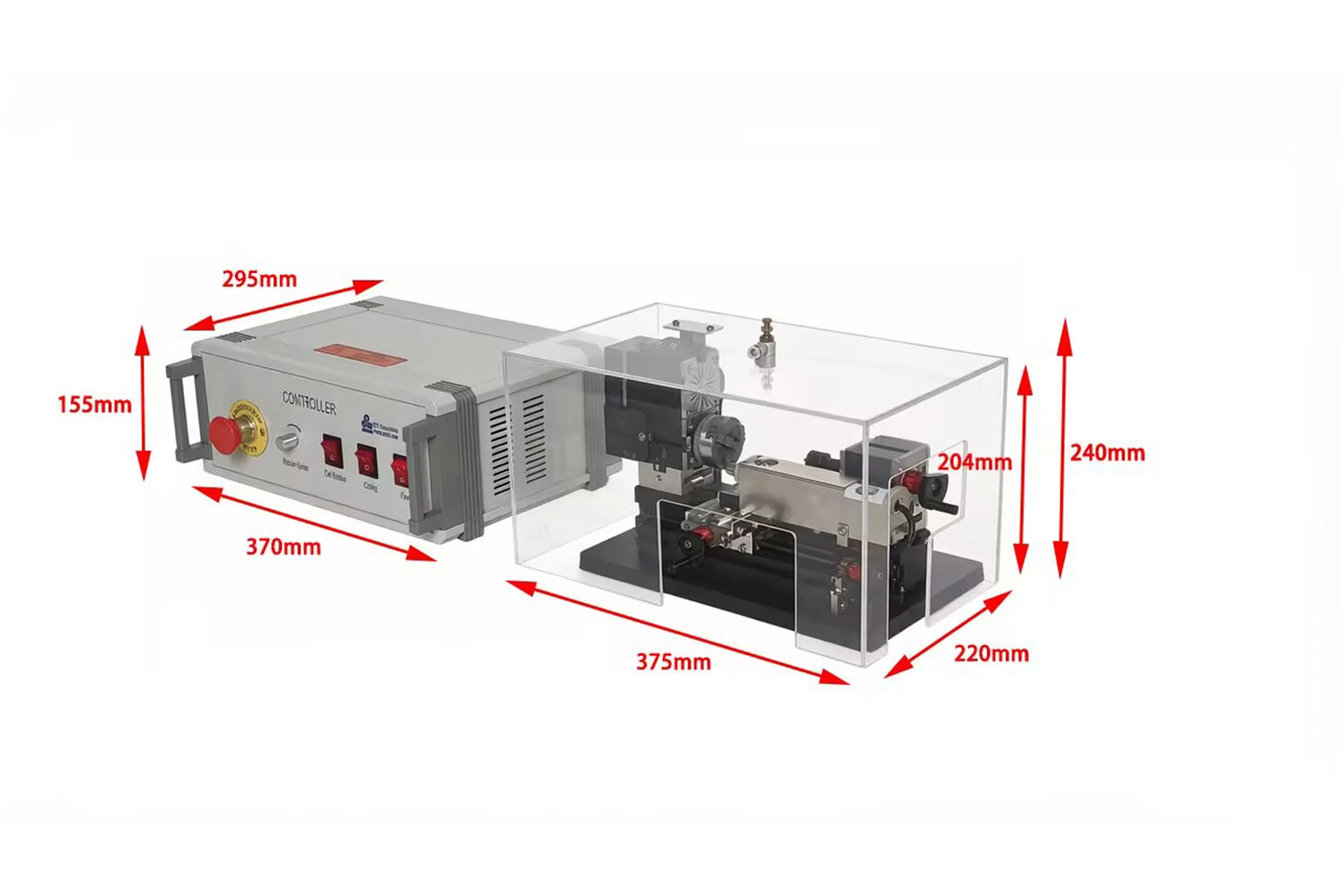

Dimension	Cutting machine: 375 mm L x220 mm Wx240 mm H Control Box: 370 mm L x 295 mm W x 155 mm H
Weight	10 Kg
Attention	Considering the best interest of the blade's service life, low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.

$1,924.30

Original: $5,498.00

-65%

Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680—

$5,498.00

$1,924.30

More Images

Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680 - Image 2

Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680 - Image 3

Compact Disassembling Machine for 18650, 21700, 26650 and 4680 -46110 Cylindrical Cases - MSK-4680

MSK4680 is a compact manually-operated machine for disassembling cylindrical cases. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes.

SPECIFICATIONS:

Supply Voltage	Shaft: DC 12V, 60W Cutter: DC 18V, 27W (110~240VAC to DC power adapters are included)
Slicing Motor Speed	5000-16000 rpm
Chuck	Spin speed: 50-3000 rpm Workpiece Diameter: Φ46 mm Workpiece length: 100 mm
Cutting Dics	2" Metal/Inox cutting disc for 4680 and 46110 cylindrical case 3" Fiber cutting disc for 18650, 21700, 26650 cylindrical cases The standard package includes 2 pcs of 2" cutting discs and 2 pcs of 3" cutting discs. Replacement discs are available for purchase.
Cylindrical Case Holder	Compactible with 18650, 21700, 26650, 32650, and 4680, etc cells. Standard pakcage includes a set of cylindrical case holders for 18650, 21700, 26650 and 4680 - 46110. 4 pcs per set (different diameters) Replacement cylindrical case holders are available for purchase.
Protective Cover	A protective cover with a controlled gas inlet is included for protection. Note: If the cell is cut and disassembled in air, it is recommended to feed inert gas through the gas inlet to minimize the sparks.
Compatibility	MSK4680 is compatible with the glove box, its compact size allows it to be transferred into the glove box via the large antechamber. This machine is 12VDC device with UL certified power adaptor, so no NRTL certification is required
Accessories	12 pcs Fiberglass Reinforced blades are included. Die set for cutting 18650, 21700, and 4680 cells are included Additional blades are available upon request.
Dimension	Cutting machine: 375 mm L x220 mm Wx240 mm H Control Box: 370 mm L x 295 mm W x 155 mm H
Weight	10 Kg
Attention	Considering the best interest of the blade's service life, low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.

Product Information

Shipping & Returns

Description

MSK4680 is a compact manually-operated machine for disassembling cylindrical cases. The compact body design allows easy operation inside a glove box to preserve & prevent the electrolyte and active materials from contamination during case disassembling. Simple operation with a safety protection cover allows customers to master the disassembling procedure within 5 minutes.

SPECIFICATIONS:

Supply Voltage	Shaft: DC 12V, 60W Cutter: DC 18V, 27W (110~240VAC to DC power adapters are included)
Slicing Motor Speed	5000-16000 rpm
Chuck	Spin speed: 50-3000 rpm Workpiece Diameter: Φ46 mm Workpiece length: 100 mm
Cutting Dics	2" Metal/Inox cutting disc for 4680 and 46110 cylindrical case 3" Fiber cutting disc for 18650, 21700, 26650 cylindrical cases The standard package includes 2 pcs of 2" cutting discs and 2 pcs of 3" cutting discs. Replacement discs are available for purchase.
Cylindrical Case Holder	Compactible with 18650, 21700, 26650, 32650, and 4680, etc cells. Standard pakcage includes a set of cylindrical case holders for 18650, 21700, 26650 and 4680 - 46110. 4 pcs per set (different diameters) Replacement cylindrical case holders are available for purchase.
Protective Cover	A protective cover with a controlled gas inlet is included for protection. Note: If the cell is cut and disassembled in air, it is recommended to feed inert gas through the gas inlet to minimize the sparks.
Compatibility	MSK4680 is compatible with the glove box, its compact size allows it to be transferred into the glove box via the large antechamber. This machine is 12VDC device with UL certified power adaptor, so no NRTL certification is required
Accessories	12 pcs Fiberglass Reinforced blades are included. Die set for cutting 18650, 21700, and 4680 cells are included Additional blades are available upon request.
Dimension	Cutting machine: 375 mm L x220 mm Wx240 mm H Control Box: 370 mm L x 295 mm W x 155 mm H
Weight	10 Kg
Attention	Considering the best interest of the blade's service life, low feeding speed is suggested. Normally, 45 seconds is needed to cut through the cylinder casing.
