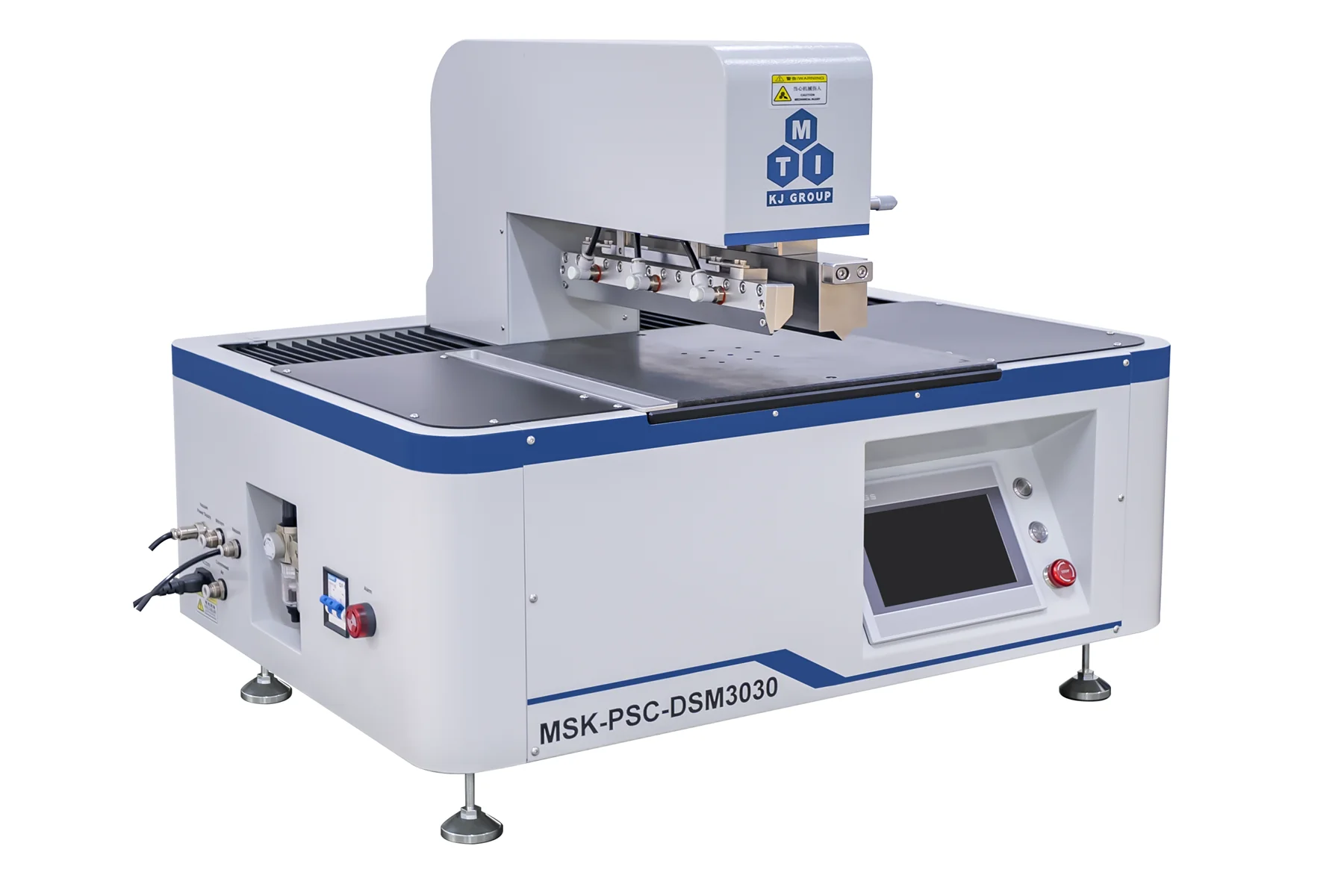

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030

MSK-PSC-DSM3030 is a precise sheet-to-sheet slot die coater with a 300 mm coating width and the super flat marble vacuum chunk is used for thin film coating with high uniformity. This coater is designed for ultrathin perovskite layer coating with diluted precursor solutions.
SPECIFICATIONS

Power	AC220V±10%, 50/60Hz, 800W (AC110V can be provided upon request)
Slot Die Head	300 mm width slot die head with 3 pcs shims with thickness 0.02, 0.04, 0.06 mm included (others thicknesses are available upon request) Different open-mouth width shims for various coating width are available upon request. Minimum coating thickness: 2 um (depending on slurry viscosity)
Substrate	Rigid substrates, such ITO, FTO. Max. thickness is <3.2 mm Flexible substrate, such as ITO or FTO on PET
Travel Speed & Length Coating	Travel Speed: Max. 100 mm/s adjustable via touch screen control panel Maximum coating area: 300 mm W x 300 mm L 5 um-100 um (wet film, depends on material property) Slurry feeding speed: 0.1-500 ul/s Syringe volume: 10 mL (other volumes can be provided upon request) Slurry viscosity: 1-1000 cps
Marble Vacuum Chuck	Surface accuracy is ≤5um Small hole diameter: 4 mm, four holes (in 60 mm * 60 mm) Vacuum pump is externally connected
Control Panel	4" color touchscreen panel to set coating speed, heating temperature, and syringe pump speed
Compliance	CE certified NRTL or CSA certification is available upon request at extra cost
Dimension	W800mm×D585mm×H660mm
Weight	128 kg

$24,499.30

Original: $69,998.00

-65%

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030—

$69,998.00

$24,499.30

More Images

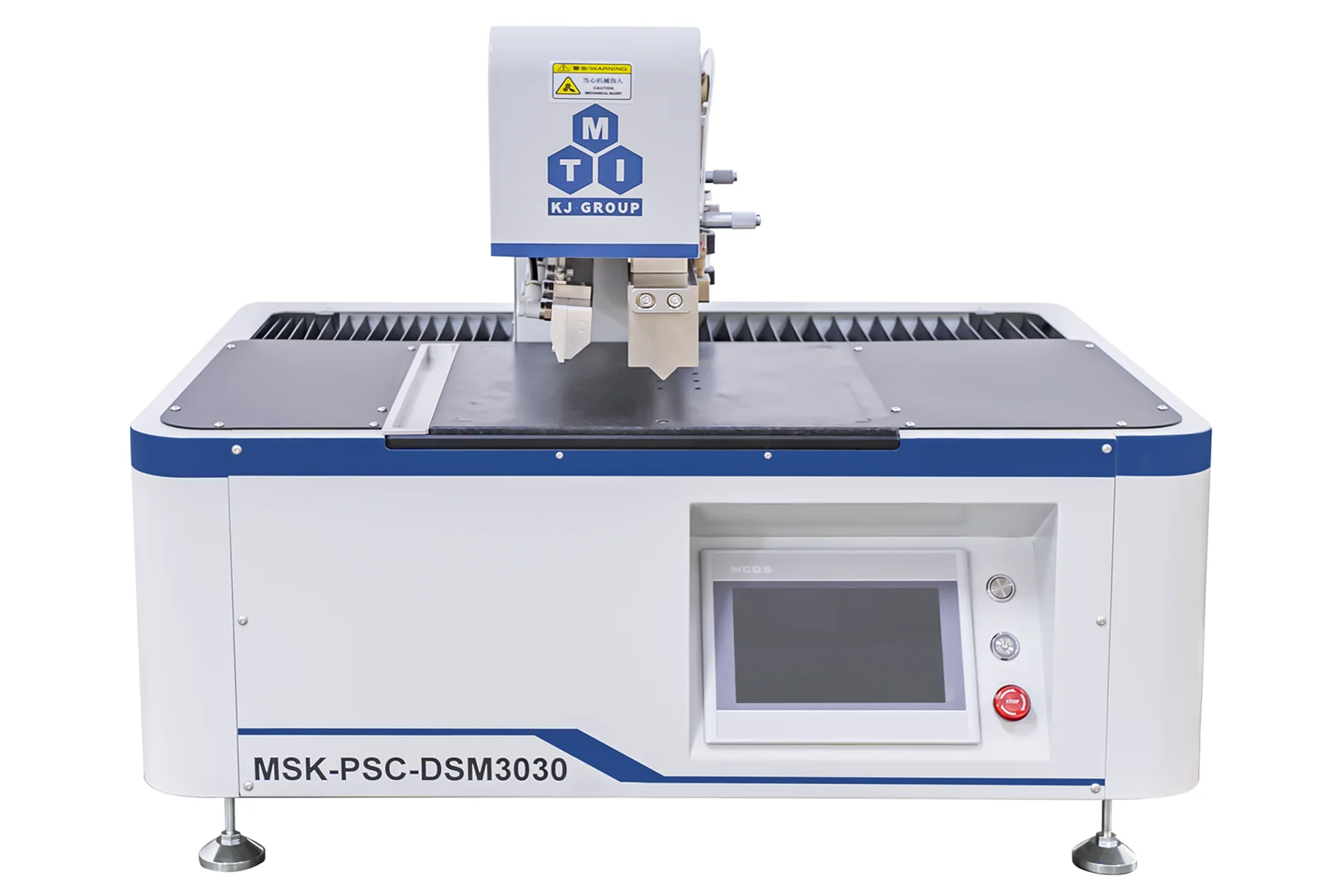

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030 - Image 2

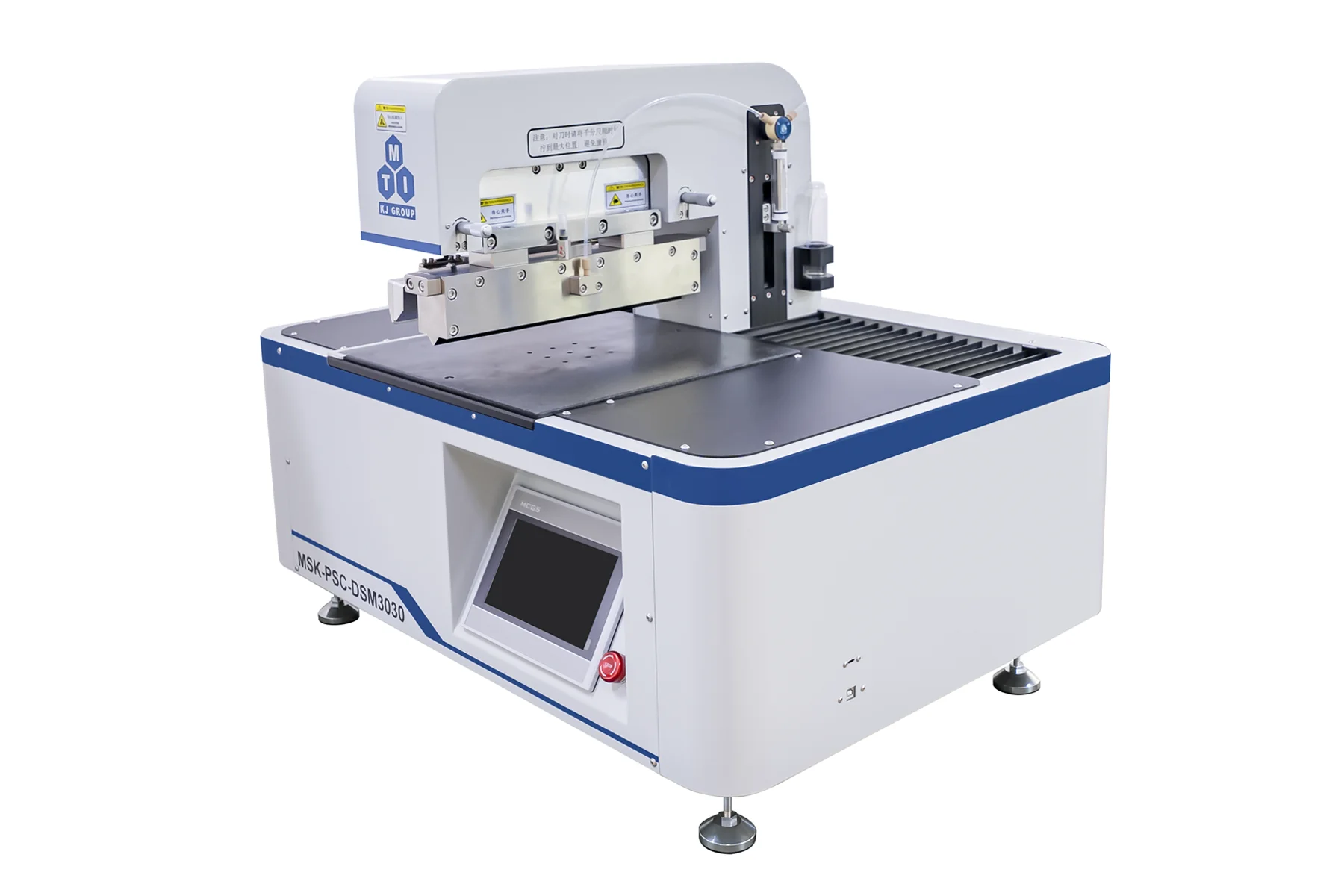

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030 - Image 3

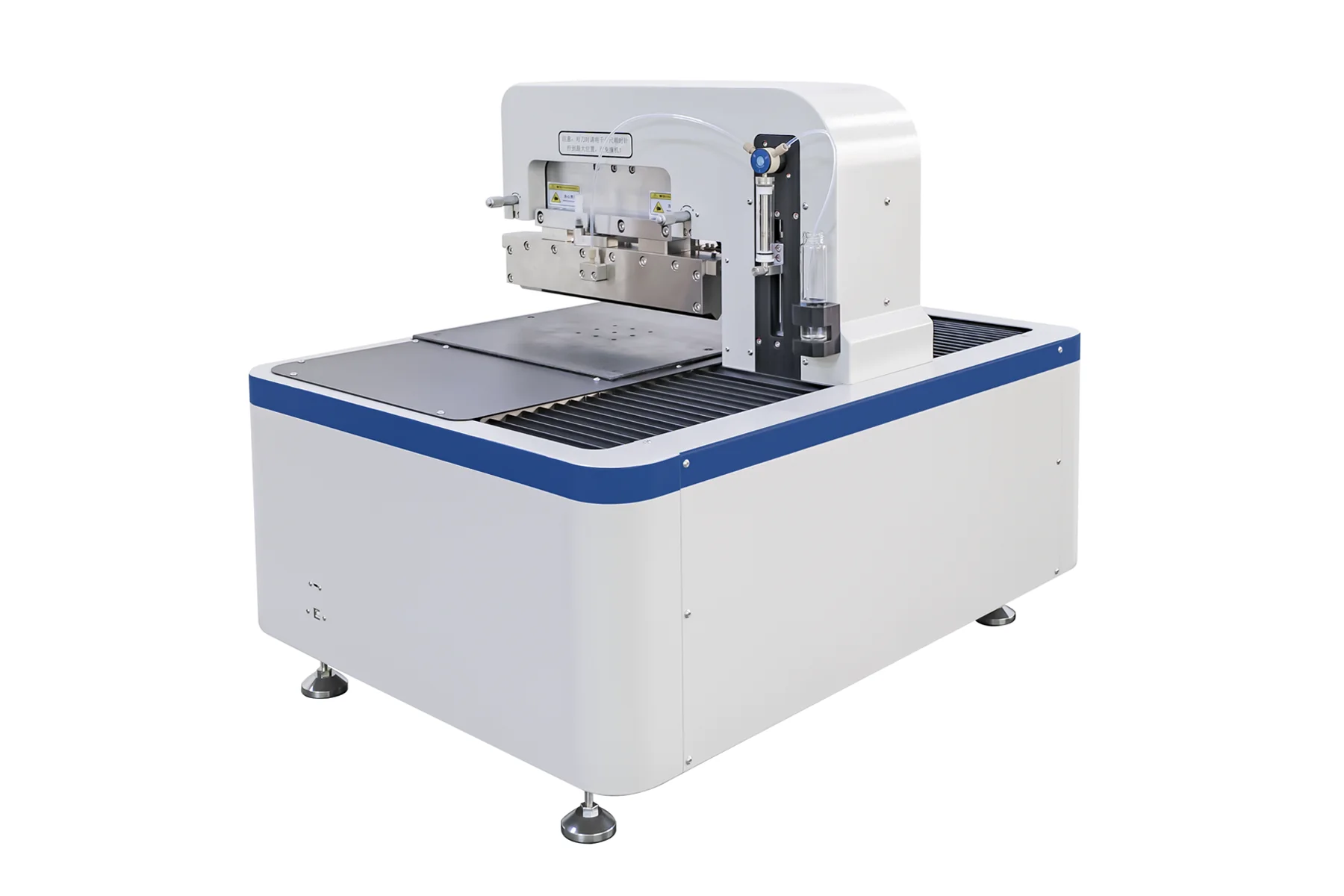

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030 - Image 4

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030 - Image 5

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (300 mm * 300 mm) and Air Knife for Perovskite Solar Cells - MSK-PSC-DSM3030

MSK-PSC-DSM3030 is a precise sheet-to-sheet slot die coater with a 300 mm coating width and the super flat marble vacuum chunk is used for thin film coating with high uniformity. This coater is designed for ultrathin perovskite layer coating with diluted precursor solutions.
SPECIFICATIONS

Power	AC220V±10%, 50/60Hz, 800W (AC110V can be provided upon request)
Slot Die Head	300 mm width slot die head with 3 pcs shims with thickness 0.02, 0.04, 0.06 mm included (others thicknesses are available upon request) Different open-mouth width shims for various coating width are available upon request. Minimum coating thickness: 2 um (depending on slurry viscosity)
Substrate	Rigid substrates, such ITO, FTO. Max. thickness is <3.2 mm Flexible substrate, such as ITO or FTO on PET
Travel Speed & Length Coating	Travel Speed: Max. 100 mm/s adjustable via touch screen control panel Maximum coating area: 300 mm W x 300 mm L 5 um-100 um (wet film, depends on material property) Slurry feeding speed: 0.1-500 ul/s Syringe volume: 10 mL (other volumes can be provided upon request) Slurry viscosity: 1-1000 cps
Marble Vacuum Chuck	Surface accuracy is ≤5um Small hole diameter: 4 mm, four holes (in 60 mm * 60 mm) Vacuum pump is externally connected
Control Panel	4" color touchscreen panel to set coating speed, heating temperature, and syringe pump speed
Compliance	CE certified NRTL or CSA certification is available upon request at extra cost

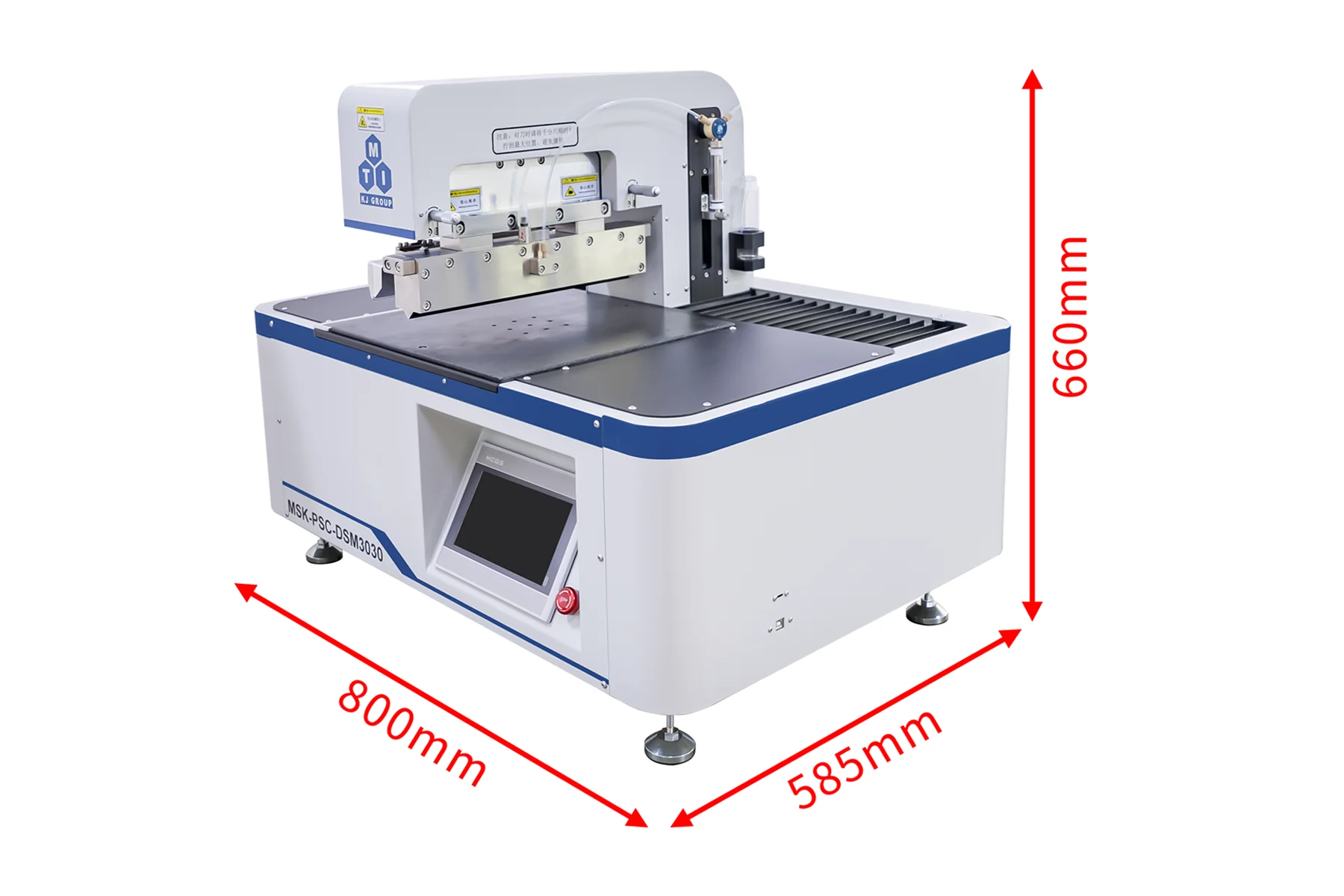

Dimension	W800mm×D585mm×H660mm
Weight	128 kg

Product Information

Shipping & Returns

Description

MSK-PSC-DSM3030 is a precise sheet-to-sheet slot die coater with a 300 mm coating width and the super flat marble vacuum chunk is used for thin film coating with high uniformity. This coater is designed for ultrathin perovskite layer coating with diluted precursor solutions.
SPECIFICATIONS

Power	AC220V±10%, 50/60Hz, 800W (AC110V can be provided upon request)
Slot Die Head	300 mm width slot die head with 3 pcs shims with thickness 0.02, 0.04, 0.06 mm included (others thicknesses are available upon request) Different open-mouth width shims for various coating width are available upon request. Minimum coating thickness: 2 um (depending on slurry viscosity)
Substrate	Rigid substrates, such ITO, FTO. Max. thickness is <3.2 mm Flexible substrate, such as ITO or FTO on PET
Travel Speed & Length Coating	Travel Speed: Max. 100 mm/s adjustable via touch screen control panel Maximum coating area: 300 mm W x 300 mm L 5 um-100 um (wet film, depends on material property) Slurry feeding speed: 0.1-500 ul/s Syringe volume: 10 mL (other volumes can be provided upon request) Slurry viscosity: 1-1000 cps
Marble Vacuum Chuck	Surface accuracy is ≤5um Small hole diameter: 4 mm, four holes (in 60 mm * 60 mm) Vacuum pump is externally connected
Control Panel	4" color touchscreen panel to set coating speed, heating temperature, and syringe pump speed
Compliance	CE certified NRTL or CSA certification is available upon request at extra cost
Dimension	W800mm×D585mm×H660mm
Weight	128 kg
