Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020
HomeStore

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020

MSK-PSC-MM2020 is a precise sheet-to-sheet slot die coater with a 200 mm coating width and the super flat marble vacuum chunk is used for thin film coating with high uniformity. This coater is designed for ultrathin perovskite layer coating with diluted precursor solutions.
SPECIFICATIONS

Power
  • AC220V±10%, 50/60Hz, 220W (AC110V can be provided upon request)
Slot Die Head
  • 200mm width slot die head with 3 pcs shims with thickness 0.02, 0.04, 0.06 mm included (others thicknesses are available upon request)
  • Different open-mouth width shims for various coating width are available upon request.
  • Minimum coating thickness: 2 um (depending on slurry viscosity)
  • Inside channel volume is 2 mL

Gap Control
  • 0-6.8 mm with digital micrometer, accuracy is ±1 um

Substrate
  • Rigid substrates, such ITO, FTO. Max. thickness is <3.2 mm

Travel Speed & Length

Coating
  • Travel Speed: Max. 25 mm/s adjustable via touch screen control panel
  • Maximum coating area: 200 mm W x 200 mm L
  • 5 um-100 um (wet film, depends on material property)
  • Slurry feeding speed: 0 - 500 uL/s
  • Syringe volume: 10 mL
  • Slurry viscosity: 1-1000 cps
  • The precise digital thickness gauge (EQ-DTG) can be used to measure the electrode sheet thickness


Marble Vacuum Chuck
  • Surface accuracy is ≤5um
  • Small hole diameter: 3 mm, four holes
  • Vacuum pump is externally connected
Control Panel
  • 4.3" color touchscreen panel to set coating speed, heating temperature, and syringe pump speed
Compliance
  • CE certified
  • NRTL or CSA certification is available upon request at extra cost
Dimension
  • W345mm×D514mm×H230mm
Weight
  • 31 kg



$8,749.30

Original: $24,998.00

-65%
Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020—

$24,998.00

$8,749.30

More Images

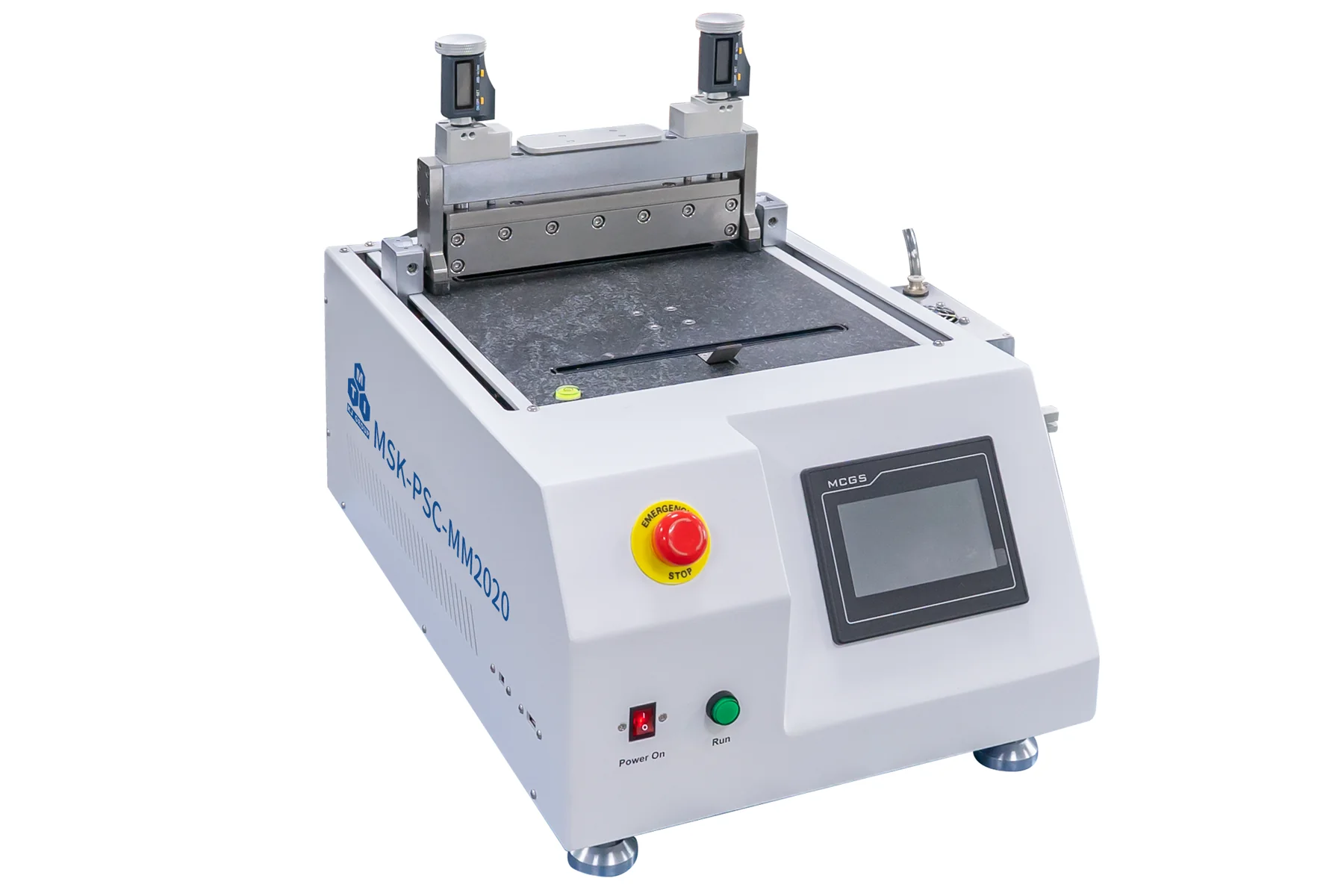

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020 - Image 2

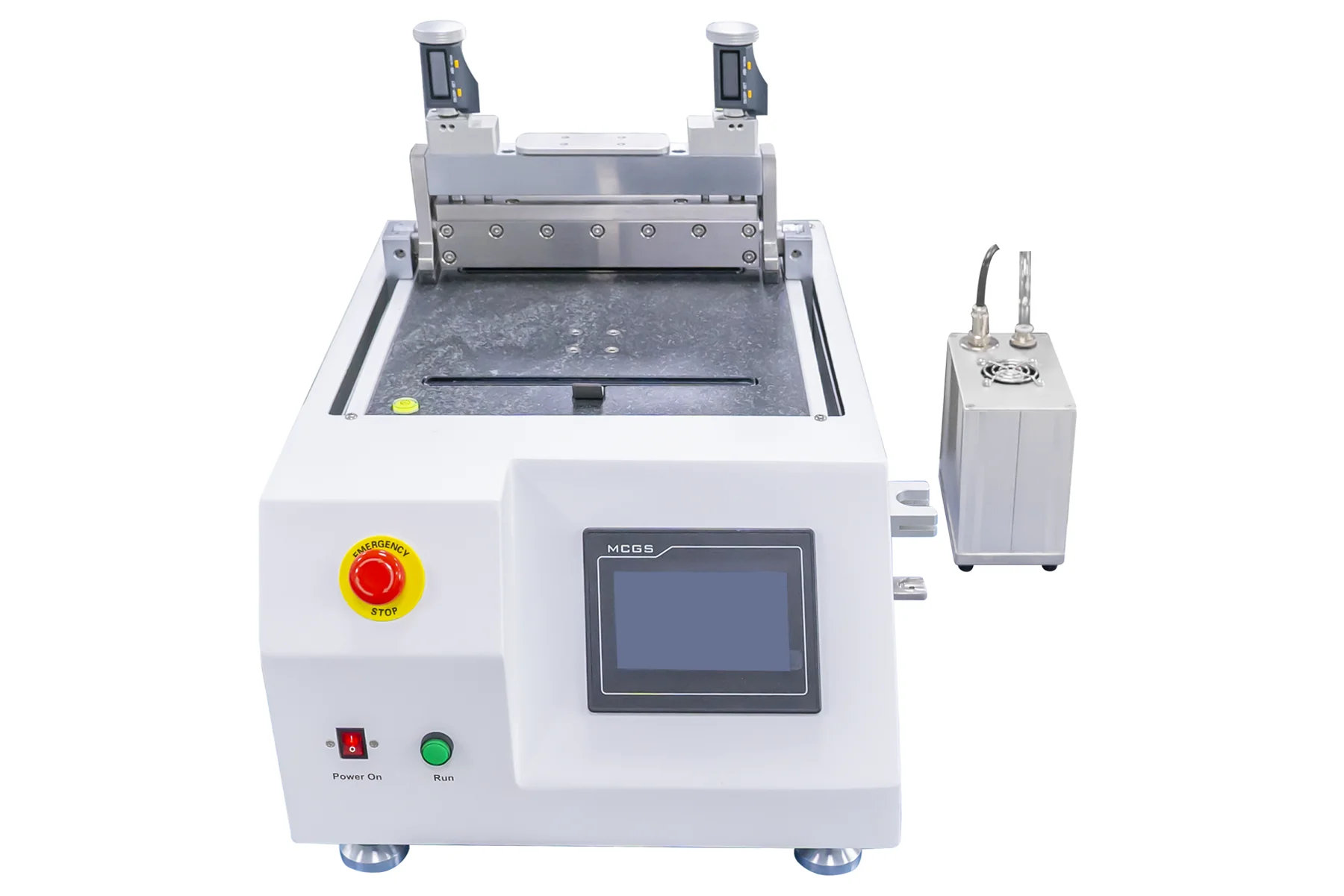

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020 - Image 3

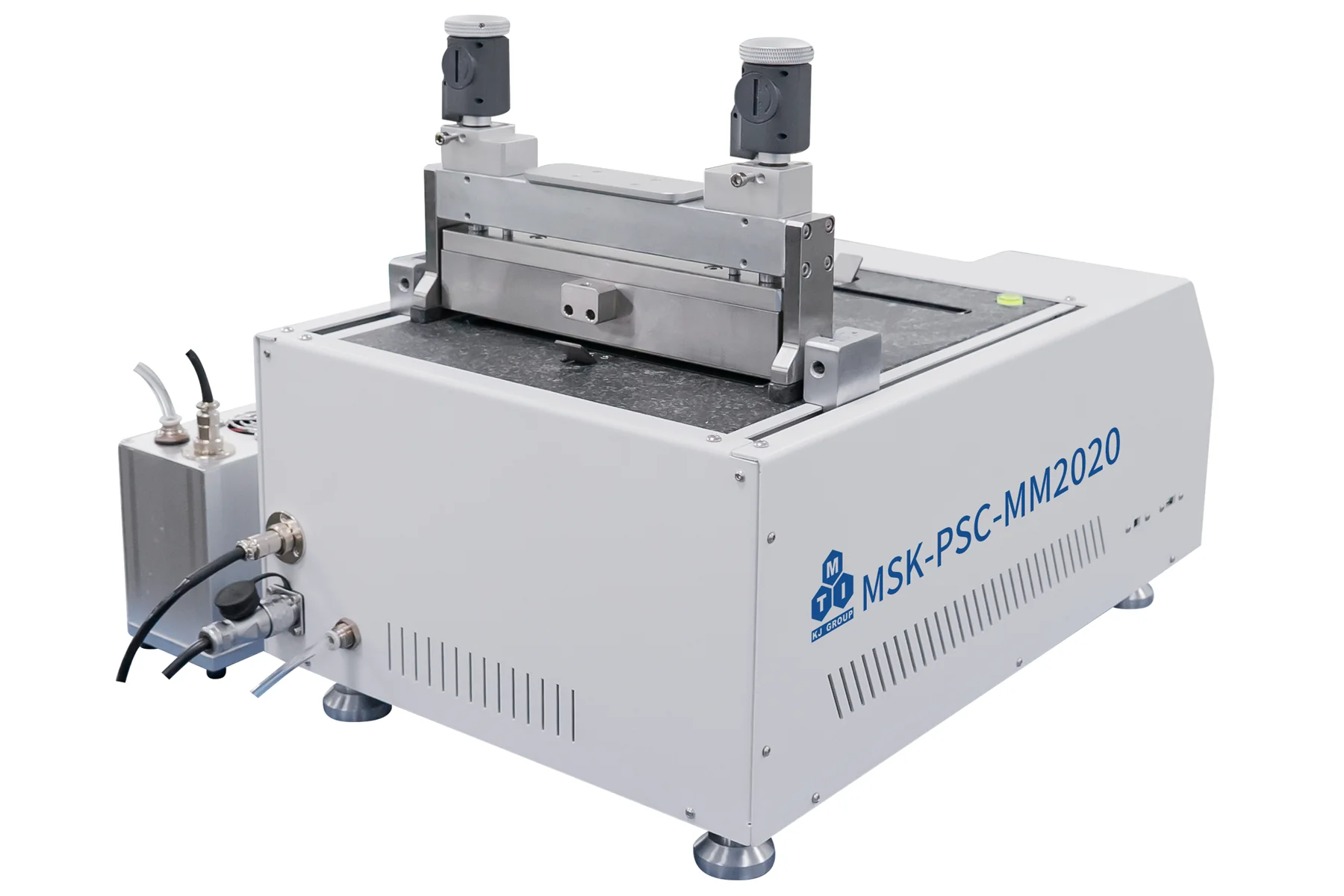

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020 - Image 4

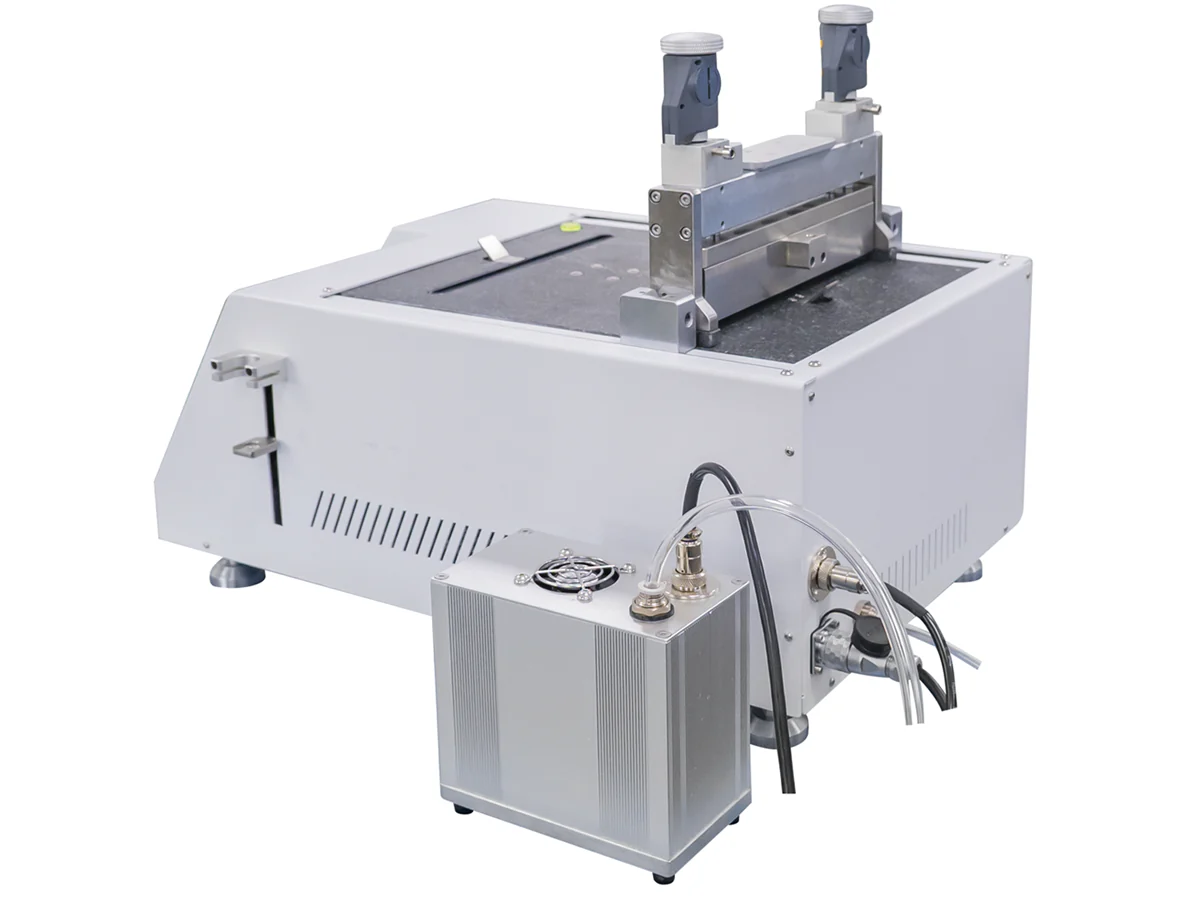

Sheet-to-Sheet Slot Die Coater with Marble Vacuum Chuck (200 mm * 200 mm) for Perovskite Solar Cells - MSK-PSC-MM2020 - Image 5
