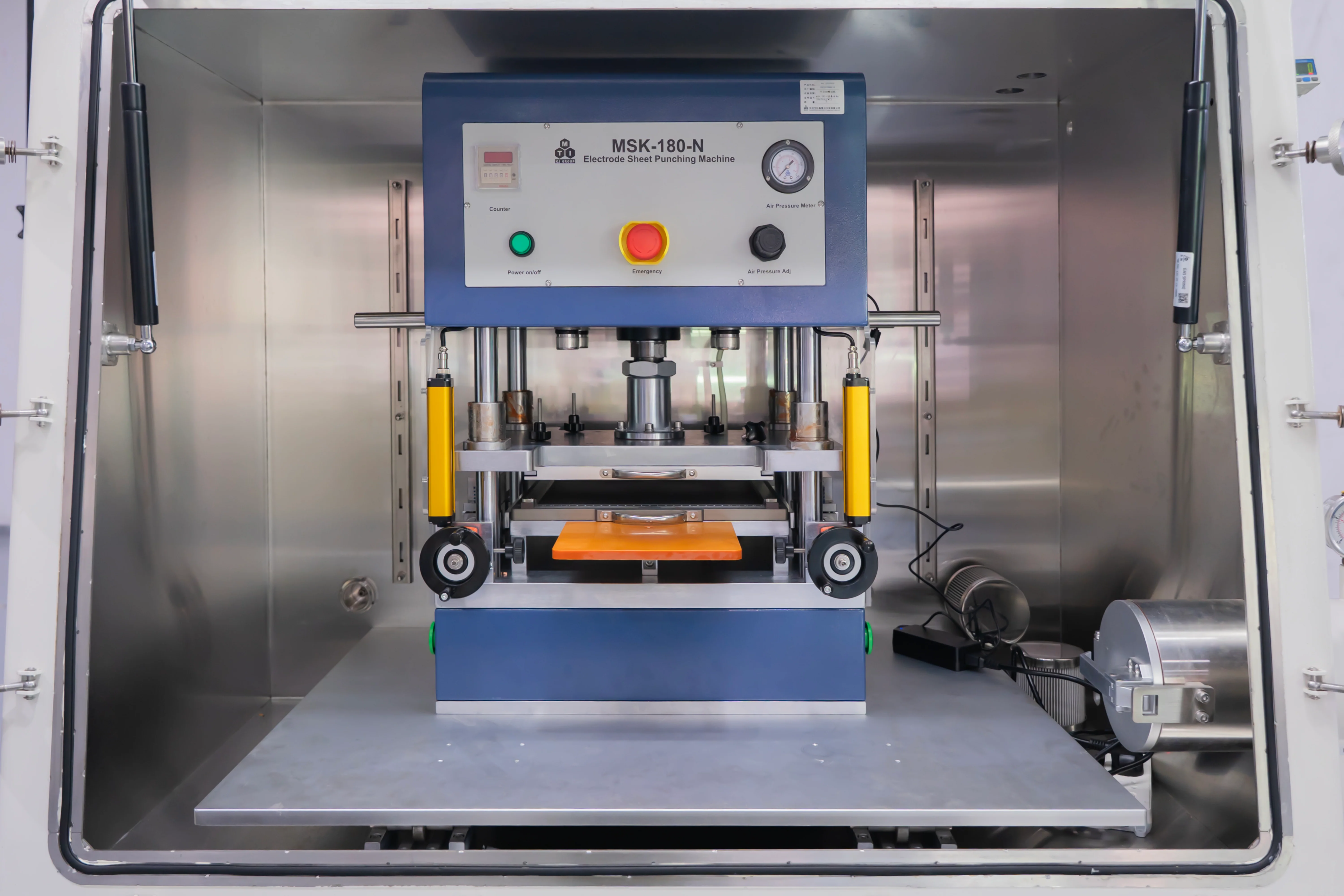

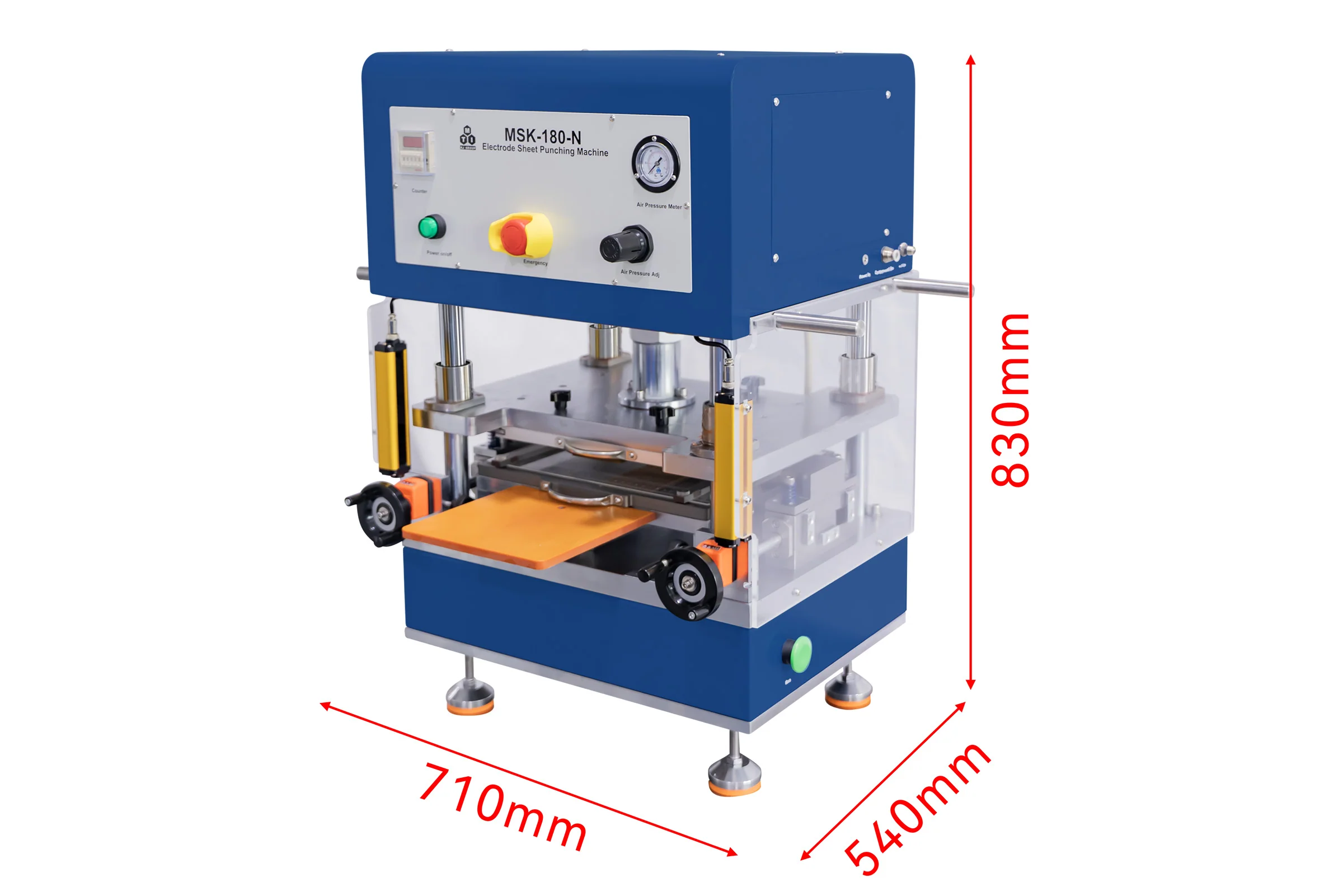

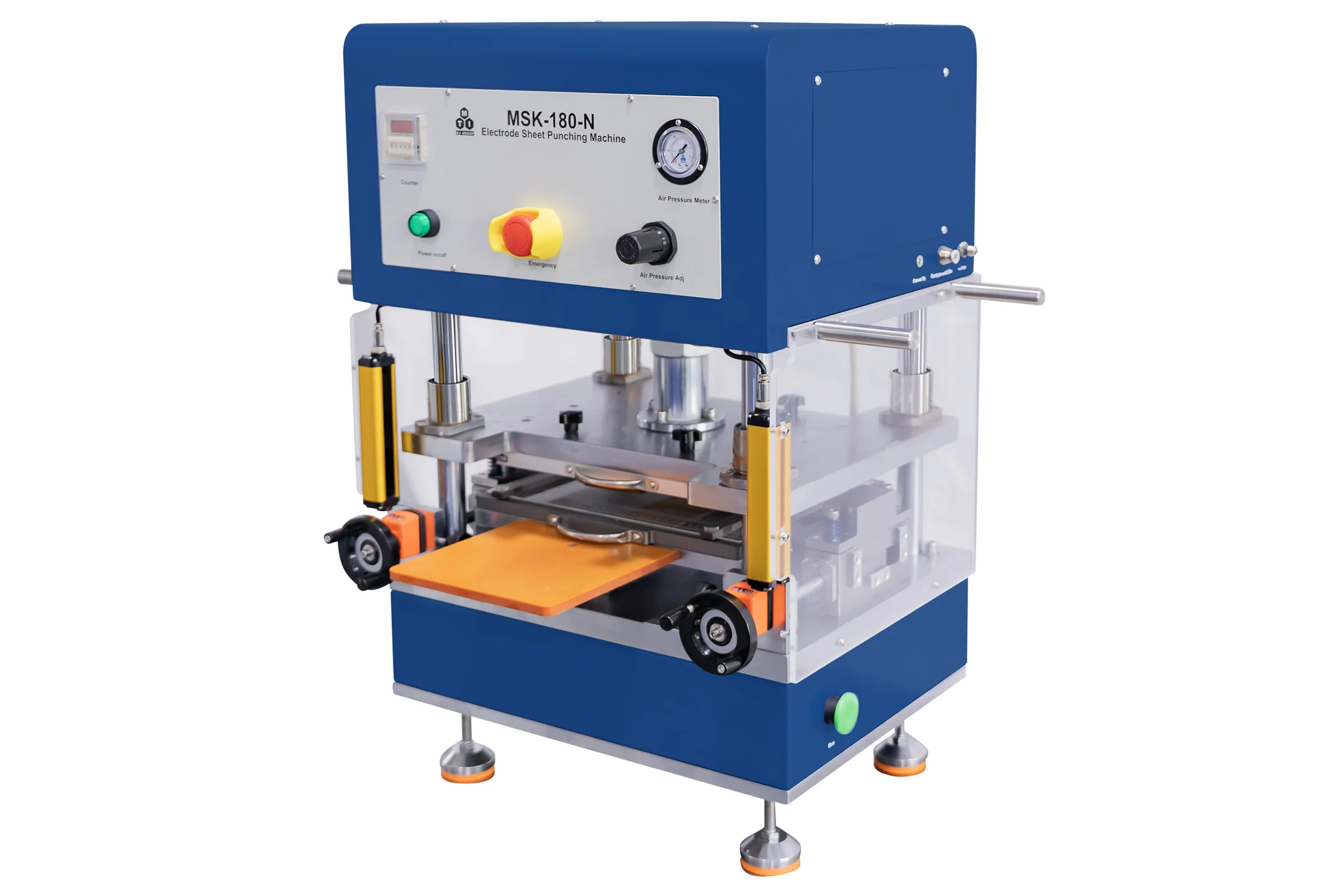

MSK-180-N-G is a precision semi-automatic die cutting machine designed for preparing pouch cell electrode with a maximum size of 200 mm(L) x 200mm (W). The equipment is compatible with glovebox operation to enable electrode processing under controlled gas or inert gas atmosphere.Ā

As an upgraded version of MSK-180, it offers enhanced structural stability and improved cutting precision to minimize burr formation and powder shedding during the cutting process. MSK-180-N is an essential tool for pouch cell fabrication to enable precise cutting of cathode and anodes with the current collector tabs. The electrodes produced from MSK-180-N-G are optimized to match the standard punch cases produced by the MSK-120 Cups Forming Machine, and the electrodes' shape are well-suited for subsequent processes such as tab welding by the MSK-800 and electrode stacking using the MSK-111A.Ā

SPECIFICATION:

Power
  • AC110VĀ±10% or AC220VĀ±10%, Single Phase, 50/60Hz, 60WĀ
Die Set Dimensions
  • Two standard electrodes (Cathode & Anode) cutting dies are included in the standard package for immediate use
  • Cathode Die: 56mm (L) x 43mm (W) with a 14mm (L) x 11mm (W) protruding current collector
  • Anode Die: 58mm (L) x 45mm (W) with a 13mm (L) x 11mm(W) protruding current collector
  • Customized dies are available upon request at extra cost.Ā
  • Customized dies with Max. dimension 200mm (L) x 200mm(W), including current collector, are available upon request at extra cost.
Production Capacity
  • 2 pcs of electrodes can be produced per cut.Ā
Burr ToleranceĀ
  • Vertical Burr:Ā ā‰¤ 12 Ī¼m
  • Horizontal Burr:Ā ā‰¤ 20Ā Ī¼m
Cutting Accuracy
  • Ā± 0.1mm

Compressed AirĀ

(Required but not included)
  • 0.5-0.8 MPa air pressure is required
  • Max. Punch Pressure: 3 Tons

Attention: If a gas cylinder is used instead of an air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click to learn the installation of a gas regulator.Ā
ComplianceĀ
  • NRTL or CSA certification is available upon request
Application Notes
  • The Consumable Clear Acrylic Sheets are available for replacementĀ
