SDH-FSC is a slot-die fixture to convert a doctor-blade coater into an economic slot-die coater for MTI MSK-AFA-III Coater

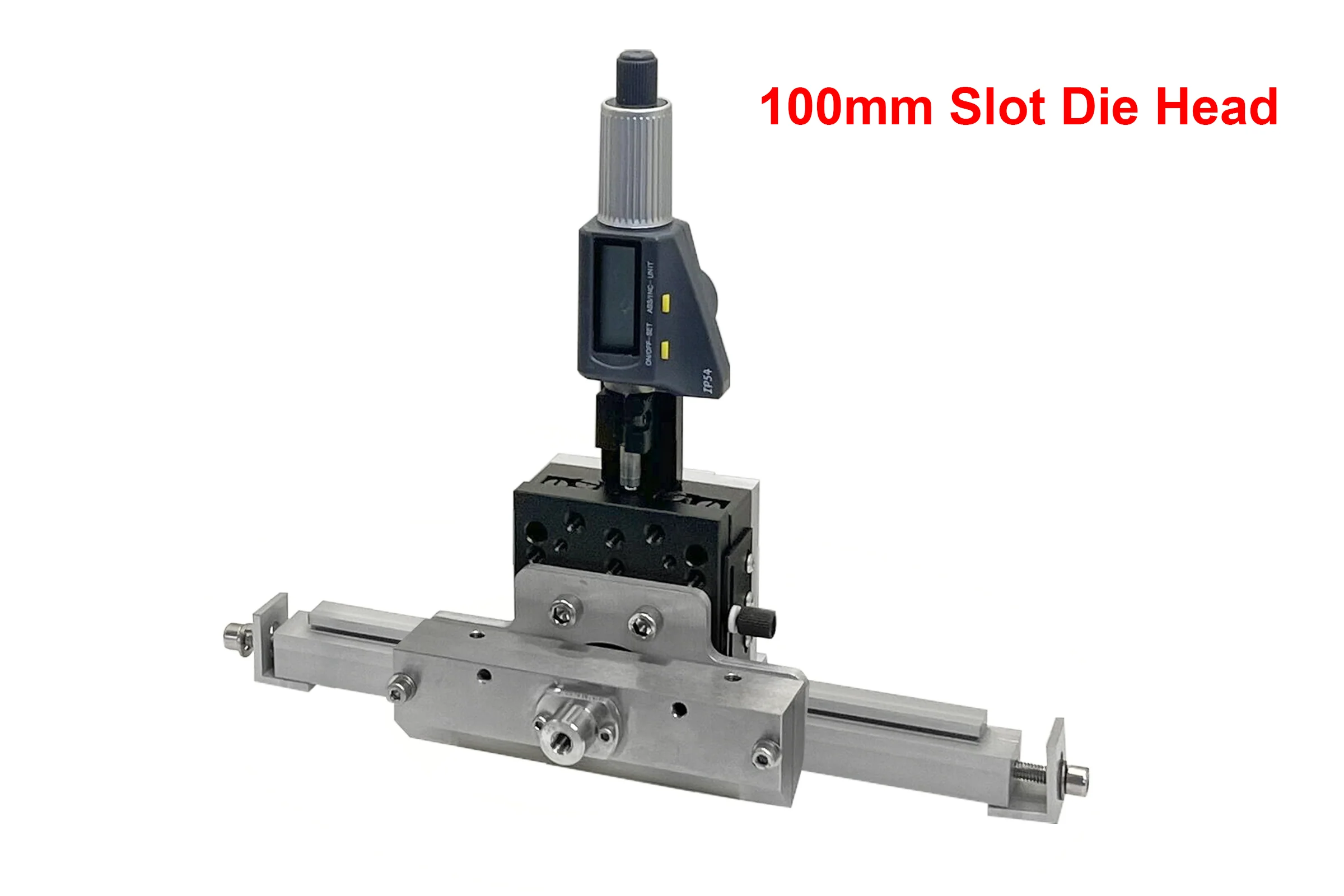

The slot die heads are available in 50mm or 100mm widths with optional thickness shims.\

Slot Die Structure	Made of Stainless steel  Please click on the below pictures to view the structure Slot Die. Three types of the shim is included with thicknesses 0.2mm, 0.3mm, and 0.5 mm separately
Features	Simple to assemble and disassemble Slot Dies Easy to clean and maintain Tube and fitting are included to connect with syringe and slot die heads, please see below

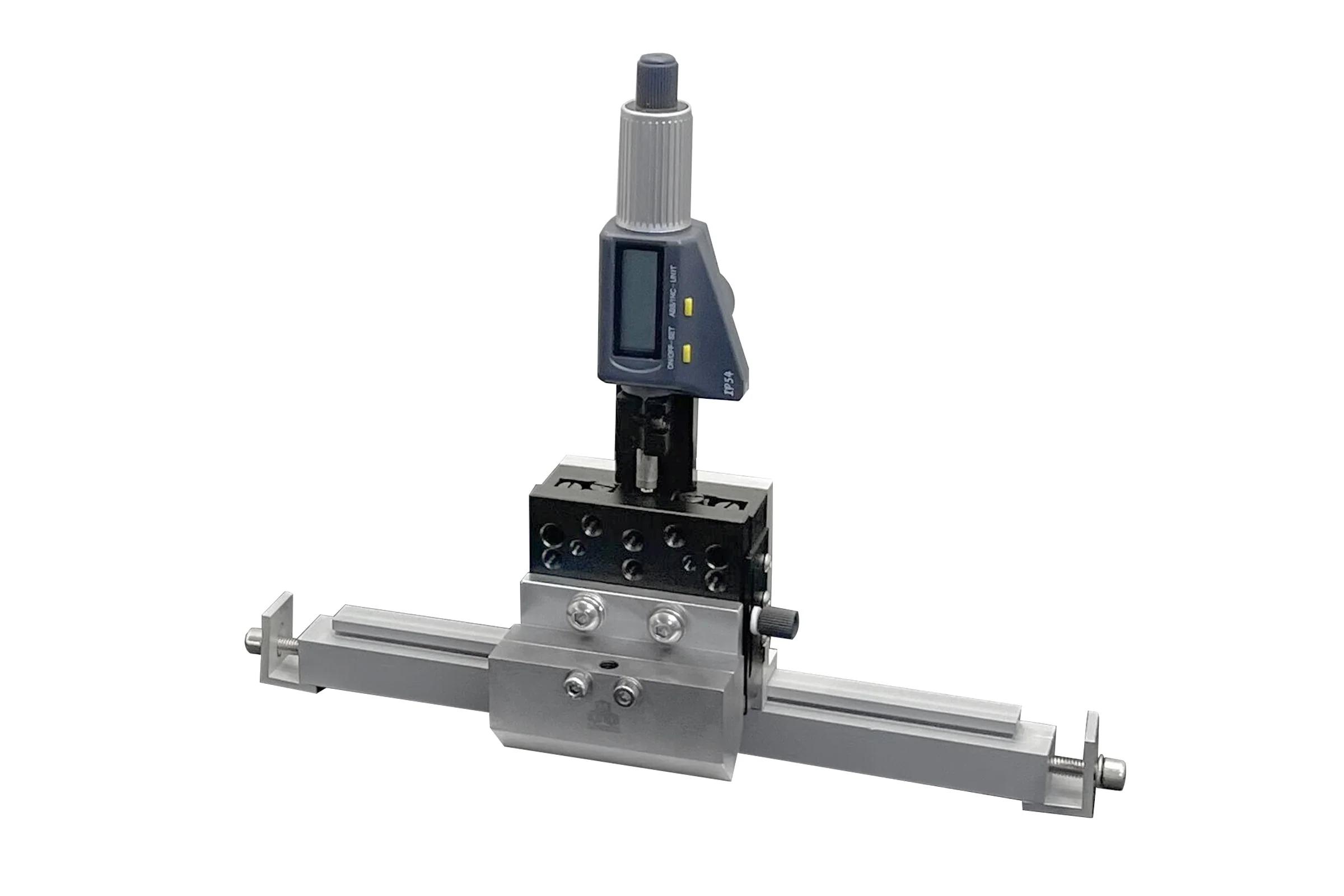

Travel Rod with Micrometer Head	A built-in travel rod of the coater with the digital micrometer head to adjust the gap between slot die and substrate Pic. 1-3) This fixture is designed for MTI MSK-AFA-III Coater only Pic. 1 Pic. 2  Pic. 3 Pic. 4
Optional Syringe Pump	Digital Controlled Infusion Syringe Pump and connection pipe (Not Included in the standard package) Displays total volume dispensed in mL or µL units The maximum pumping rate of 25 mL/hr with a 60 mL syringe Precise reproducible flow rates Selectable infusion rates units: mL/hr, µL/hr, mL/min, µL/min
