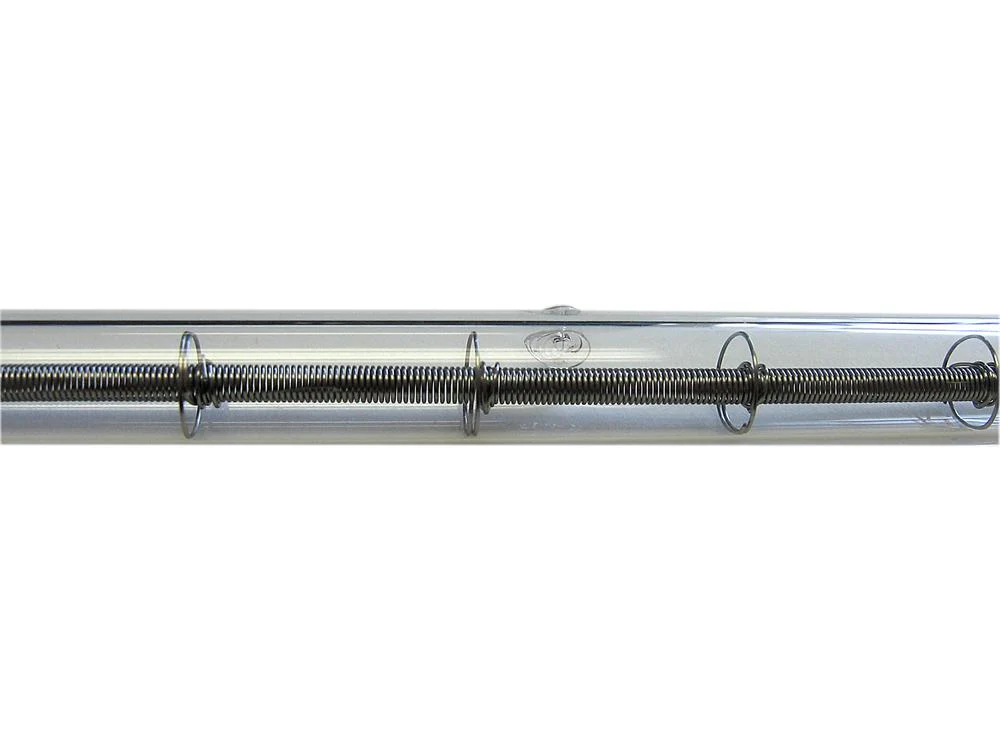

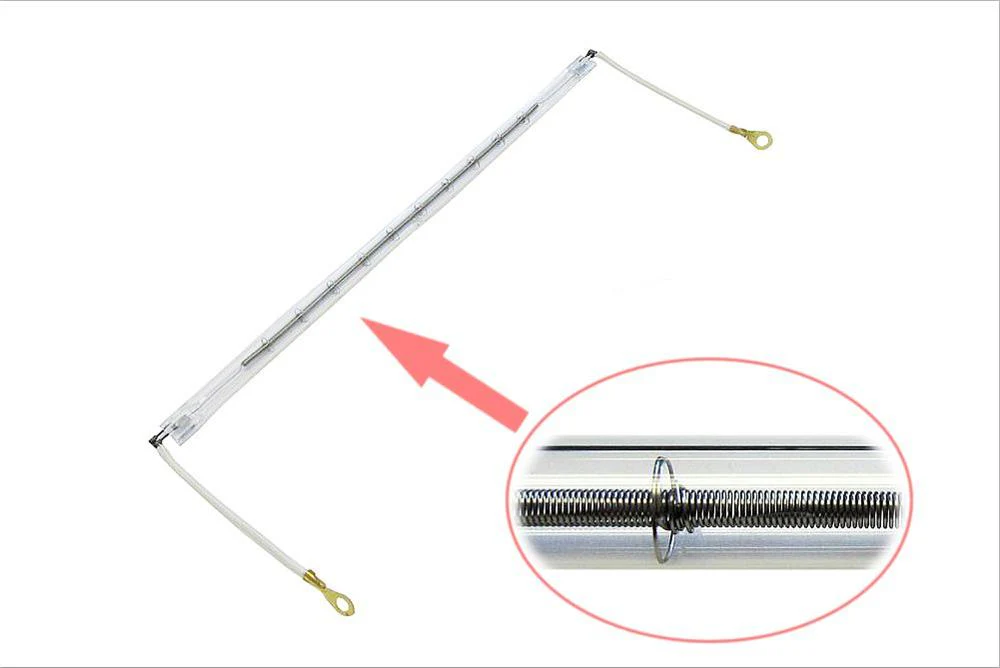

1000Ā°C Halogen light Heater (1KW) for Compact RTP Tube Furnace only - RTP-Halogen-light
TheĀ halogen lamp is an incandescent lamp in which a tungsten filament is sealed into a compact transparent envelope filled with an inert gas and a small amount of a halogen. Such halogen lamp was originally designed for heating upĀ Compact RTP Tube Furnace with max. heating rate up to 120 oC/second up to 1000Ā°C
Ā
Ā
|
Aluminum Nitride Ceramic Substrates Properties |
|
|
Item No. |
RTP-Halogen-light |
|
Filament Material |
Tungsten |
|
Lamp Size
|
 Length of tungsten filament:Ā 200 mm
TotalĀ Length: 285 mm
Lamp Diameter: 10 mm
|
|
Power
|
1000W
|
| ServiceLife |
2000 hours |
|
Product ConfigurationĀ
|
 The compact RTP furnace is heated by eight halogen lights surrounding it with a maximum of 120 Ā° C/second heating rate.
|
Inspect your delivery:
Please check the package for damage before accepting delivery.Ā
Should damages be found, please keep all packaging materials, take pictures, and report immediately to the carrier/MTI.
No Warranty:
Kindly note this item is a consumable part and not covered by warranty. Make sure to inspect for defect(s)Ā thoroughly before use.Ā
$95.00
