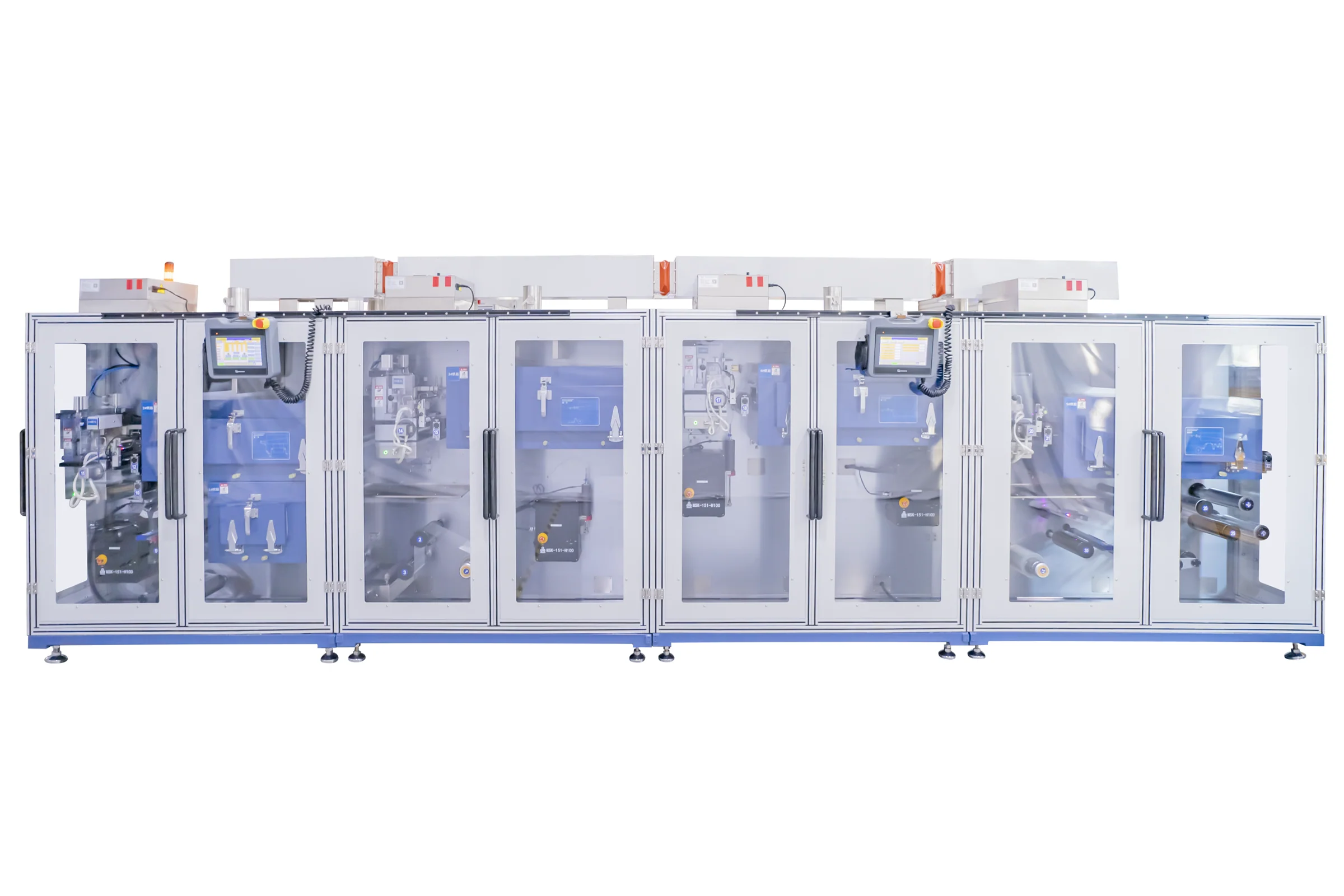

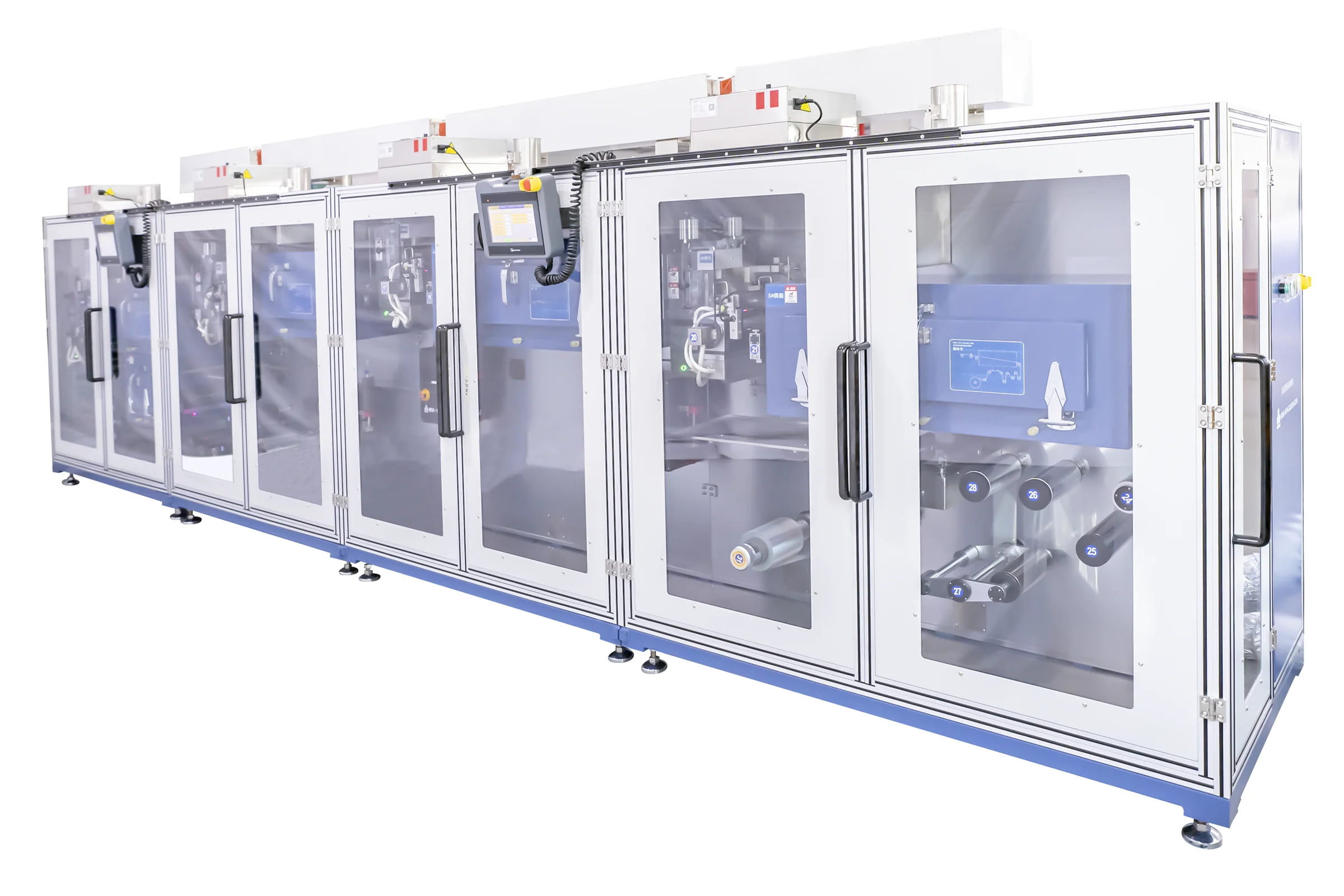

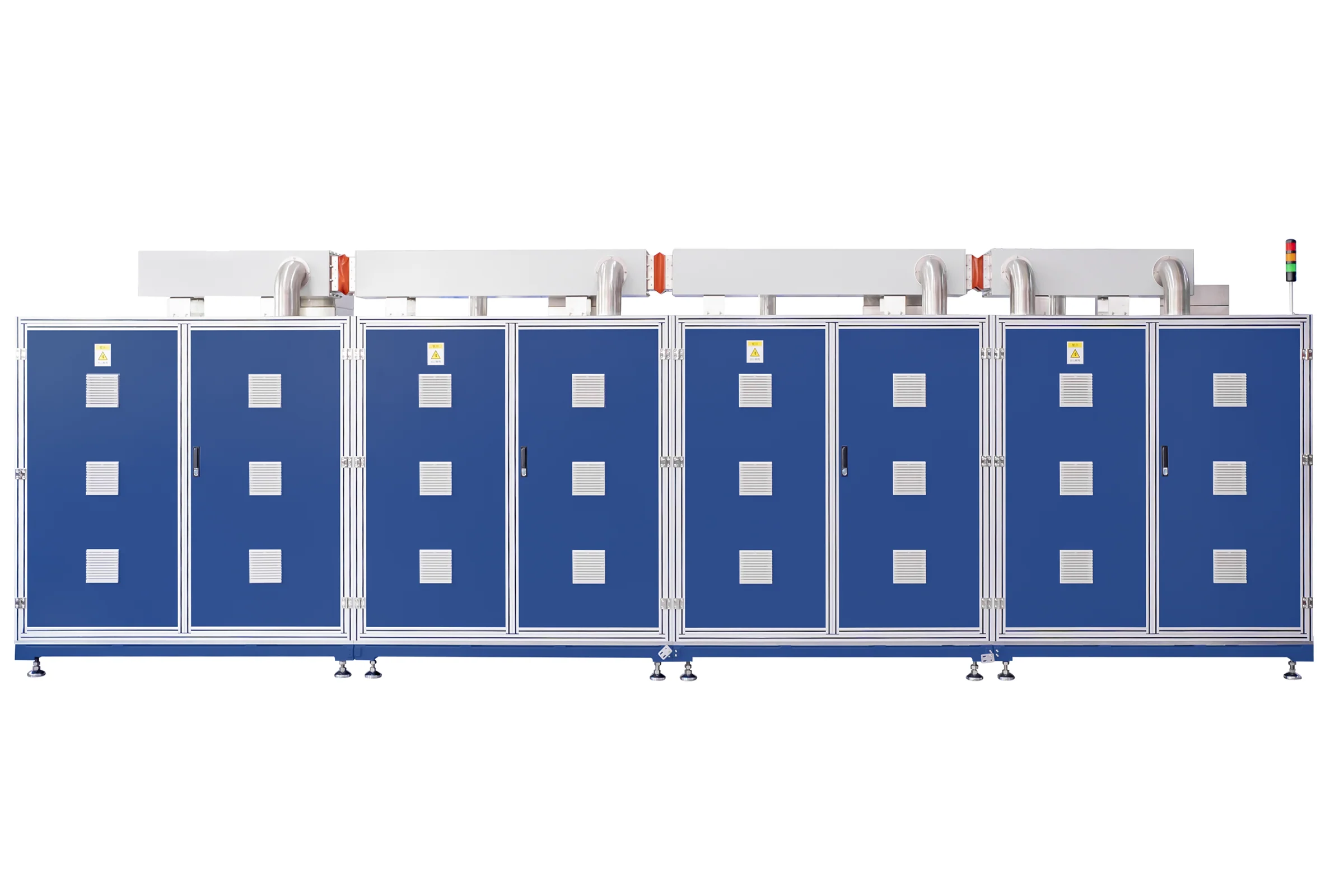

Roll-to-Roll Slot Die Coater for Continuous Multiple Layers Coating of Flexible Perovskite Solar Cells - MSK-AFA-SD200-CDH

• AC380V±10%, three-phase, 50/60Hz, 28 kW (AC220V, three-phase can be provided upon request)


• Continuous coating


Coating Thickness

• 30-50 um (wet film) for perovskite solar cells. The thickness can be 3-500 um (wet film) for other application.

Roller Width

• 200 mm


Substrate Width

• Max. 180 mm

Coating Speed

• 0.1 - 2 m/min

• Servo Motor
• Steel roller diameter: 80 mm


• Coating width: 50-160 mm by changing shims
• Single  layer coating, fixing type
• One set of shims are included, the open mouth is determined by customer.
• Temperature: Max. 100℃, power:1 kw (for each)
• Movement: Pneumatic sliding and manual adjustment
• Steel coating roller: Ф80mm, flatness accuracy: ≤3μm

• For convection oven (0), length 0.5 mm, 2 kW
• For convection oven (1,2,3,4), length 1 m, each 4 kW
• Max. 130 ℃
• Electrical heating and generate convection air flow for drying

• MSK-151-H100 (customized)
• Driver: step motor + screw rod
• SS304, effective volume: 50 mL (I.D. of syringe is Ф25mm)
• Pump speed: 0.4-60 ml/min
• Size: L350 x W200 x H500mm, ~15 kg
• Four units for the whole system

• Swing roller
• Tension force: Max. 120 N
• Precise adjusting valve

• Diameter: Ф80mm
• Al roller surface with Cr coating treatment and anodization

• 3" diameter for roll loading/unloading
• Max roll diameter for loading: Ф400mm
• Max. loading weight: 50 kg
• Alignment accuracy: ±1mm

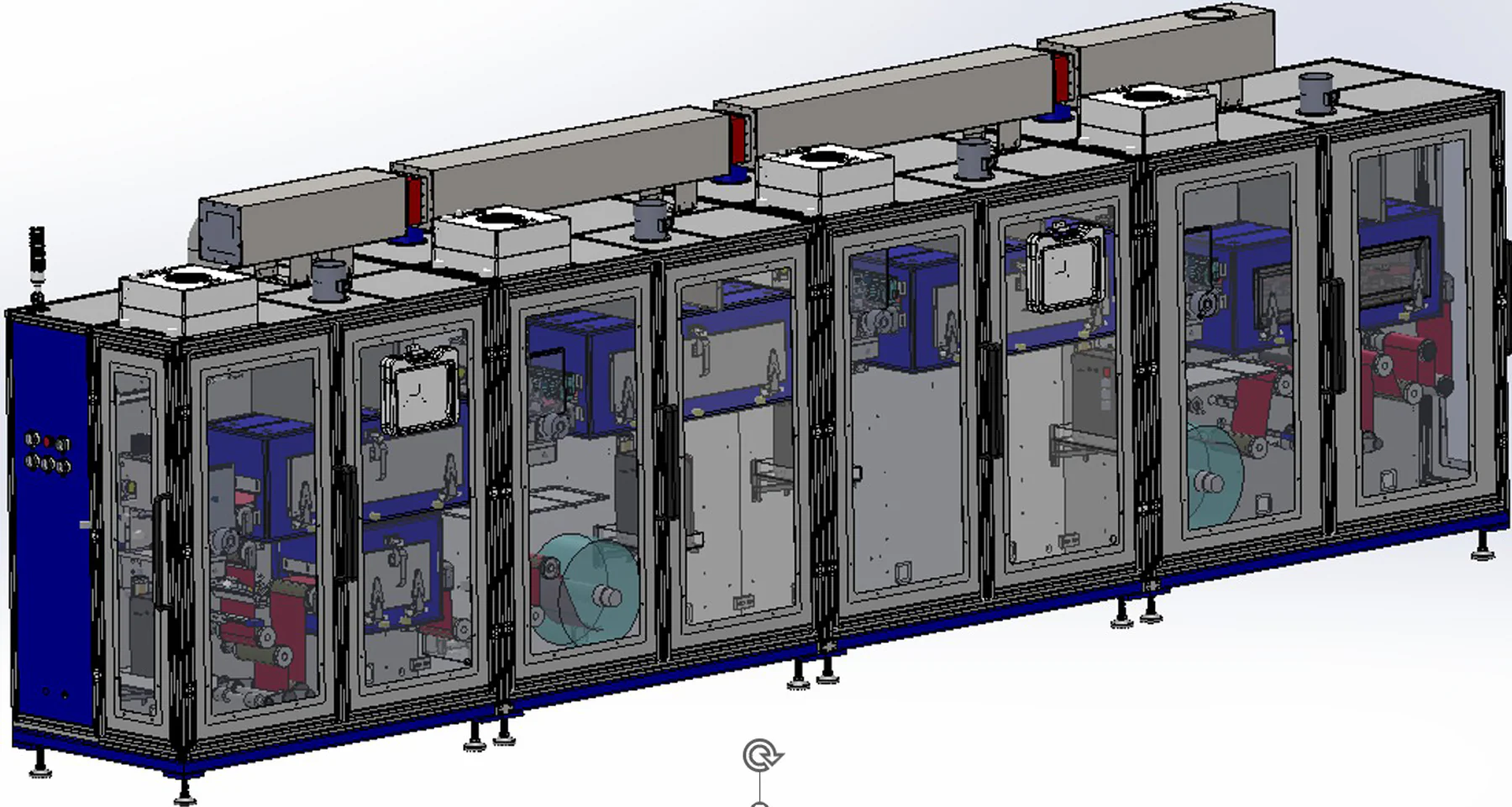

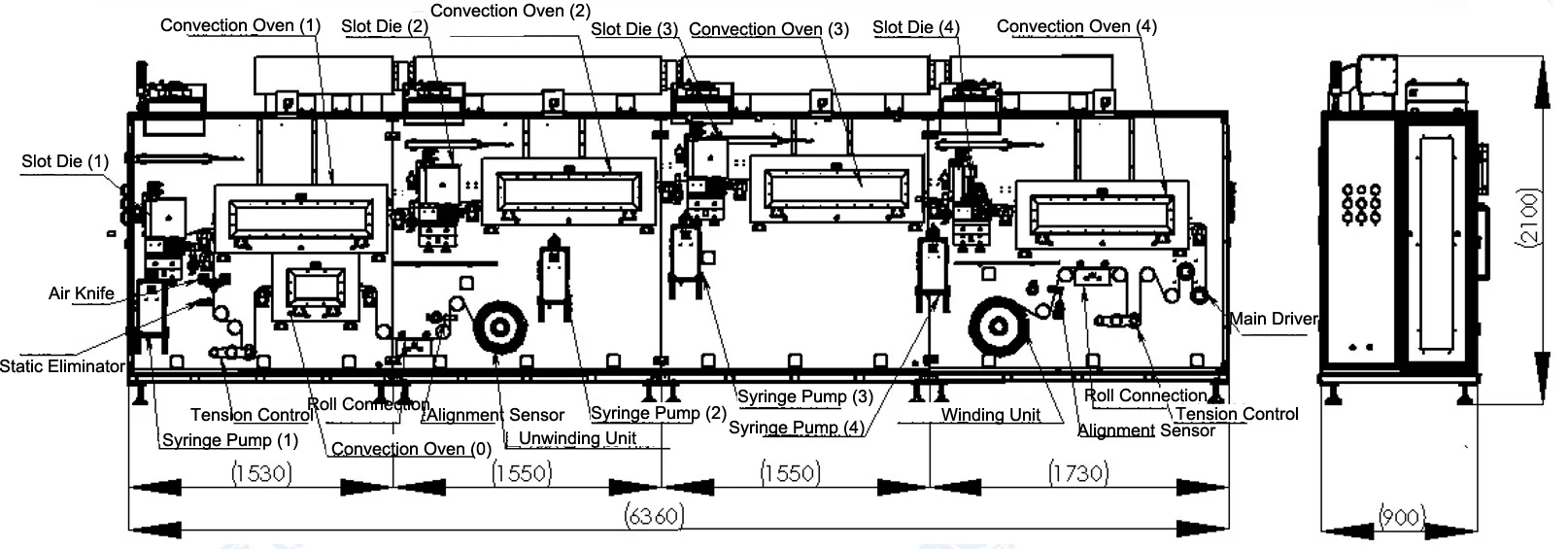

• L6360*W900*H2100mm

• ~3800 kg
