Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200
HomeStore

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200

MSK-BSL-H200 is a roll-to-roll hot laminator for forming trilayer composite. The protection layers can be used to protect the lamination layers during rolling press and then being removed after press.Ā

SPECIFICATIONS:
Power
  • Ā AC220VĀ±10%, 50/60Hz, single phase, 3.75 kW
Rollers
  • One stainless-steel roller, Š¤120mm
  • One rubber roller, Š¤120mm
Laminating Width
  • The roller width is 200 mm
  • The maximum width for lamination layers is 180 mm
Laminating Speed
  • Max. 1m/min
Lamination PressureĀ
  • Max. 0.6 T
Ā Lamination Gap
  • Max. 2 mm (gauge resolution is 1 um)
Lamination Temperature
  • Max. 120ā„ƒ (adjustable)
Winding Roller Diameter
  • Max. Š¤200mm
  • Carboard diameter is 3" for loading on winding/unwinding roller
Machine Size
  • L1000 x W860 x H1500mm
Weight
  • ~600 kg
Compliance
  • NRTL or CSA certification is available upon request at the extra cost

Ā

$31,493.00

Original: $89,980.00

-65%
Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200ā€”

$89,980.00

$31,493.00

More Images

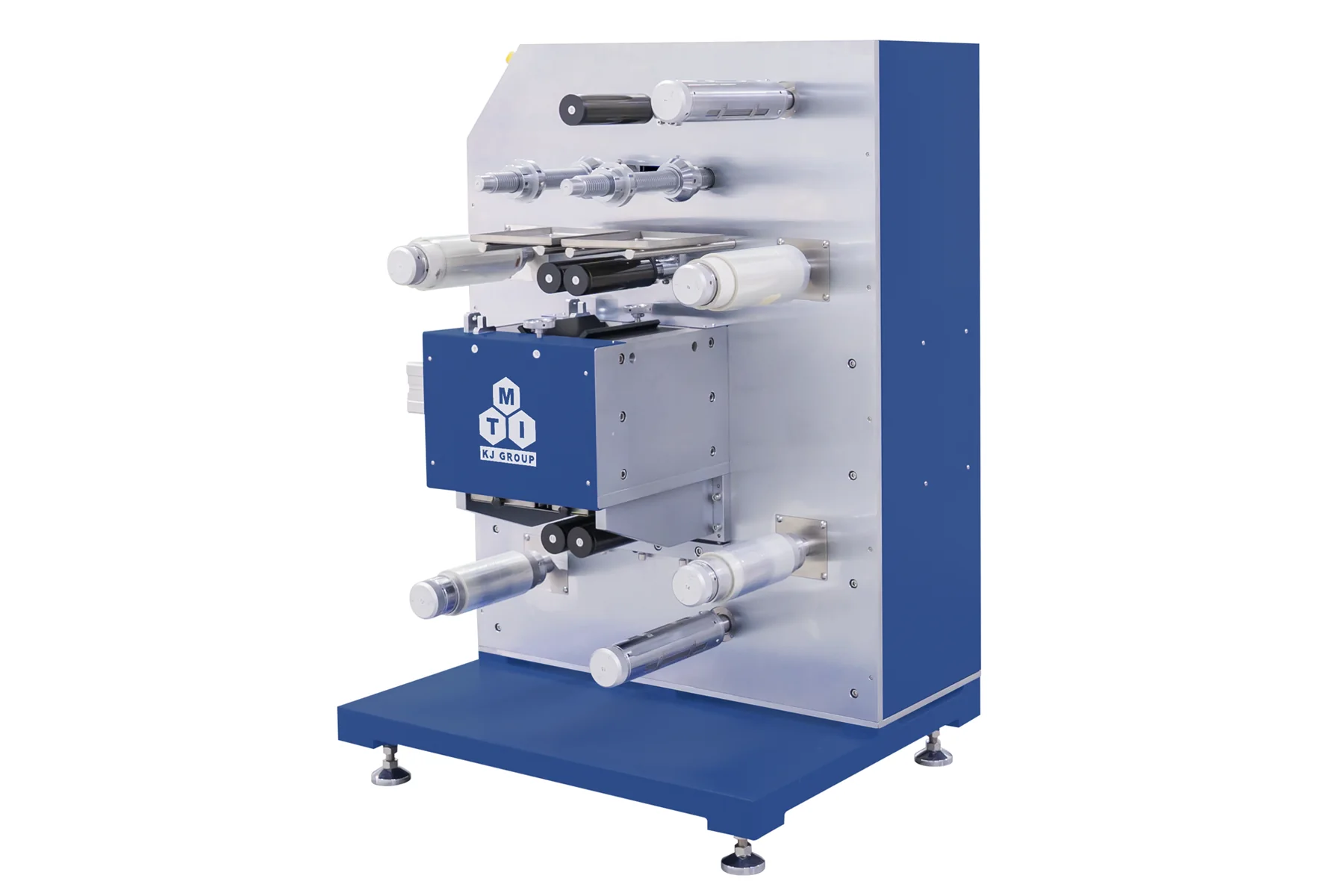

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200 - Image 2

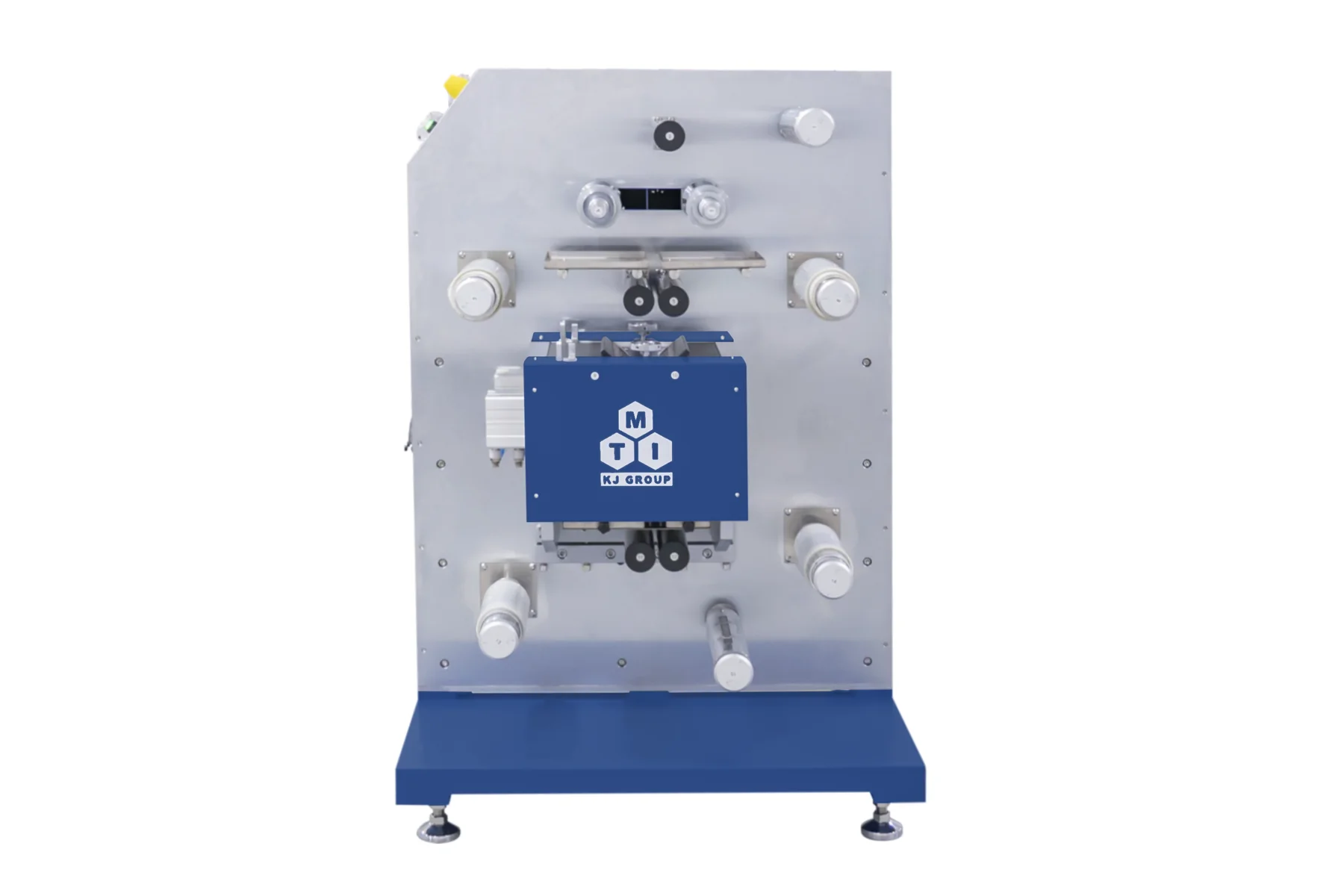

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200 - Image 3

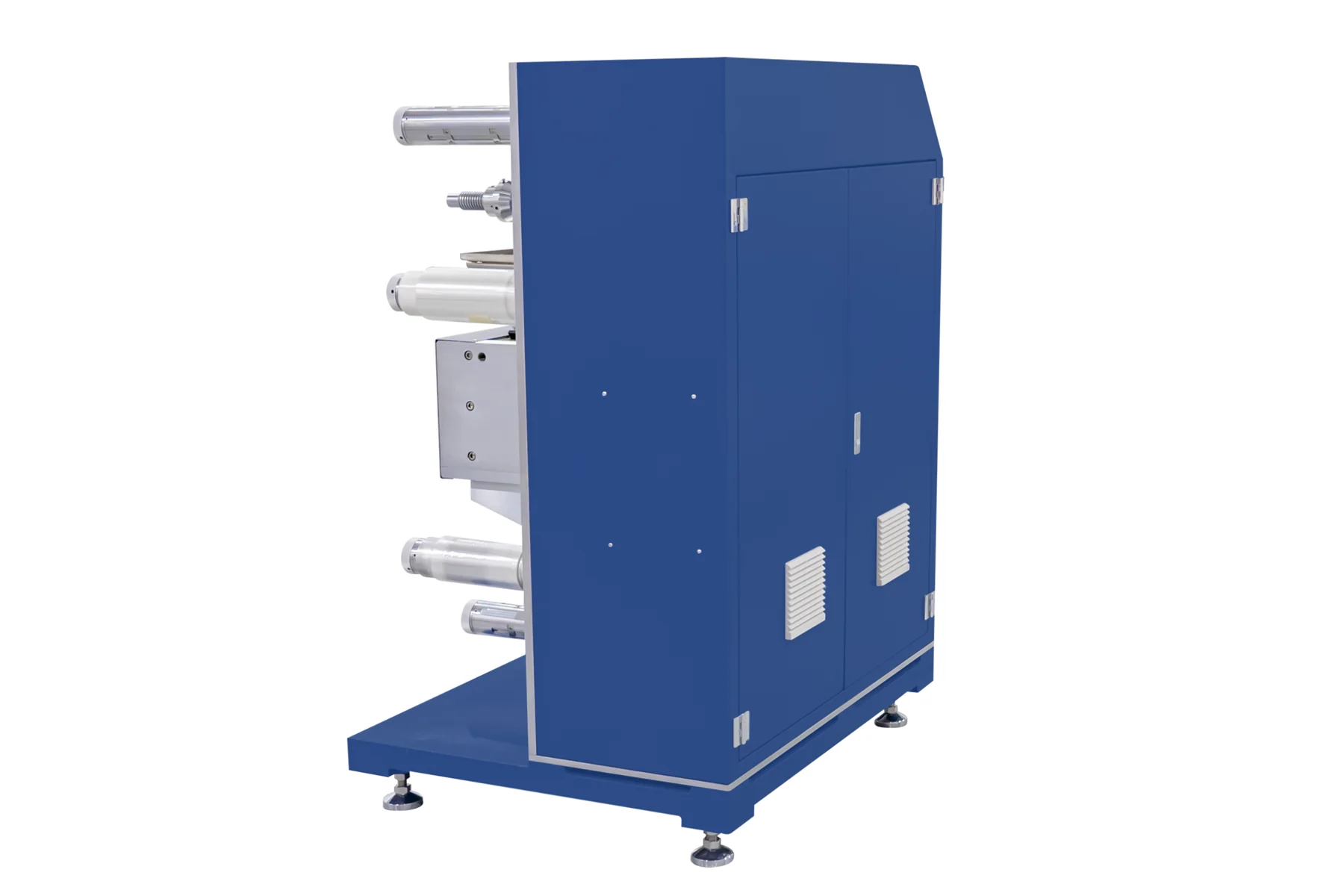

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200 - Image 4

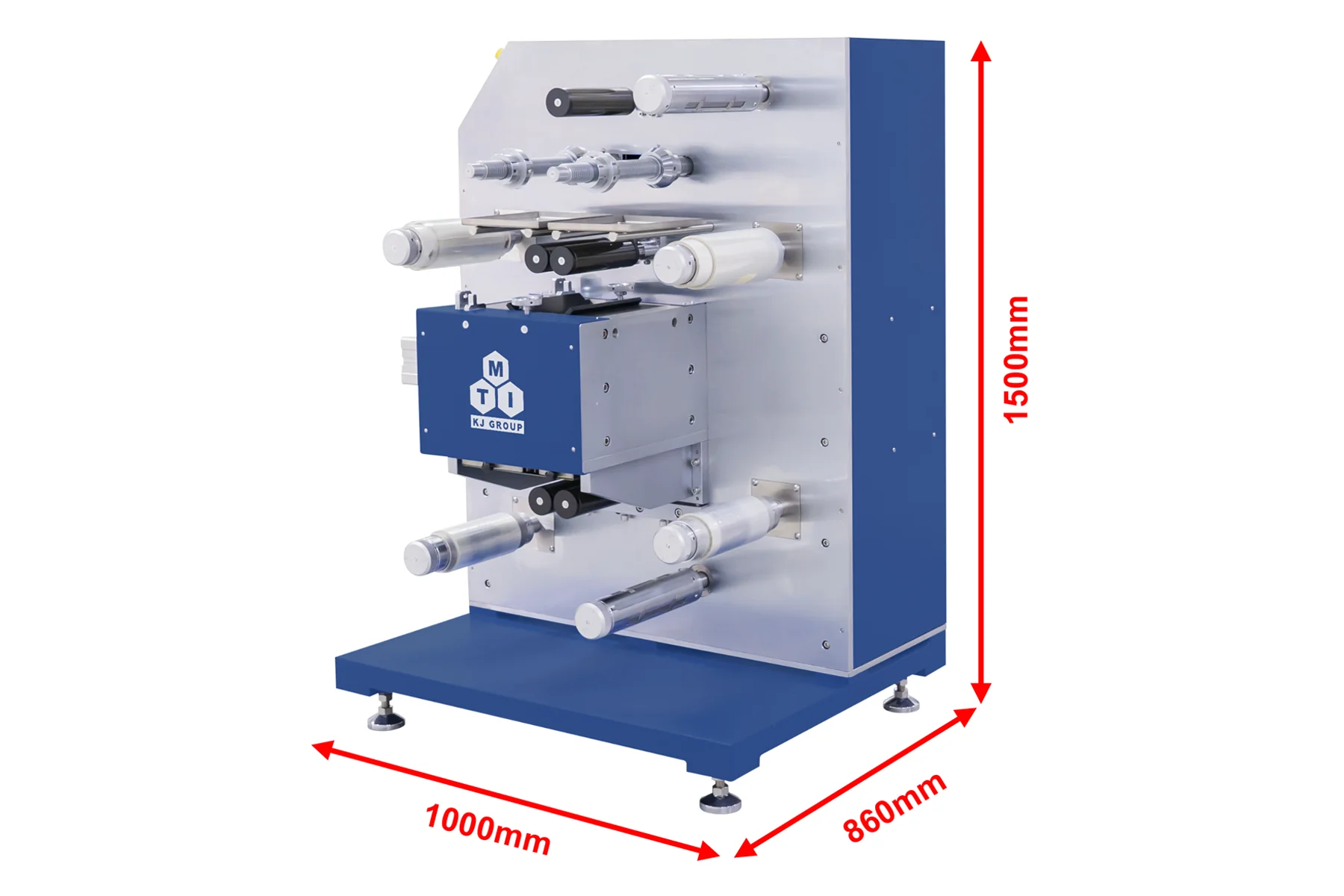

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200 - Image 5

Roll-to-Roll Hot Laminator for Tri-Layer Composite (W: 200 mm, Max. 120ā„ƒ, 0.6 T) - MSK-BSL-H200

MSK-BSL-H200 is a roll-to-roll hot laminator for forming trilayer composite. The protection layers can be used to protect the lamination layers during rolling press and then being removed after press.Ā

SPECIFICATIONS:
Power
  • Ā AC220VĀ±10%, 50/60Hz, single phase, 3.75 kW
Rollers
  • One stainless-steel roller, Š¤120mm
  • One rubber roller, Š¤120mm
Laminating Width
  • The roller width is 200 mm
  • The maximum width for lamination layers is 180 mm
Laminating Speed
  • Max. 1m/min
Lamination PressureĀ
  • Max. 0.6 T
Ā Lamination Gap
  • Max. 2 mm (gauge resolution is 1 um)
Lamination Temperature
  • Max. 120ā„ƒ (adjustable)
Winding Roller Diameter
  • Max. Š¤200mm
  • Carboard diameter is 3" for loading on winding/unwinding roller
Machine Size
  • L1000 x W860 x H1500mm
Weight
  • ~600 kg
Compliance
  • NRTL or CSA certification is available upon request at the extra cost

Ā
