NRTL Certified 5L Rotary Evaporating and Distilling System - RE-5L

EQ-RE-5L is an NRTL certified rotary evaporator for evaporating and distilling. It is an essential tool for the efficient removal of solvents from samples in material and chemical research. It is used for thermal evaporation in a wide range of applications

SPECIFICATIONS:

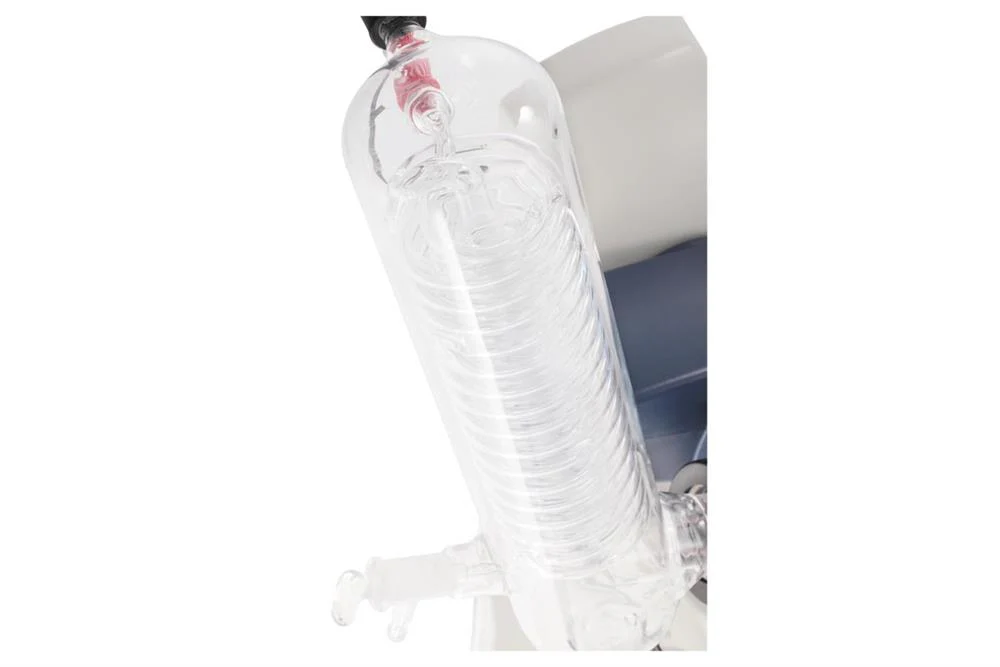

Features	Rotating speed and heating temperature Control Once out of power, the brushless DC motor can automatically load the evaporating flask to a safety position Speed range from 20 to 280 rpm with both of clockwise and counterclockwise directions 5 liters heating bath with a temperature range from room temperature to 180°C Overheating protection at 220°C Vertical or Diagonal condenser with 1500 cm^2 cooling surface
Input Power	AC 100 - 240V, 50 / 60 Hz Maximum power: 1400 W

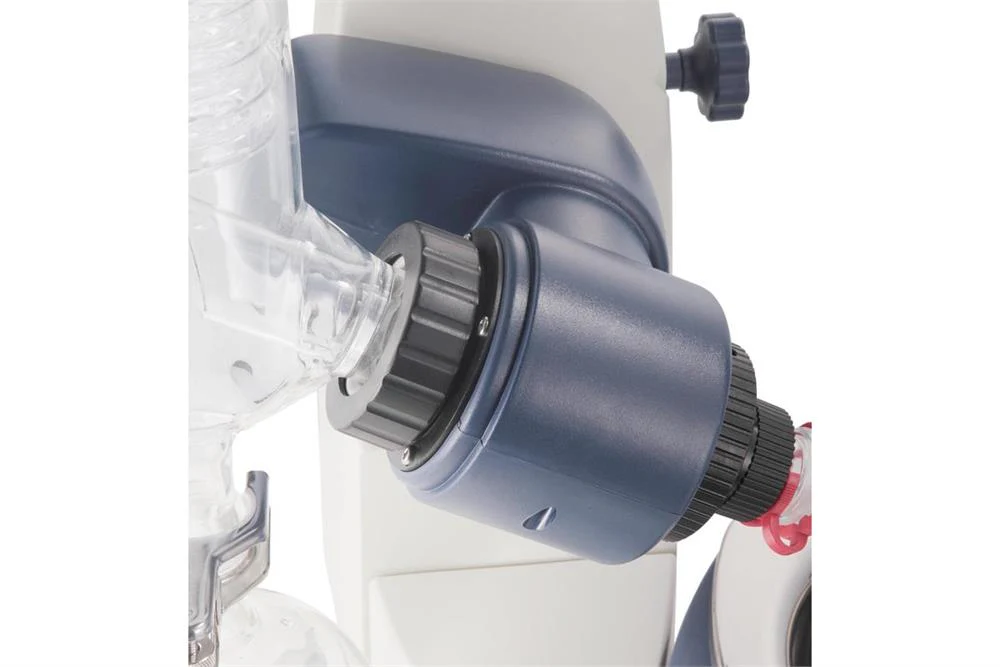

Motor	Brushless DC motor for rotating and lifting Speed Range: 20 - 280 rpm Directions: clockwise or counterclockwise adjustable Stroke (for lifting): 150 mm

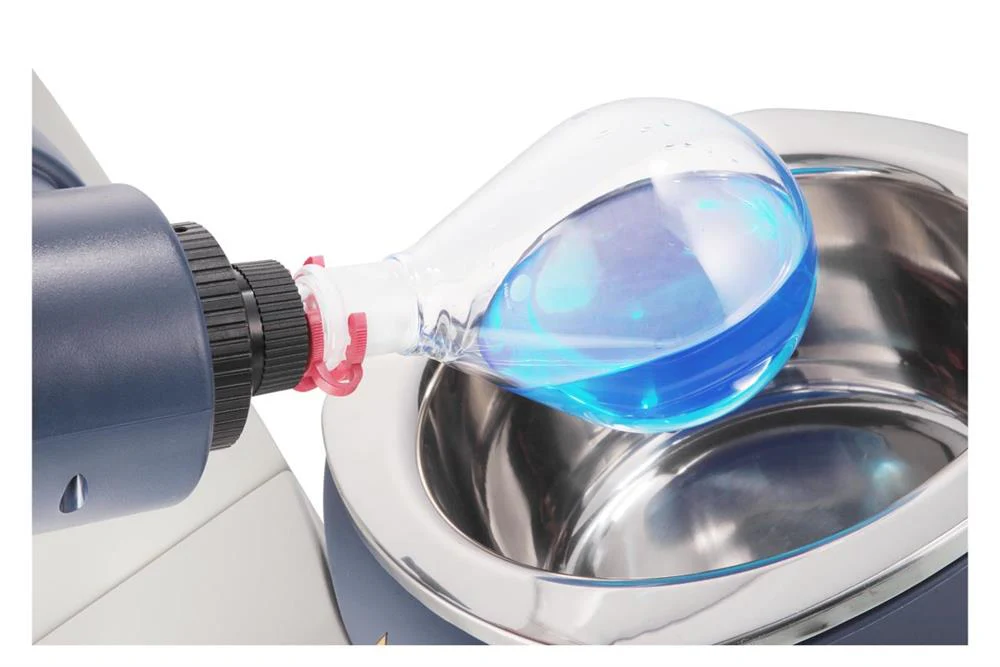

Heating	The volume of the heating bath: 5 Liters Temperature range: RT - 180°C Temperature accuracy: 1°C Ambient environment temperature: 5 - 40°C

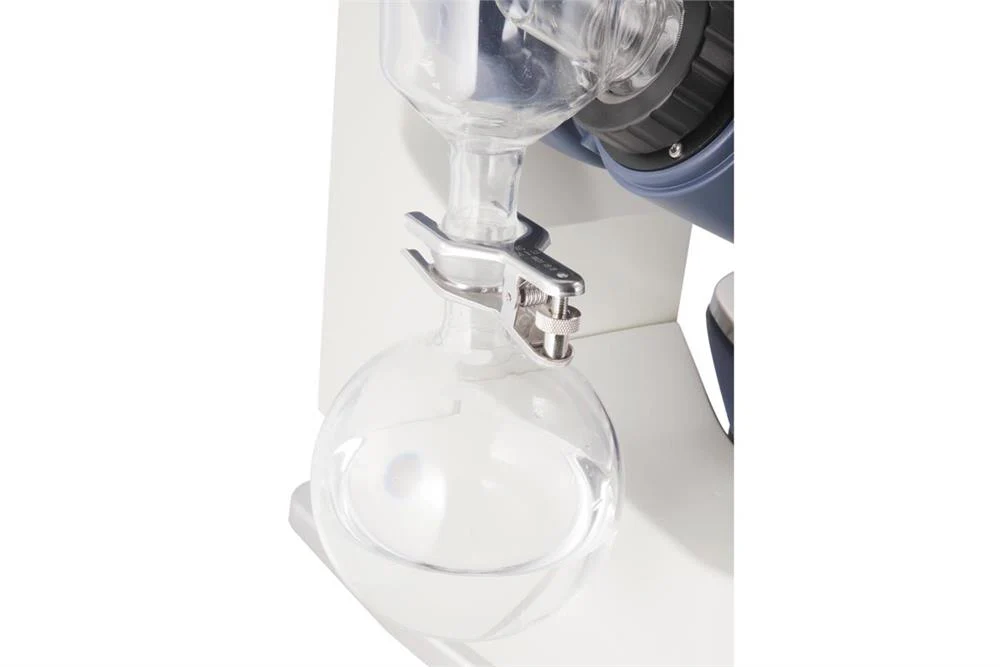

Glassware	Evaporating flask Standard evaporating receiving flask Optional distilling spider with 5 flasks
Timer	1 - 999 minutes
Water Chiller (Optional)	Forced Air Cold Recirculating Water Chiller with 9 Liters Tank, 10L / min Flow - EQ-KJ3000
Dimension	465 mm L x 457 mm W x 583 mm H
Net Weight	15 kg
Compliance	NRTL Certified
