10 L Rotary Evaporating and Distilling System (Water Chiller & Vac. Pump optional) RE-1002
HomeStore

10 L Rotary Evaporating and Distilling System (Water Chiller & Vac. Pump optional) RE-1002

10 L Rotary Evaporating and Distilling System (Water Chiller & Vac. Pump optional) RE-1002

W RE-1002  is a rotary evaporator with a 10 L rotary flask and 5 L collector. It is an essential tool for the efficient removal of solvents from samples in chemical research. The RE series rotary evaporator heats the rotating flask in a water/oil bath at a pre-set speed, causing the solvent to evaporate. It then cools the vaporized material through a pressure-reducing cooling unit consisting of two condensers and a vacuum acquisition device. This is a system for separating or distilling materials.

SPECIFICATIONS:

Features
  • Digital control for rotating speed and heating temperature
  • Speed range from 0 to 120 rpm
  • Stainless steel heating bath with a temperature range from room temperature to 180 °C
  • Vertical condenser with 0.57 m^2 cooling surface
  Power
  • AC 208 - 240 V, 50/60 Hz, single phase
  • Maximum power: 3500 W
    • Heating bath:   3000 W
    • Rotating Motor:  200 W
 Rotating
  • DC motor for rotating  with digital speed display
  • Speed Range: 0 - 120 rpm
  • Stroke (for lifting): 150 mm
 Heating
  • The stainless steel heating bath: 10 Liters
  • Temperature range: RT -  99 °C by water bath, and 200 °C max. by oil bath
  • Temperature accuracy:  +/- 0.2 °C
  • Ambient environment temperature: 5 - 40 °C
Glassware
  • Evaporating flask:  10 L
  • Standard evaporating receiving flask:  5 L
  • Manually lifting
Evaporating Speed:
  • ~ 3.2 L/hr for water
  • ~ 8.6 L/hr for ethanol
  • Condensation area: 0.57 square meters

Vacuum

and Water Chiller (Optional)
  • One oilless vacuum pump, made in Germany with  Max. vacuum 2.62 Torr ( Click Pic. 1 for details specs)
  • A 16 L/minute and  5- 30 °C recirculating water chiller,   5- 30 °C (Click Pic. 2 for details specs)
 Oilless vacuum pump  Pic. 1    Water chiller  Pic. 2
Compliance
  • CE
  • NRTL or CSA certification is available upon request
$3,752.00

Original: $10,720.00

-65%
10 L Rotary Evaporating and Distilling System (Water Chiller & Vac. Pump optional) RE-1002—

$10,720.00

$3,752.00

More Images

10 L Rotary Evaporating and Distilling System (Water Chiller & Vac. Pump optional) RE-1002 - Image 2

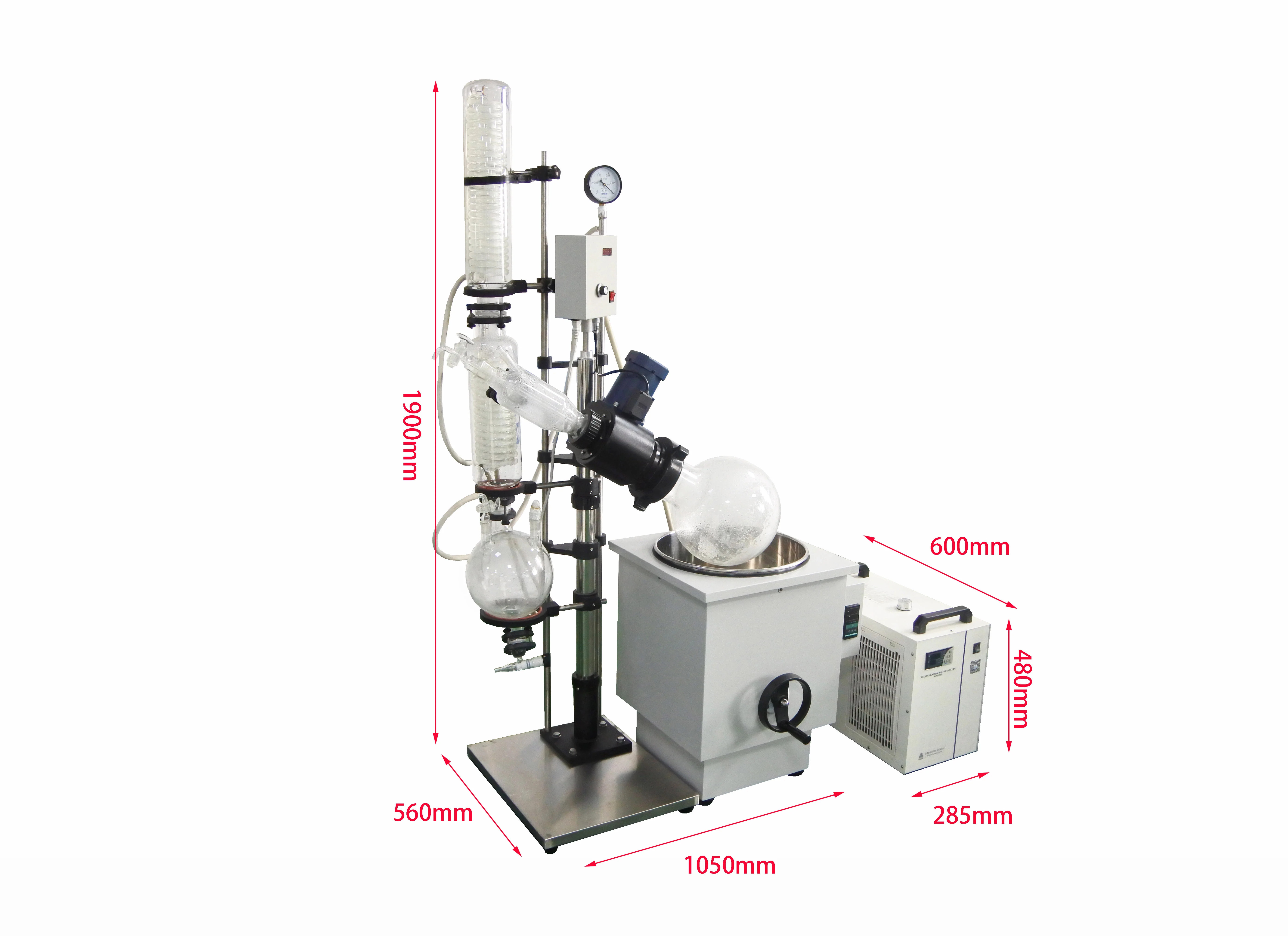

10 L Rotary Evaporating and Distilling System (Water Chiller & Vac. Pump optional) RE-1002 - Image 3
