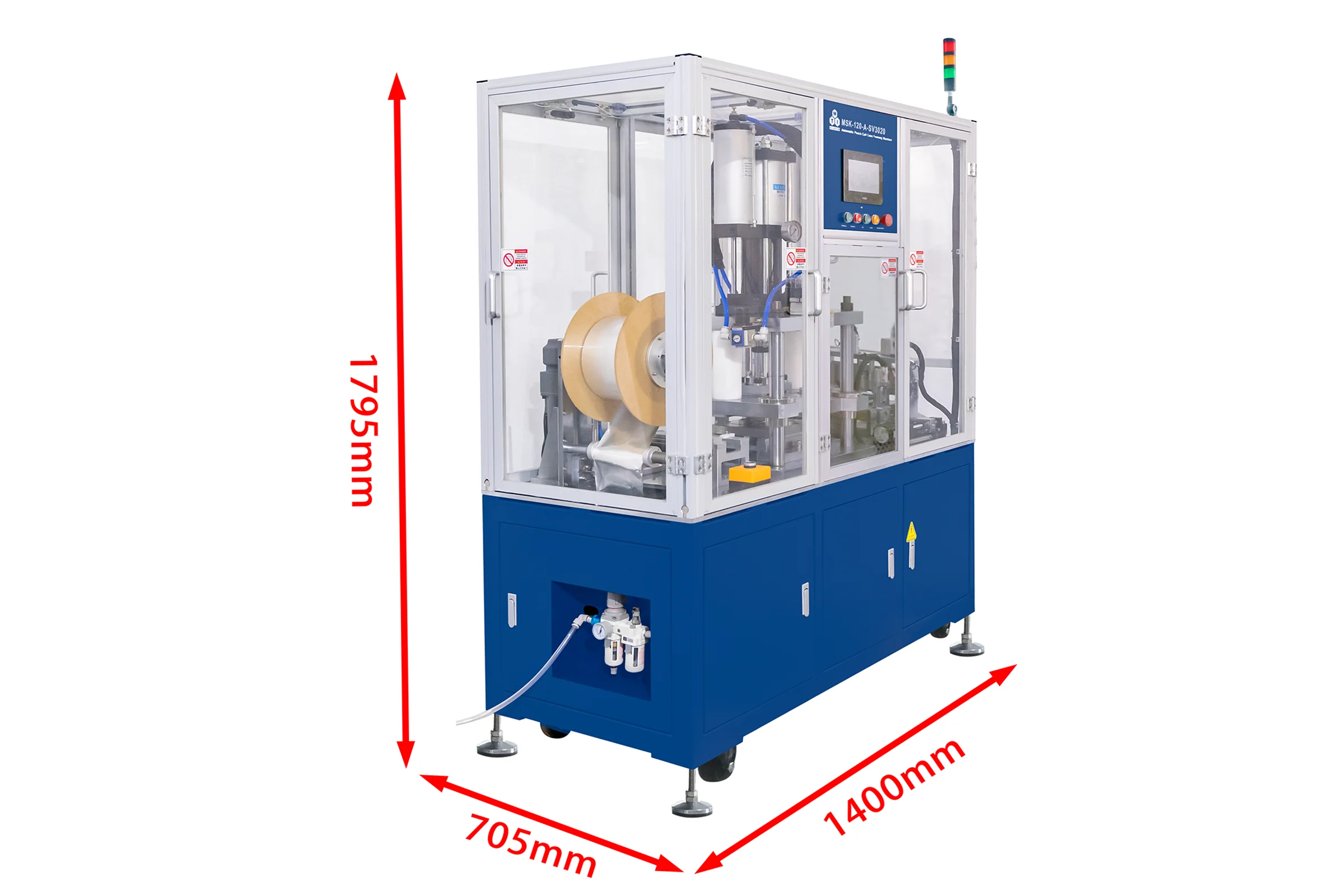

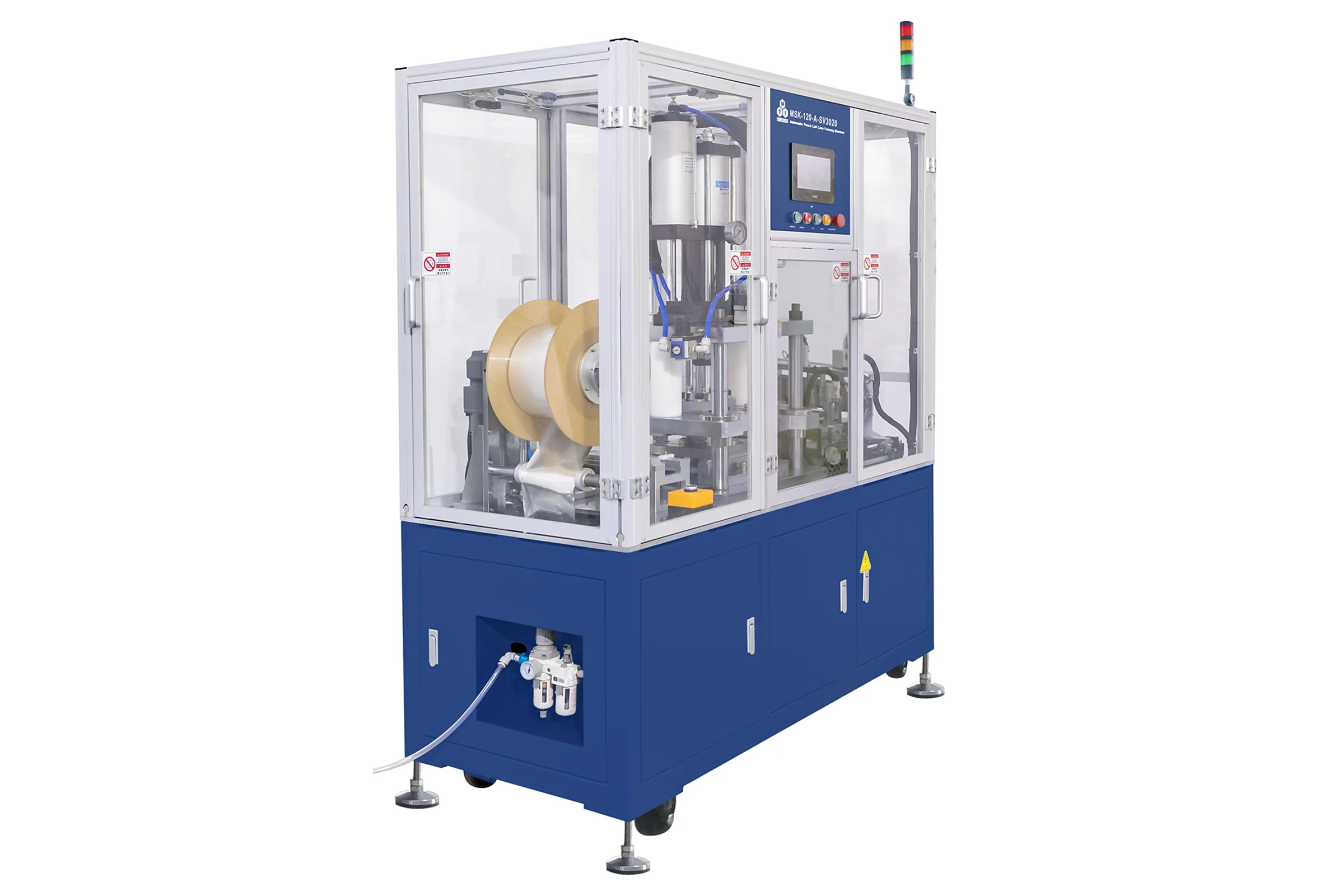

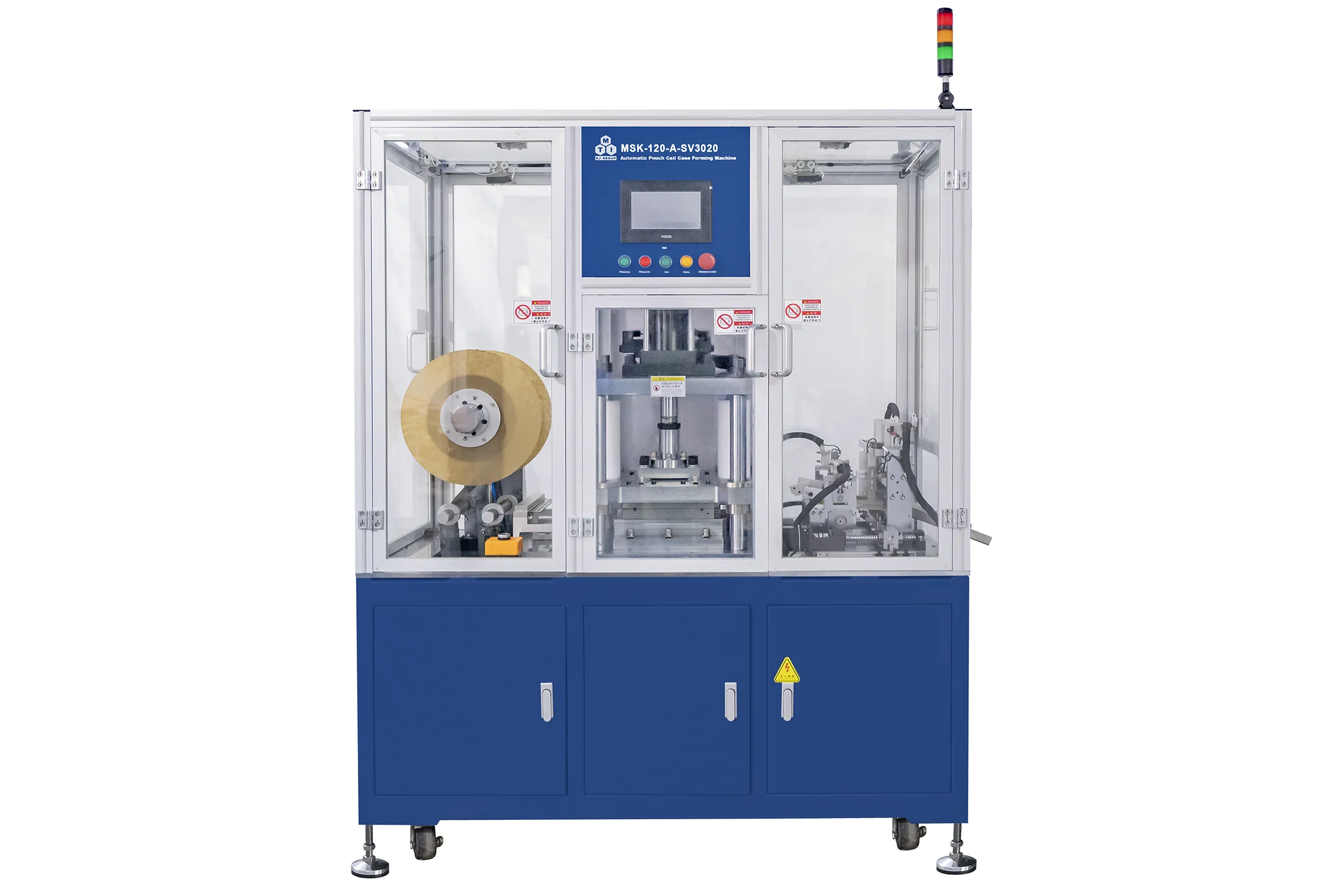

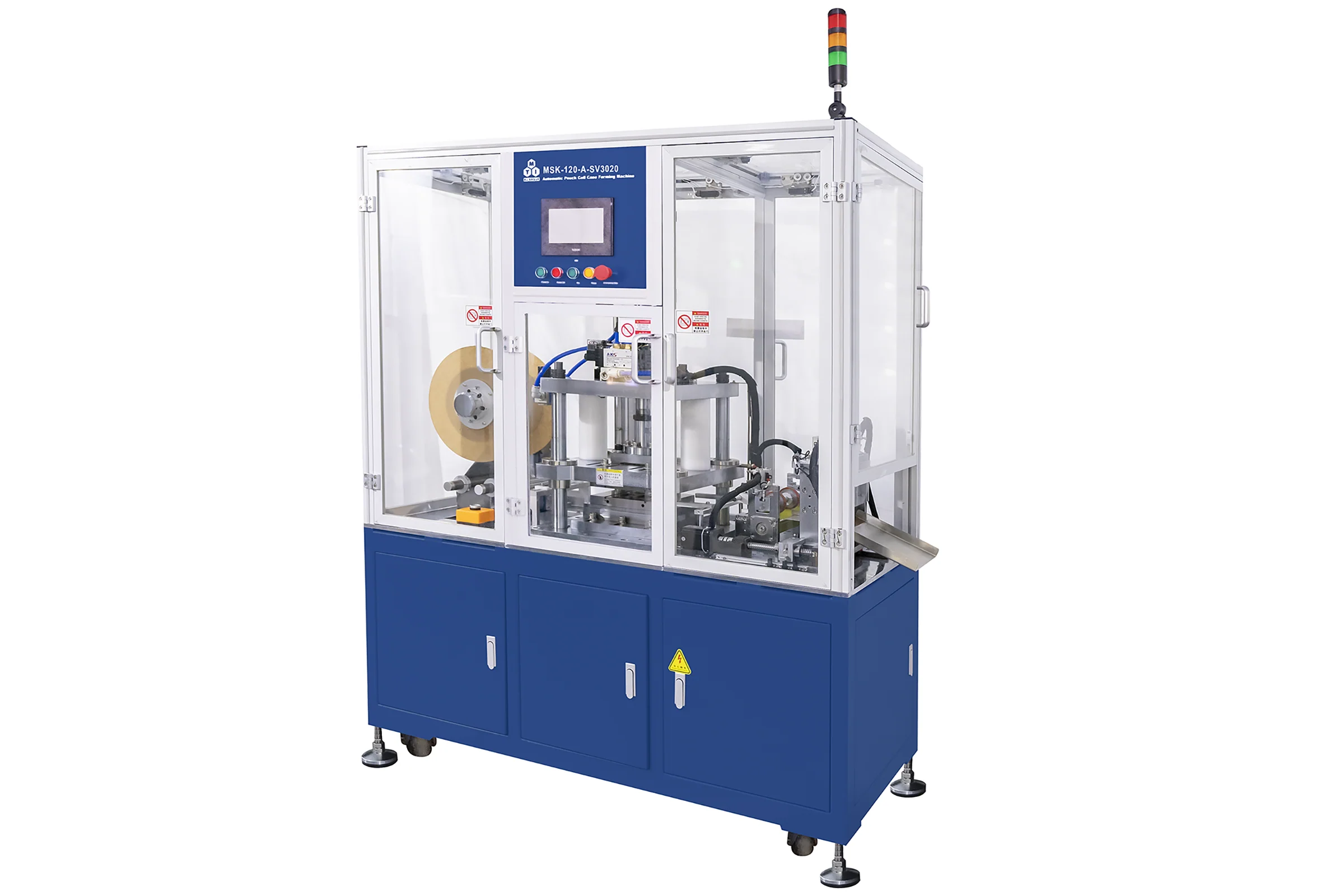

R2R Automatic Pouch Cell Case Forming Machine with Controllable Punching Depth (L300mm*W200mm) - MSK-120A-SV3020

MSK-120A-SV3020 is an automatic roll-to-roll pouch case forming machine with controllable punching depth for pouch cell production. The punched pouch cell cases can be slit into defined cell length by cutting blade.

SPECIFICATIONS:

Features	Automatic, high-speed operation for maximum productivity Touch screen control of forming/punching process: punching depth, maintain time, delay time Automatic roll feeding and adjustable cutting length Integrated IR sensors for safe operations
Voltage	AC220V±10%, 50/60 Hz, single phase, 3.5 kW
Input Film Size	Maximum film width: 200 mm Maximum diameter of the film roll: <400 mm
Punching Die	Max die dimension: L300 mm x W200 mm Punching depth: 1-7mm，Resolution: ±0.1mm Customized die is available upon request The die set is not included with the tool! Please provide your desired size of the customization die when RFQ
Cutting Blade	Max. width: 230 mm Edge cutting resolution: ±0.4mm Cutting lifetime: 100 million times
Air Pressure Requirement	0.6 - 0.8 MPa Gas consumption: 100 L/min Boost pressure cylinder: 10 T Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Al Laminated Film	Film thickness: 0.10 - 0.20 mm acceptable Al laminated film is available upon request
