Quartz Tube Nozzle (6 mm Dia.) for Atomizing Spray up to 1100°C - TQ6D-SP
HomeStore

Quartz Tube Nozzle (6 mm Dia.) for Atomizing Spray up to 1100°C - TQ6D-SP

Quartz Tube Nozzle (6 mm Dia.) for Atomizing Spray up to 1100°C - TQ6D-SP

TQ6D-SP Series are atomizing spray nozzles made of a quartz tube with max. working temperature 1100ºC. The tube diameter is 6 mm, which can feed through 1/4" fitting into a furnace. It is an ideal tool for DIY of pyrolysis spraying or particle granulation devices for high temperatures.

SPECIFICATIONS

    Features
  • Made of the high purity of quartz tube with compressive gas inlet and liquid inlet
  • 4 mm OD liquid inlet port  with plastic fitting and  PTEF tube ( 1.3mm OD x 0.3 mm ID x 880 mm L)
  • 4 mm OD gas inlet  which can pass 0.2 MPa Max pressure to deliver liquid atomizing without pump  (~ 4mm ID rubber tube and clamp are required)
  • Well packed in a box for safe delivery and storage
    Atomizing Nozzle
  • Spray nozzle diameter:       0.3 mm
  • Max. working temperature: 1100ºC
  • Max. working pressure:       0.2 MPa
  • Atomizing injection rate:      Dependedn on gas pressure or control by syringe pump as the below
  •
 Dimension

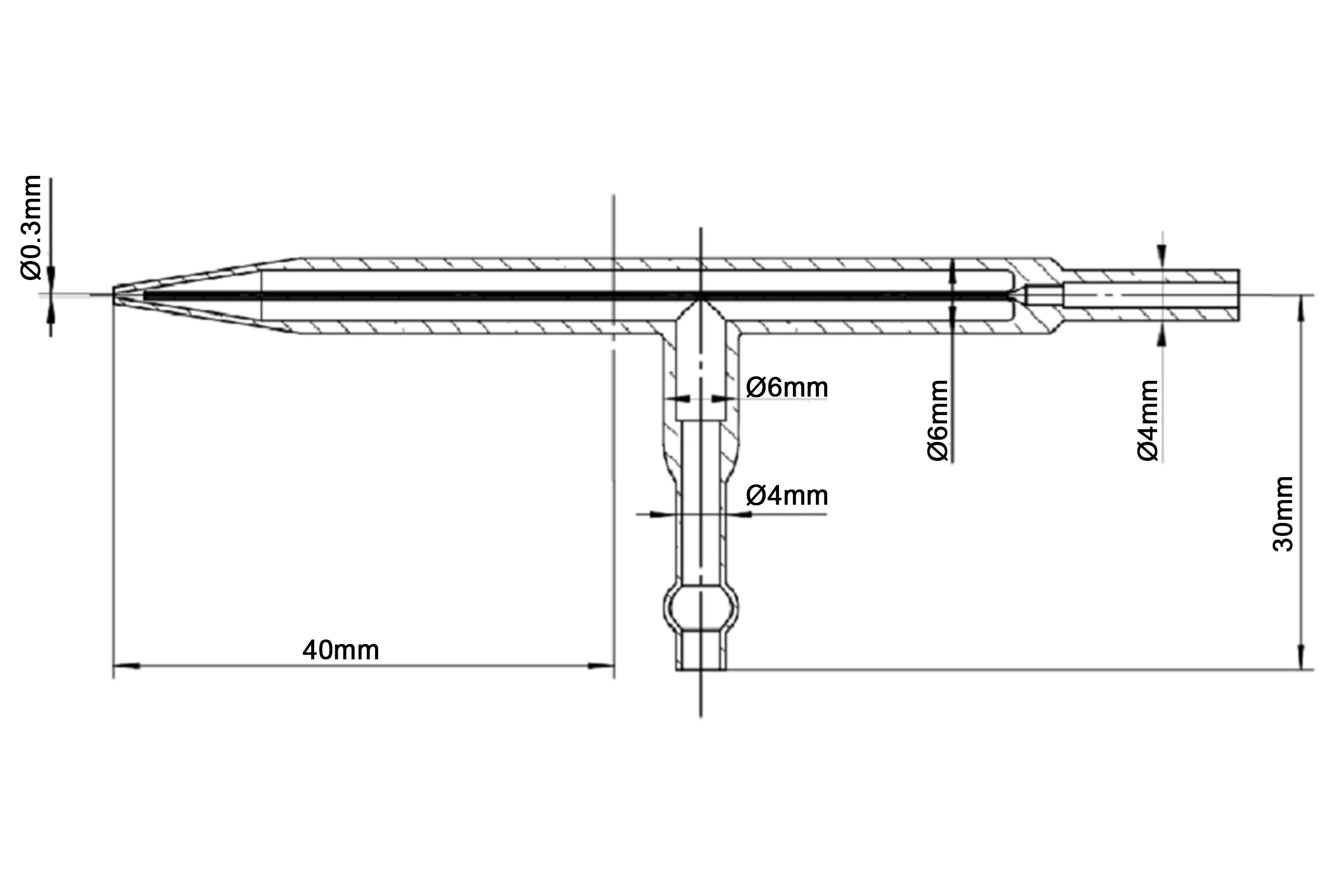

  • Standard size: 40 mm length

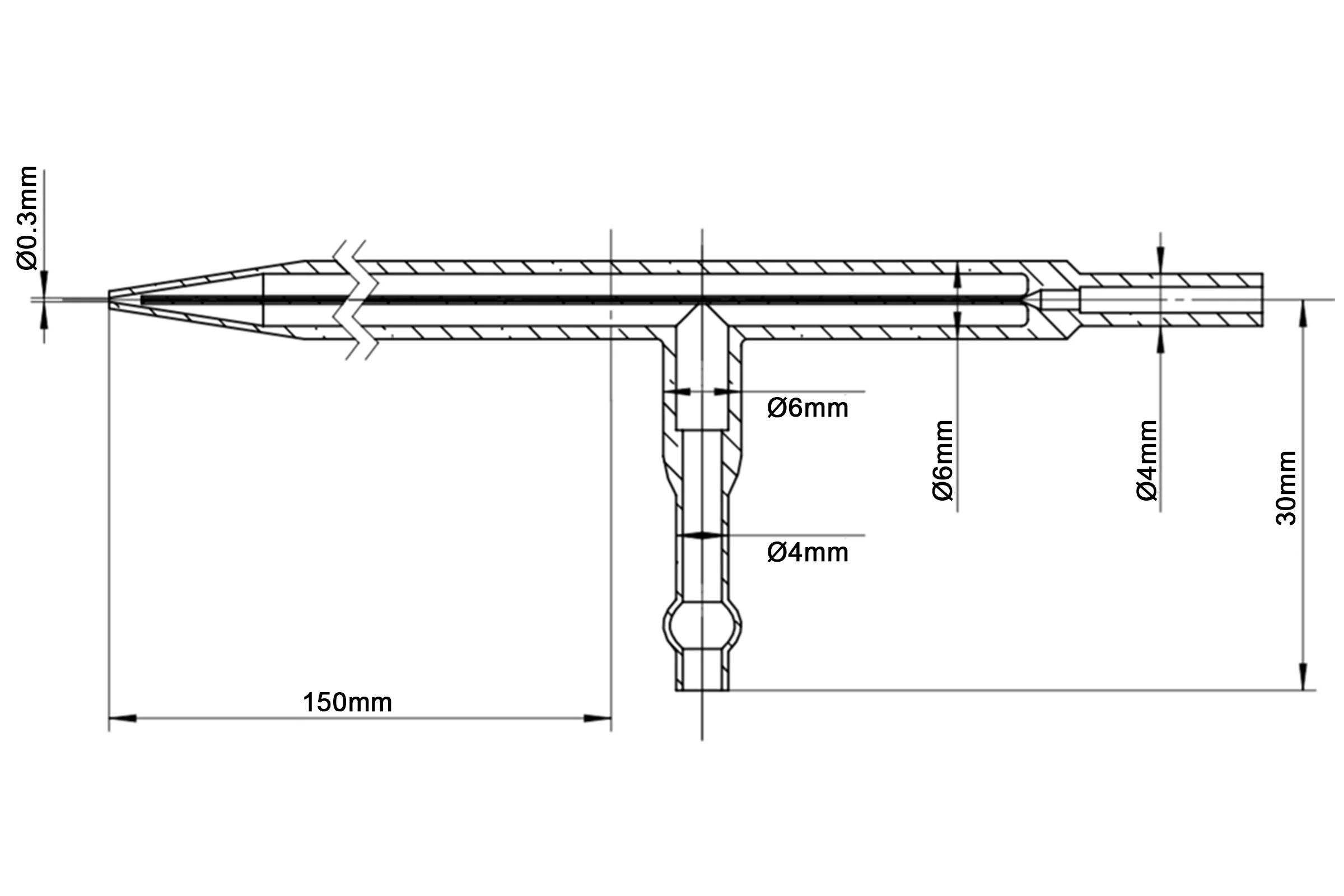

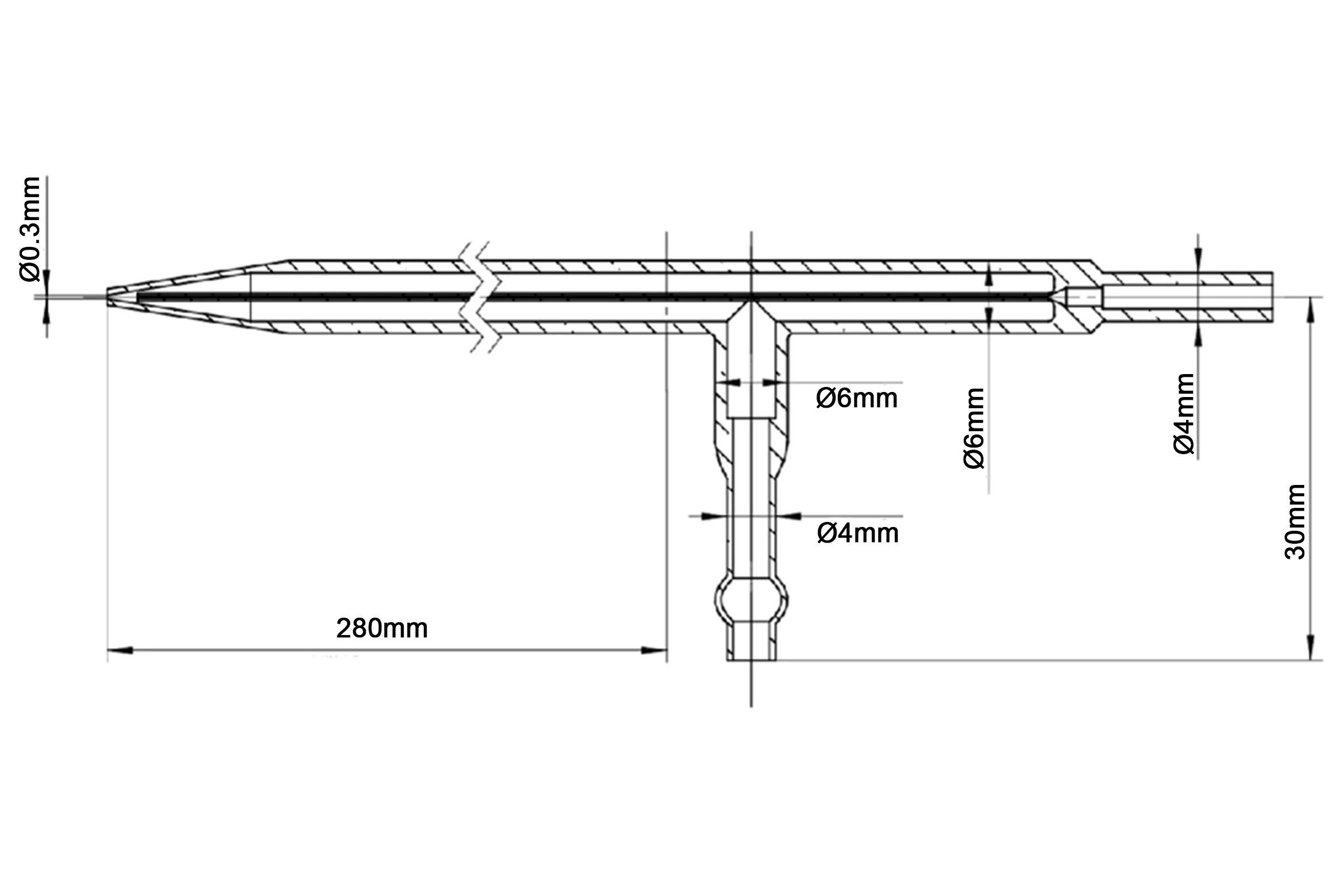

  • Optional:   150mm L and 280 mm L
  • Please choose from the product option

Optional
  • 1/4" fitting
  • Water cold flange
  • Bubbler for liquid
  •
Operation Video          40 mm L nozzle        280 mm L nozzle
