Multi-Stack Quartz Thermal Block: 90 mm Dia for 100 mm O.D Tube Furnace - QTB9047

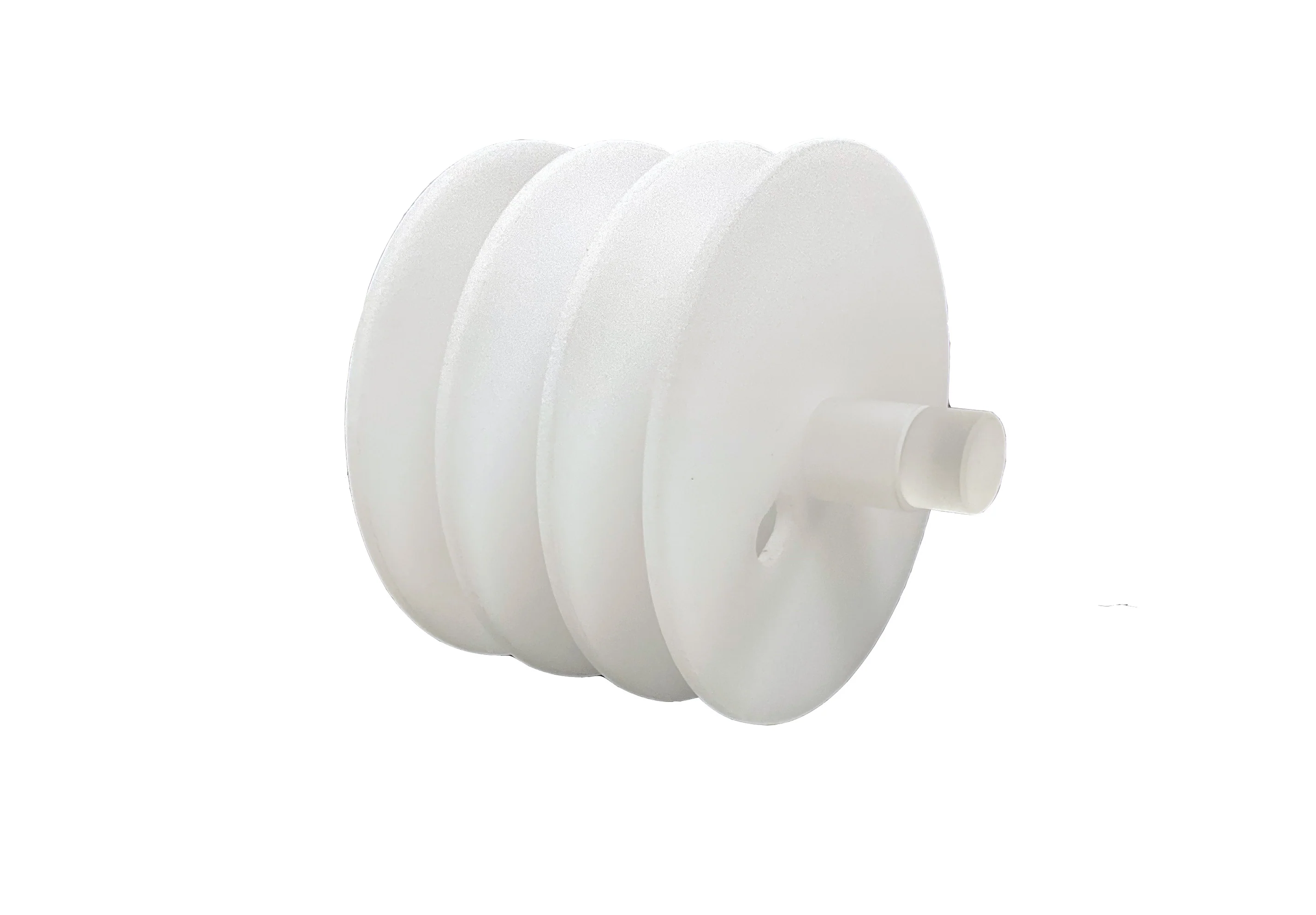

Multi-Stack Quartz Thermal Block is designed for use with 4" Nominal (100mm O.D X 90mm I.D) Quartz processing tube. Compared with conventional ceramic thermal block, quartz thermal blocks help to achieve higher vacuum level and avoid potential contamination. The assembly consists of multi-stack quartz discs integrated with a thermocouple port and quartz washers

Fit:

• OTF-1200X-100
• OTF1200XII100
• OTF1200XIIIS4

• OTF1200XIIIC4

• OTF-1200X-III-4-UL
• OTF1200XSHNG4
• GSL1700X100
• GSL1700XUL
• OTF-1200X-V-OD



Specification:

Material	Quartz discs, washers, and nuts

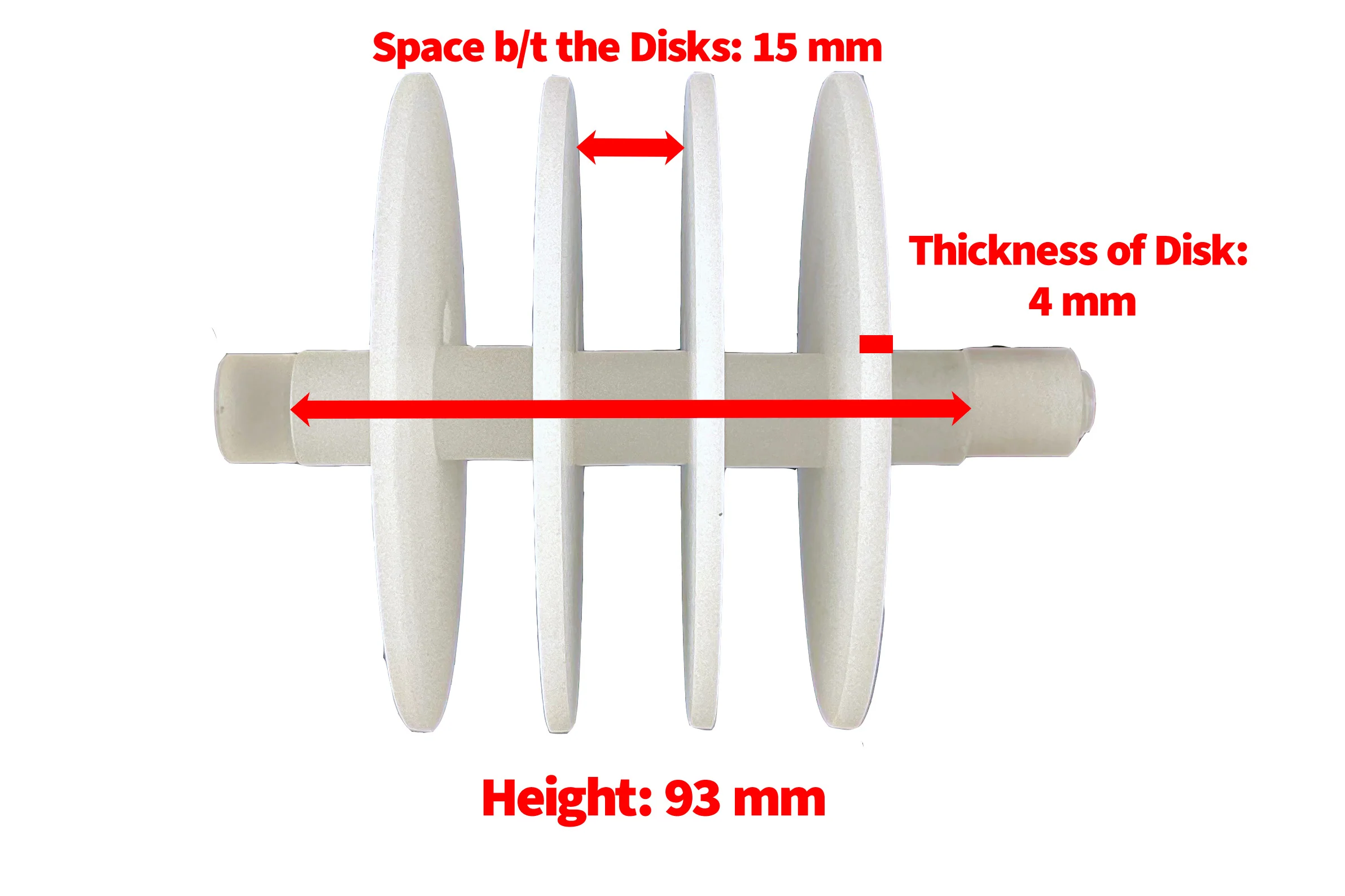

Thickness of Quartz Disc	4 mm

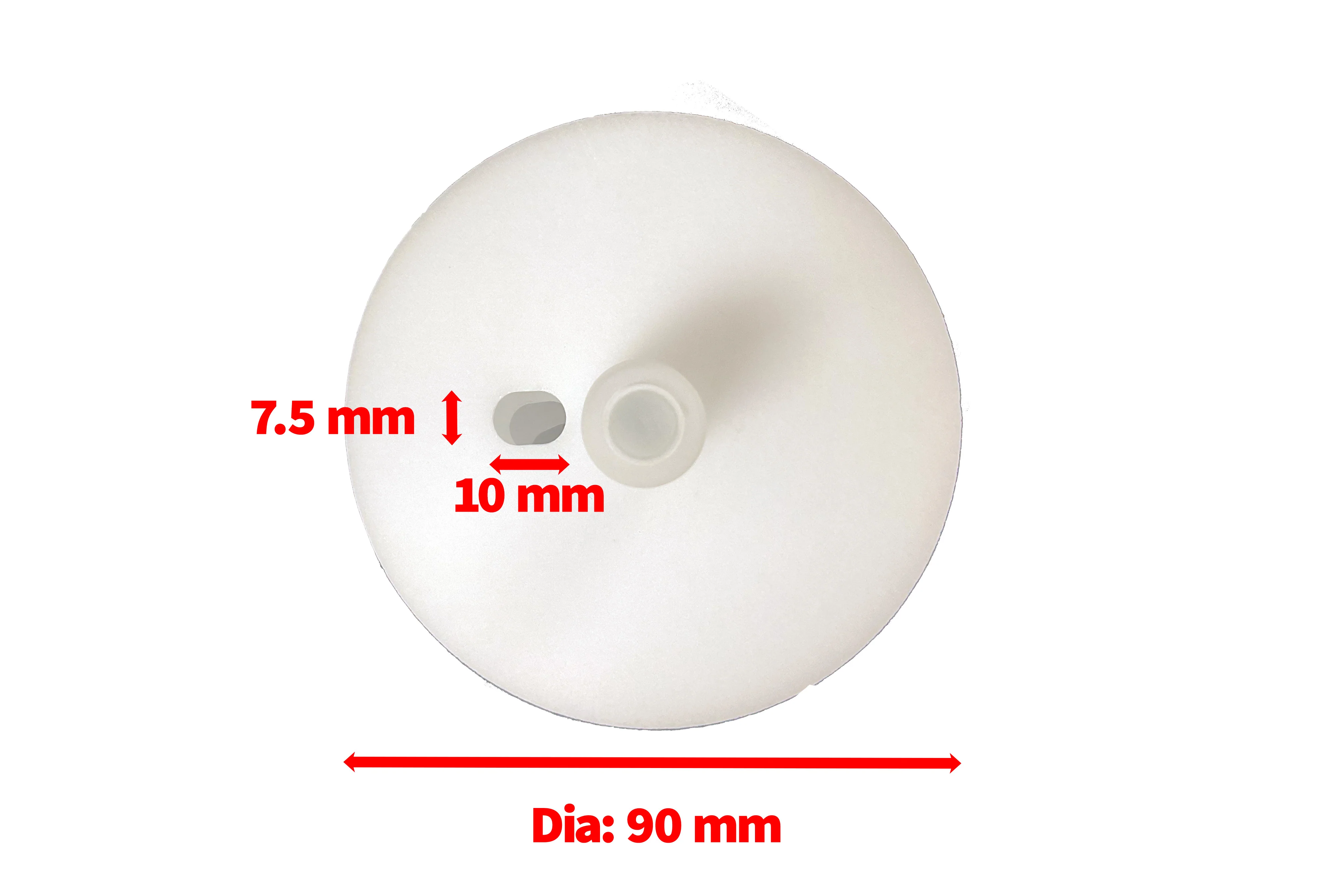

Diameter of Quartz Disc	90 mm
Height of Quartz Connector	15 mm

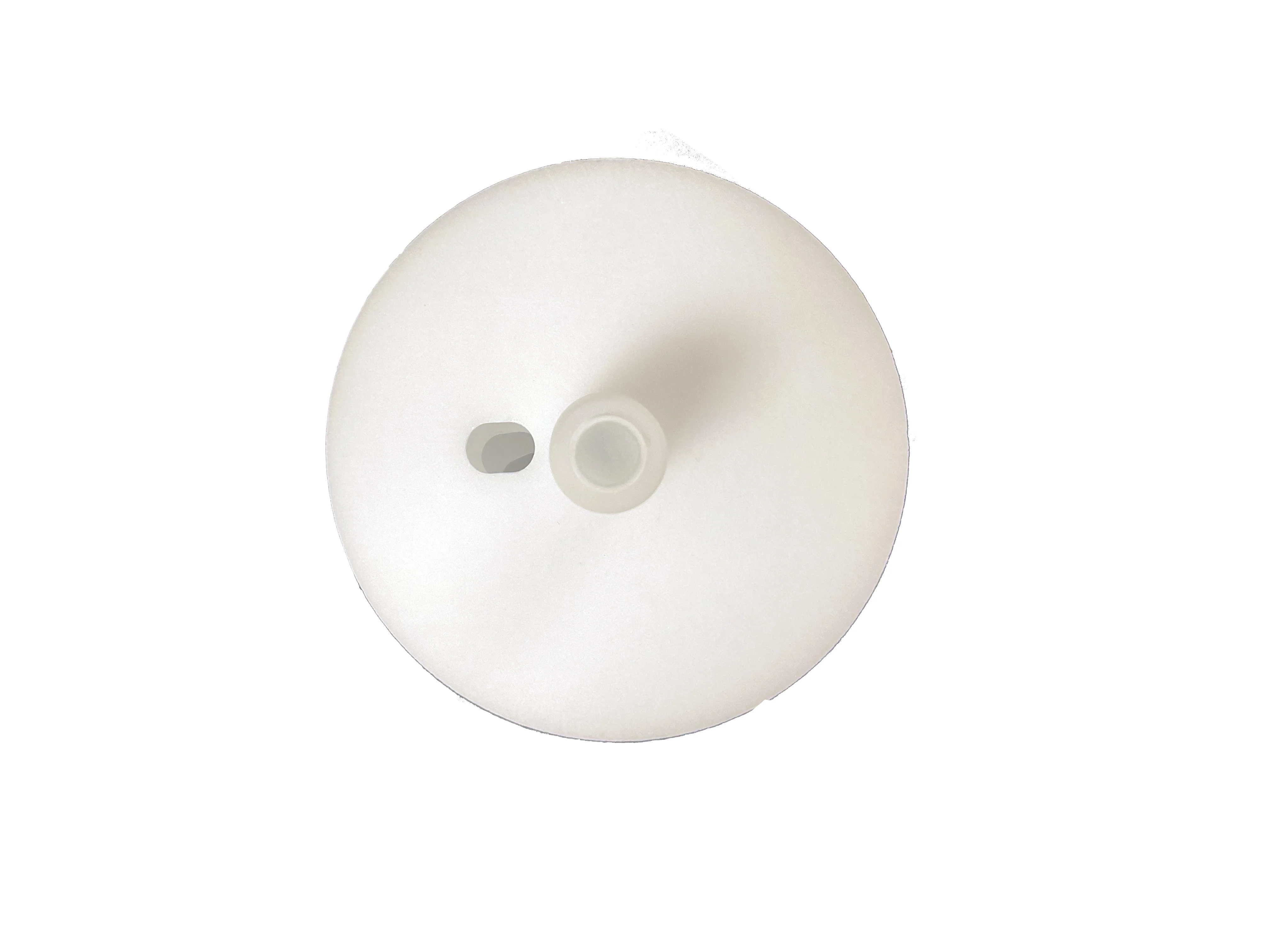

Port for Thermocouple	10mm x 7.5 mm
Standard Height of Themal Block	93 mm





Inspect your delivery:

Please check the package for any damages before accepting delivery. If damages are detected, retain all packing material, document the conditions with photos, and report the issues immediately to the carrier and MTI.



No Warranty:

Kindly notice that this item is a consumable part and is not covered under warranty. Please conduct a thorough inspection for any defects before use.
