Precise Heating Plate (L200 mm x W200 mm, Max. 200°C) for Perovskite Solar Cells- MSK-PSP-HPL2020
HomeStore

Precise Heating Plate (L200 mm x W200 mm, Max. 200°C) for Perovskite Solar Cells- MSK-PSP-HPL2020

Precise Heating Plate (L200 mm x W200 mm, Max. 200°C) for Perovskite Solar Cells- MSK-PSP-HPL2020

MSK-PSP-HPL2020 is a precise heating plate up to 200 ÂșC with a 200 mm× 200 mm heating area. The fast heating speed and uniform heating distribution make it suitable for drying of perovskite solar cells (thoroughly remove solvent and ligand).

SPECIFICATIONS:

Heating Element & Input Power
  • Input voltage: AC220V±10%, 50/60Hz, single phase
  • Power: 2000 W
Heating Plate
  • Heating area: L200 mm x W200 mm
  • Aluminum alloy
  • Max. working temperature: 200°C
  • Temperature control accuracy: ±0.5%FS
  • Temperature uniformity: ±1%FS
  • Temperature increase speed: Max≀10℃/min
Dimension
  • L300mm X W320mm X H180mm
Weight
  • ~15 kg
Compliance CE certified
NRTL or CSA certification is available upon request at an extra cost.



$1,399.30

Original: $3,998.00

-65%
Precise Heating Plate (L200 mm x W200 mm, Max. 200°C) for Perovskite Solar Cells- MSK-PSP-HPL2020—

$3,998.00

$1,399.30

More Images

Precise Heating Plate (L200 mm x W200 mm, Max. 200°C) for Perovskite Solar Cells- MSK-PSP-HPL2020 - Image 2

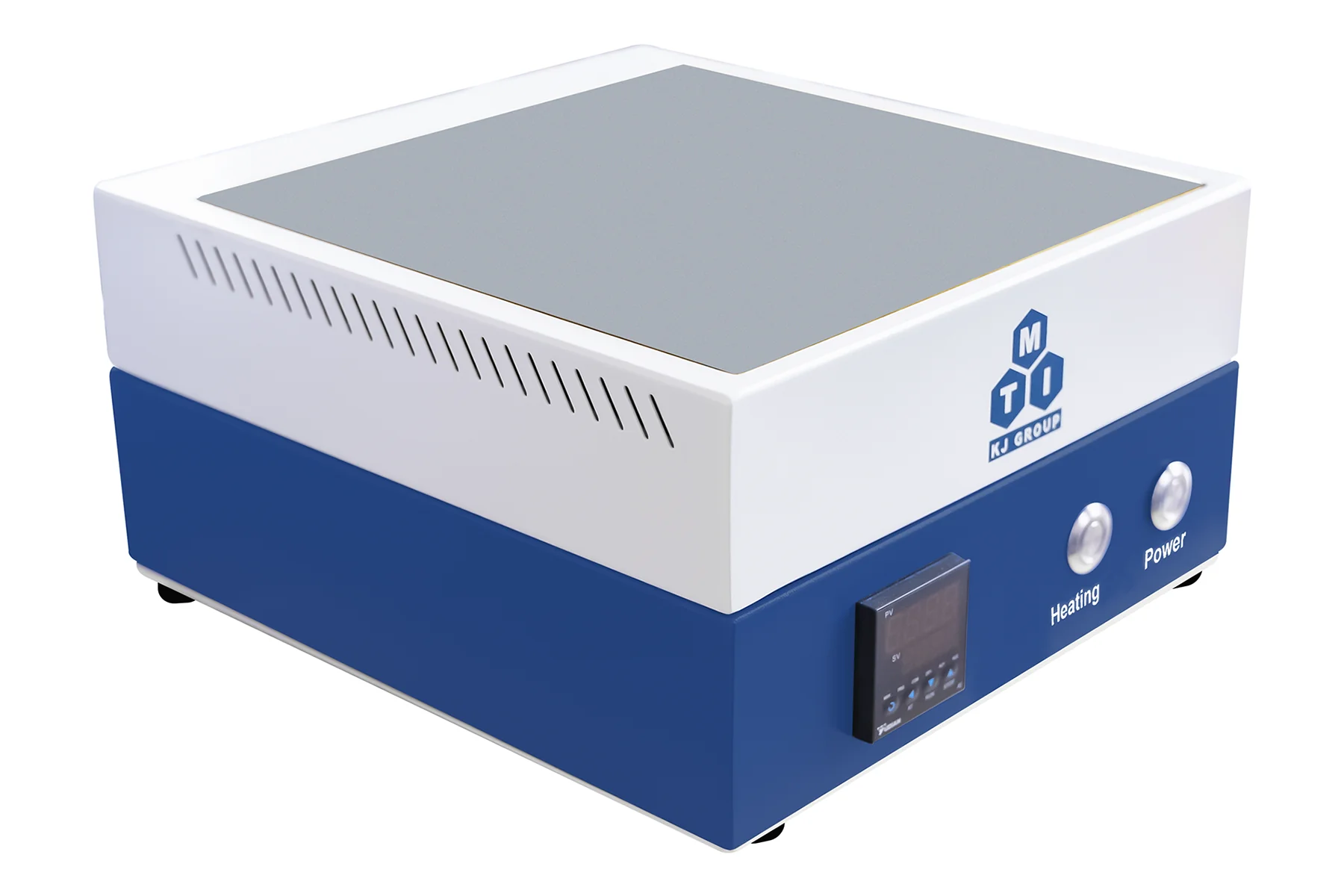

Precise Heating Plate (L200 mm x W200 mm, Max. 200°C) for Perovskite Solar Cells- MSK-PSP-HPL2020 - Image 3

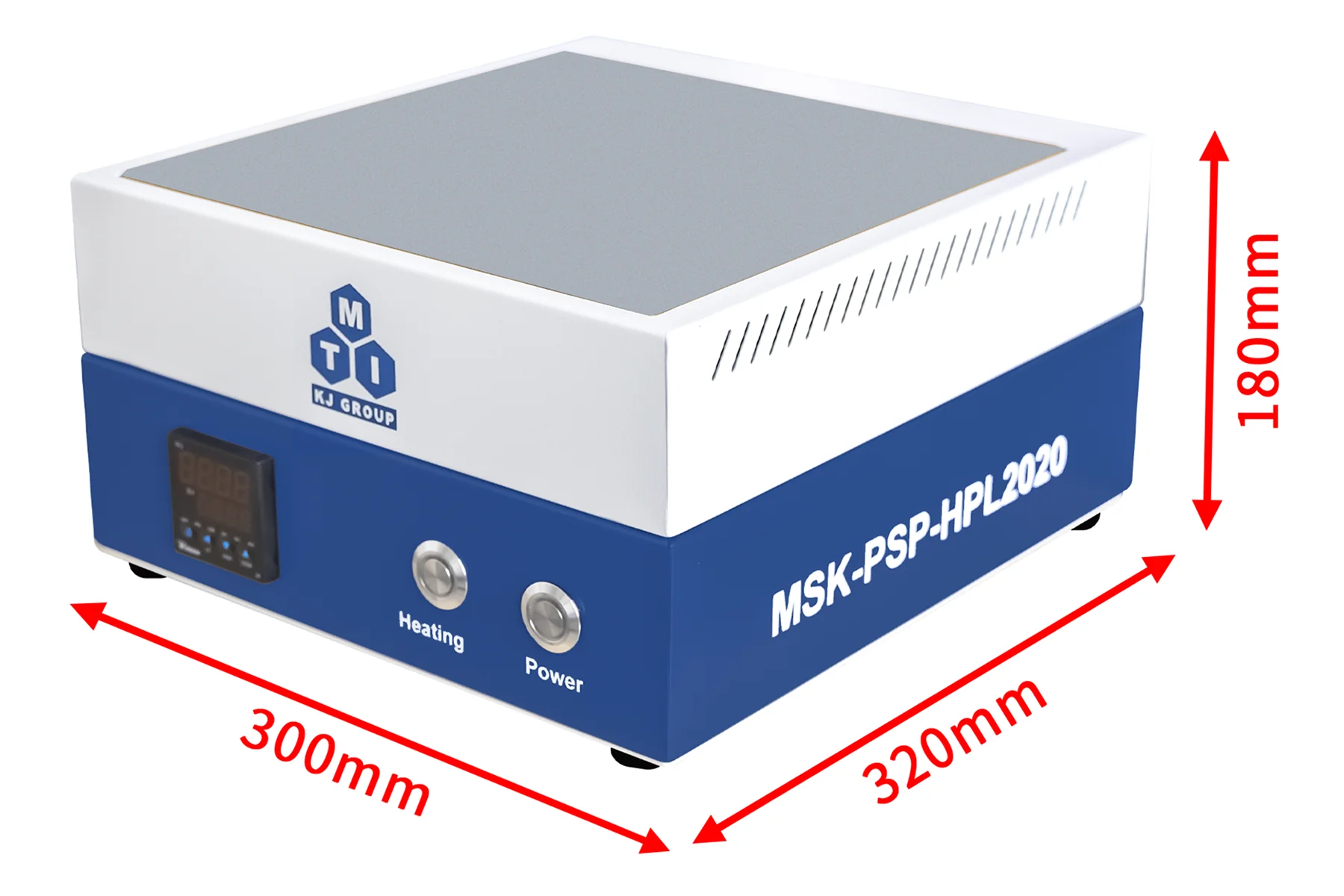

Precise Heating Plate (L200 mm x W200 mm, Max. 200°C) for Perovskite Solar Cells- MSK-PSP-HPL2020 - Image 4

Precise Heating Plate (L200 mm x W200 mm, Max. 200°C) for Perovskite Solar Cells- MSK-PSP-HPL2020

MSK-PSP-HPL2020 is a precise heating plate up to 200 ÂșC with a 200 mm× 200 mm heating area. The fast heating speed and uniform heating distribution make it suitable for drying of perovskite solar cells (thoroughly remove solvent and ligand).

SPECIFICATIONS:

Heating Element & Input Power
  • Input voltage: AC220V±10%, 50/60Hz, single phase
  • Power: 2000 W
Heating Plate
  • Heating area: L200 mm x W200 mm
  • Aluminum alloy
  • Max. working temperature: 200°C
  • Temperature control accuracy: ±0.5%FS
  • Temperature uniformity: ±1%FS
  • Temperature increase speed: Max≀10℃/min
Dimension
  • L300mm X W320mm X H180mm
Weight
  • ~15 kg
Compliance CE certified
NRTL or CSA certification is available upon request at an extra cost.
