500°C Heating Plate (350L x 240W, mm) with Optional Vacuum Chuck & Pump - HP-500V

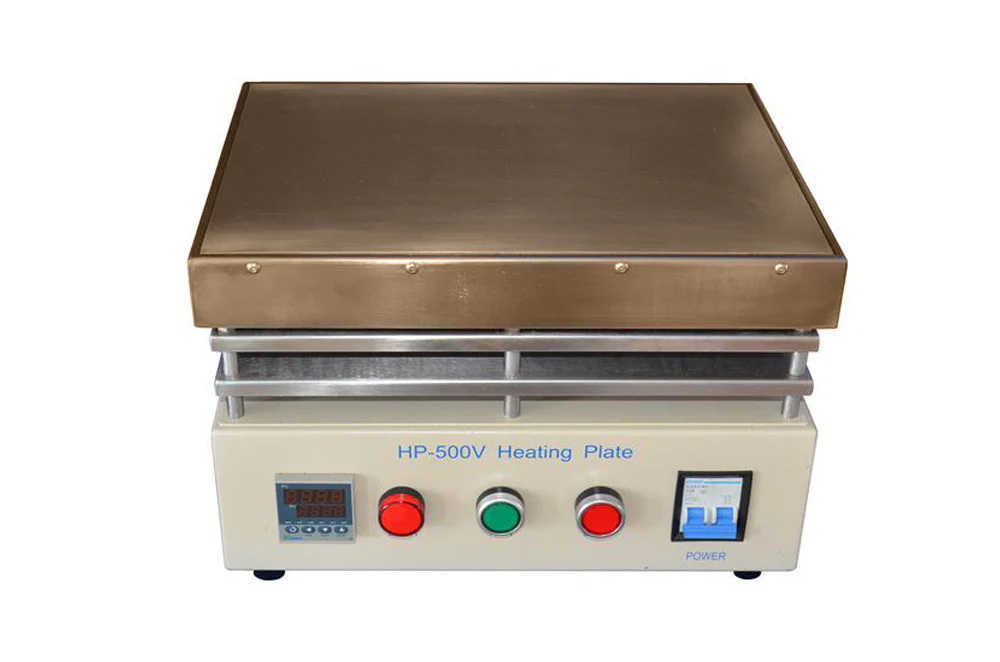

HP-500V is a heating plate up to 500ºC with a 350mm×240mm heating area. A heating plate with vacuum chuck and pump is optional from the product option.

SPECIFICATIONS:

Heating Element & Input Power	Max. working temperature: 500°C < 8hrs (Air, vacuum, or inert gas) Input voltage:208 - 240 VAC, 50/60Hz, single phase Power: 3500 W

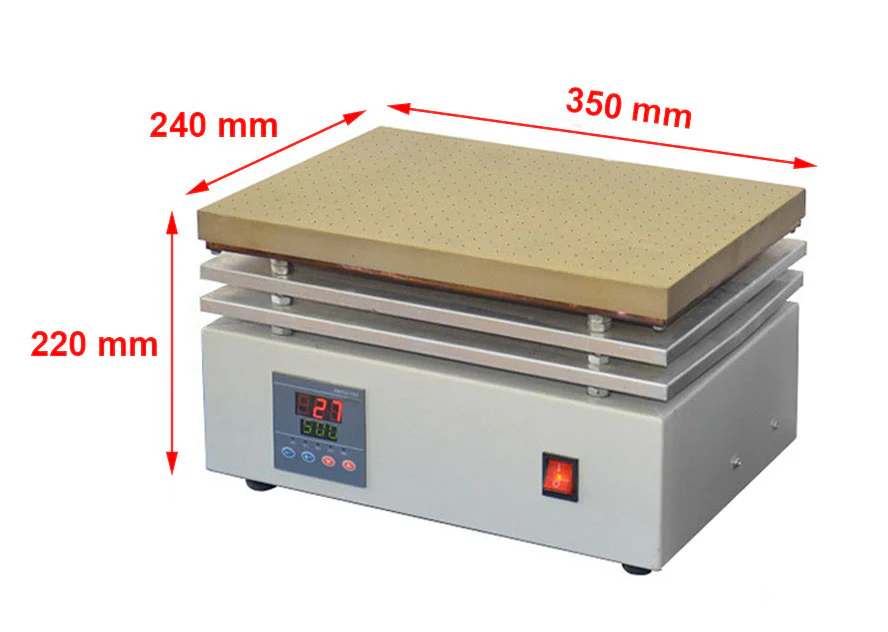

Heating Plate	Heating/vacuum area: 350 L x 240 W mm Copper alloy heating plate Built-in heating elements Please see the below picture for the temperature uniformity.  The vacuum chuck is optional. 0.5 mm diameter holes are distributed on the vacuum plate to sock a sample holder
Temperature Control	Single-point temperature controller. (30-segment programmable temperature is available at an extra cost.) PID control and autotune function.  Max. Working Temperature: 500oC ± 1°C accuracy

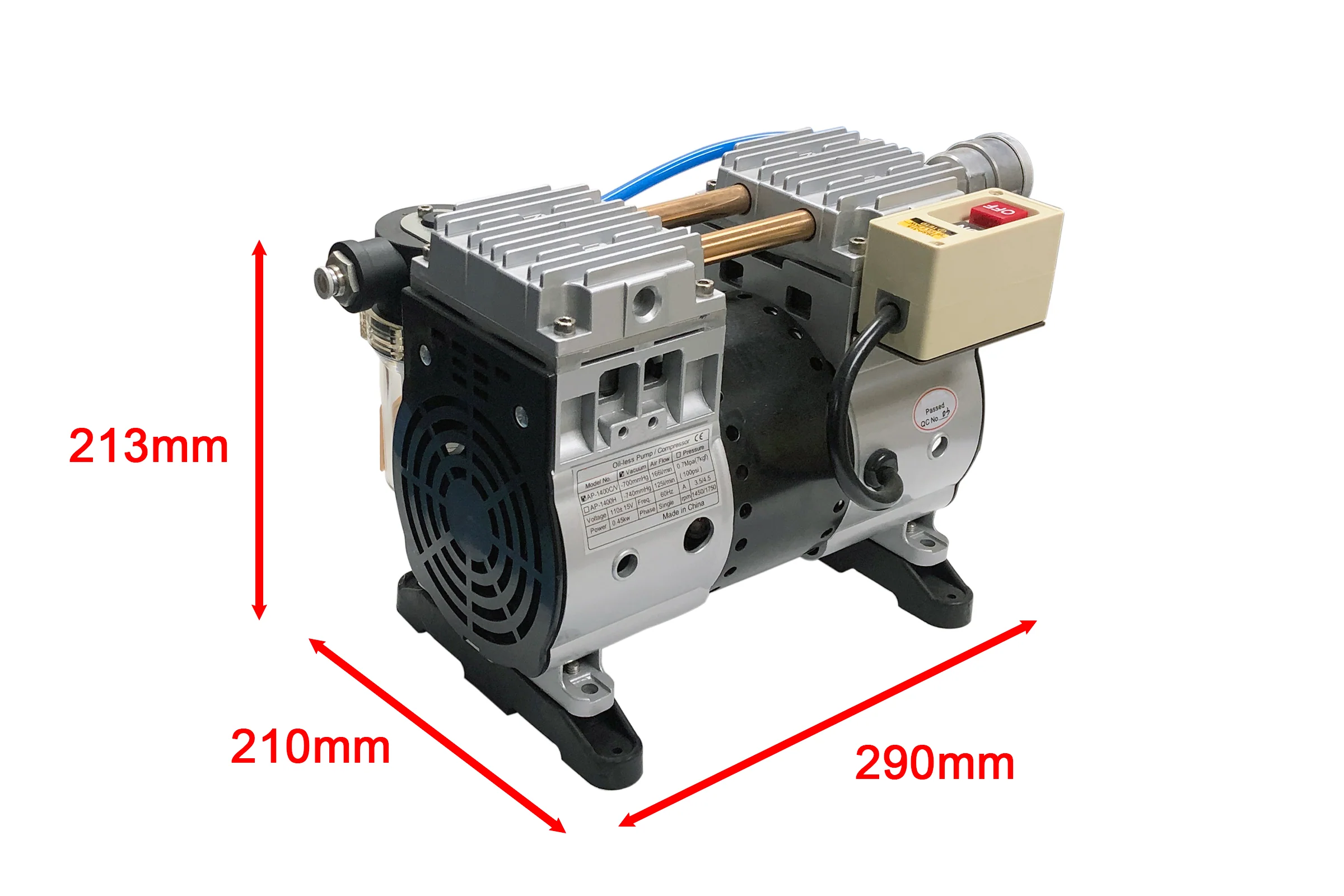

Vacuum	One oilless vacuum pump is included for the vacuum chuck option, please select on the options bar. 8 mm push-to-connect vacuum port on the vacuum chuck.
Compliance	CE certified
