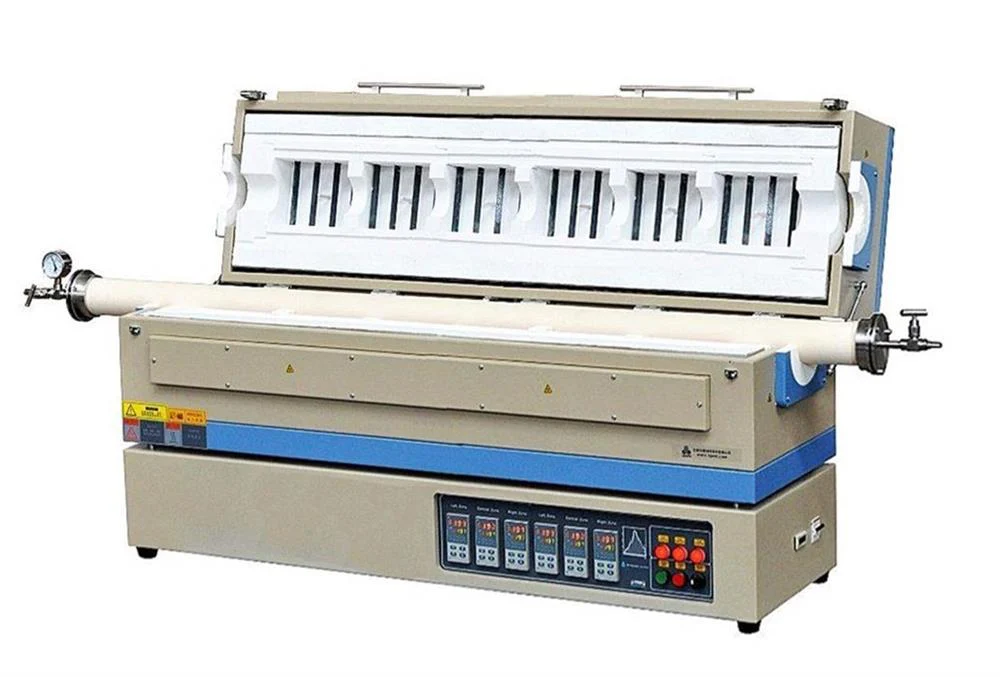

1700°C Six Zone Split Tube Furnace with Flange & Alumina Tube (60 mm O.D.) - OTF-1700X-6Z

OTF 1700X 6Z is a six-zone split tube furnace with an alumina tube and air-tight flange up to 1700°C.

Features

1. Temperature up to 1700°C
2. Heating length 1400 mm
3. 6 heating zones, 6 individual PID temperature controllers.
4. Ø60 mm × 1800 mm alumina tube

SPECIFICATIONS:

Power	208-240 VAC, 3 ph, 50/60Hz, 100 A, 30 kVA Options for 380 - 415 VAC, 460 VAC, or 480 VAC are all available.
Furnace Case	Double-layer mild steel case with cooling fans. Surface temperature < 70°C
Pressure	< 3 psig
Working Temperature	1700°C , < 60 minutes 800 - 1600°C, continuous <1450°C under vacuum
Heating rate	<10°C/min.
Processing Tube & Flanges	Alumina tube Ø60 × Ø51 × 1800 mm One set of water-cooled vacuum flange is included Two alumina fibrous thermal blacks are included.
Heating Zones	Six heating zones      200+ 200 + 300 + 300 + 200 +200 mm  Total heating length  1400 mm Constant Temperature Zone:   800 mm  +/- 5ºC.  Built-in heating zone space creates a thermal gradient up to 10ºC/ cm
Uniform Zone	1000 mm @ ± 5°C @ 1400°C with all zones at the same temperature.
Heating Elements	1800°C Grade MoSi2 Heating Element
Thermocouple	B type
Temperature Controllers	6 PID programmable temperature controllers 50 temperature segments Overheating and broken thermocouple interlock/alarm. ±1°C control accuracy 0.3°C temperature resolution RS485 serial port with LabVIEW-based software
PC Communication	Complementary LabVIEW-based Temperature Control System (MTS03) to edit temperature profiles, manage recipes, and data recording.
Compliance	CE Certified NRTL (UL61010) or CSA certification is available upon request at extra cost.
