NGG (Nd3Ga5O12) Substrate (111 ) 10x10x0.5 mm, 1 SP - NGGc101005S1

NGG (Nd3Ga5O12) Substrate (111 ) 10x10x0.5 mm, 1 SP - NGGc101005S1

NGG (Nd3Ga5O12) Substrate (111 ) 10x10x0.5 mm, 1 SP - NGGc101005S1

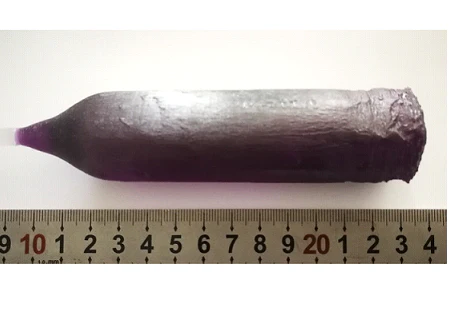

Single crystal Nd3Ga5O12 ( NGG) Substrate

Size: 10mm x 10mm x 0.5 mm
Orientation: (111)
Polishing: one side polished.
Surface finish (RMS or Ra) : < 5A
Packing: in 1000 class clean room with plastic bag

Typical Properties of NGG

Structure: Cubic
Lattice Constant: a=12.505Å
Purity: > 99.99%
Melting Point: 1550 ^oC
Density: 6.60 g/cm3
Hardness: ~7.2mohns
Reflectivity ~1.94:
Dielectric constant ~ 12.08
XRD:

Reference article: DIELECTRIC PROPERTIES AND ELECTRICAL CONDUCTIVITY STUDIES ON Gd3Ga5O12 SINGLE CRYSTALS

MTI is developing a series of doped GGG single crystal for nest generation Magneto-optical device. Please click the chemical formula below to link to the substrates available.

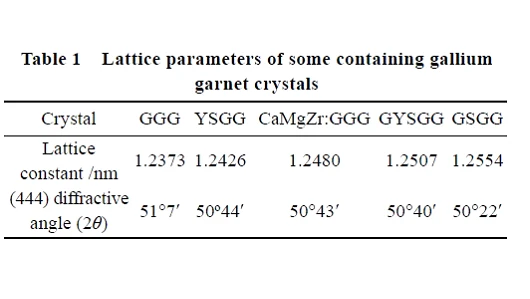

Composition (Cubic)	GGG Gd3Ga5O12	YSGG Y3Sc2Ga3O5	S-GGGCaMgZrGGG Gd2.6Ca0.4Ga4.1Mg0.25Zr0.65O12	NGG Nd3Ga5O12	GYSGG Gd0.63Y2.37Sc2Ga3O12	GSGG Gd3Sc2Ga3O12
Lattice constant	12.376 Å	12.426 Å ,	12.480 Å	12.505Å	12.507 Å ,	12.554 Å ,
Diffraction2θ	51º7'	50º44'	50º43'	50º41'	50º40'	50º22'
Melting Point	~1800 ^oC	~1877	~1730 ^oC	~1550 ^oC	~1730 ^oC	~1730 ^oC

$171.15

Original: $489.00

-65%

NGG (Nd3Ga5O12) Substrate (111 ) 10x10x0.5 mm, 1 SP - NGGc101005S1—

$489.00

$171.15

More Images

NGG (Nd3Ga5O12) Substrate (111 ) 10x10x0.5 mm, 1 SP - NGGc101005S1 - Image 2

NGG (Nd3Ga5O12) Substrate (111 ) 10x10x0.5 mm, 1 SP - NGGc101005S1 - Image 3

NGG (Nd3Ga5O12) Substrate (111 ) 10x10x0.5 mm, 1 SP - NGGc101005S1

Single crystal Nd3Ga5O12 ( NGG) Substrate

Size: 10mm x 10mm x 0.5 mm
Orientation: (111)
Polishing: one side polished.
Surface finish (RMS or Ra) : < 5A
Packing: in 1000 class clean room with plastic bag

Typical Properties of NGG

Structure: Cubic
Lattice Constant: a=12.505Å
Purity: > 99.99%
Melting Point: 1550 ^oC
Density: 6.60 g/cm3
Hardness: ~7.2mohns
Reflectivity ~1.94:
Dielectric constant ~ 12.08
XRD:

Reference article: DIELECTRIC PROPERTIES AND ELECTRICAL CONDUCTIVITY STUDIES ON Gd3Ga5O12 SINGLE CRYSTALS

MTI is developing a series of doped GGG single crystal for nest generation Magneto-optical device. Please click the chemical formula below to link to the substrates available.

Composition (Cubic)	GGG Gd3Ga5O12	YSGG Y3Sc2Ga3O5	S-GGGCaMgZrGGG Gd2.6Ca0.4Ga4.1Mg0.25Zr0.65O12	NGG Nd3Ga5O12	GYSGG Gd0.63Y2.37Sc2Ga3O12	GSGG Gd3Sc2Ga3O12
Lattice constant	12.376 Å	12.426 Å ,	12.480 Å	12.505Å	12.507 Å ,	12.554 Å ,
Diffraction2θ	51º7'	50º44'	50º43'	50º41'	50º40'	50º22'
Melting Point	~1800 ^oC	~1877	~1730 ^oC	~1550 ^oC	~1730 ^oC	~1730 ^oC
