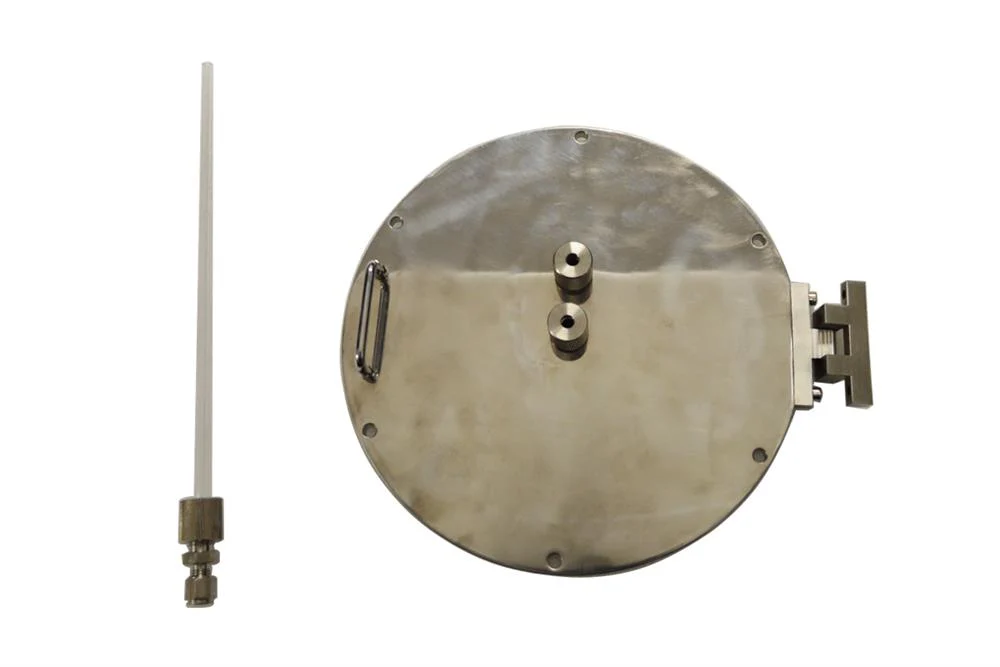

Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC
HomeStore

Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC

Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC

Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC

SPECIFICATIONS
  Structure
  •
  • Click pictures below to review detail structure.
  •
  Component
  • One 1/4 gas inlet which allows continuous gas delivery during operation.
  • A quartz gas tube (6.35mm O.D) is provided to reach the location of the sample and deliver reactive gas to sample directly.
  • One 1/4 thermocouple feedthrough port which allows a 1/4 O.D thermocouple probe to be inserted into the chamber and measure temperature of sample independently
  • One bored Al2O3 foam refractory block is provided.
  Note
  • Four probes electric resistance measurement feedthrough also is available upon request.

Standard package
Part No Description Qty Pic
VBFH8-FC-1 Flange Cap with Bolt-on Hinge 1
VBFH8-FC-2 Bored Al2O3 foam refractory block 1
VBFH8-FC-3 Gas Inlet TUBE O.D6.35*I.D4*L300 mm 1
VBFH8-FC-4 Fitting Cap with 1/4 inch Quartz Tube Connector 2
EQ-FC-1/4QT Hex Nipple Dia6.35-M15*1.5 with  1
EQ-SOR-TCring O-ring O.D 13mm I.D 6.35mm (Pre-installed) 3
EQ-SOR-TCgasket Hi Temperature Silicone Rubber Gasket 14mm Dia. for Thermocouple Feed-through Port 3
Select Gas Inlet or Flange
From $99.95
Multi-functional flange cap for VBF-1200X-H8-UL, MTI-VBFH8-FC—
$99.95
