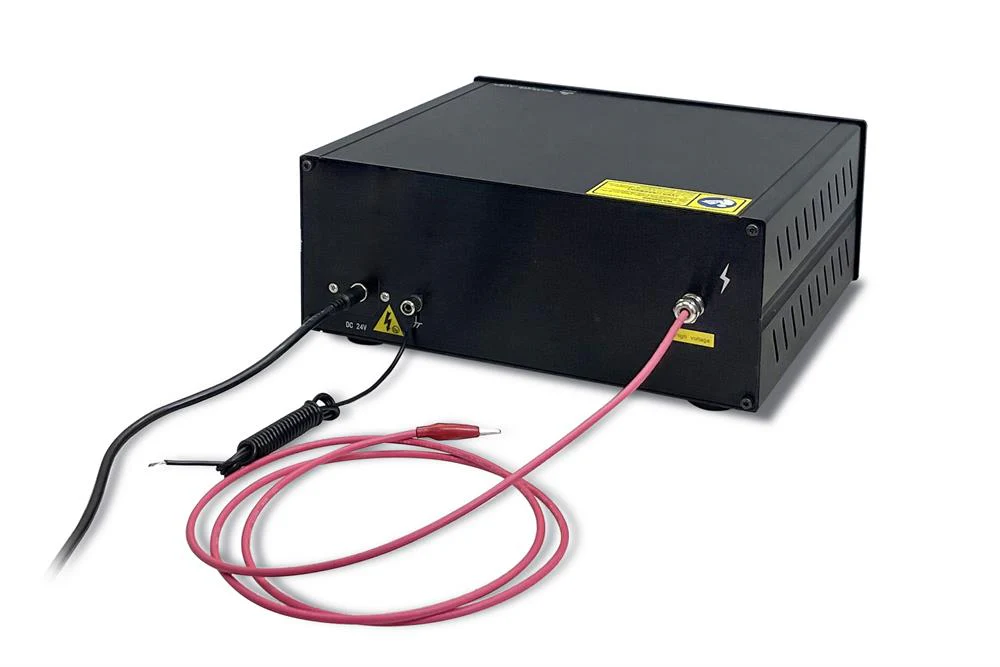

24VDC Input High Voltage Power Supply 30KV max. for DIY Electrospinning - MSKESPS3024

 MSK-ESPS-30-24V is a 24VDC input high voltage power supply up to 30KV, which is designed for the DIY Electrospinning device more safely. The HV device is meet the NRTL safety requirement without extra certification

• High voltage power in the system must have Grounding tests(GFCI) before first-time use. Improper grounding may cause charge build-up and damage the unit.

SPECIFICATIONS

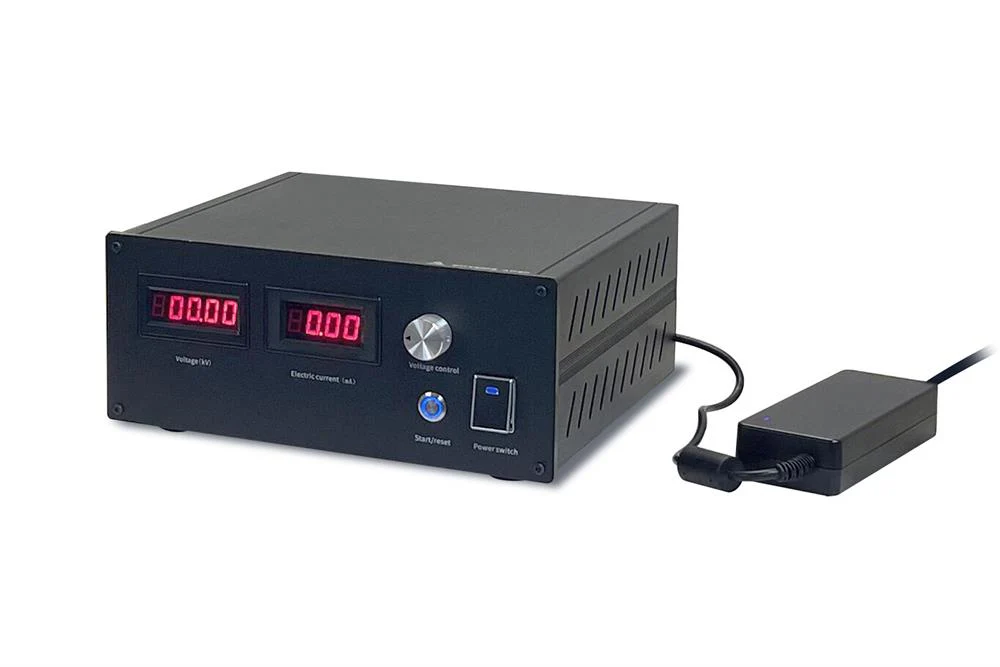

Features	DC power input for safety Digital Voltmeter and Current meter Output voltage and current can be set by using knobs on the front panel and read from the digital display Constant current/Constant Voltage mode of operation Built-in Arc Protection Circuit
Power	110 - 240V AC (50/60Hz) to 24VDC power adaptor is included for driving the high-voltage generator. The power adaptor is NRTL @ CSA certified for worldwide use 30W Max power consumption Please click the picture on the left for more details.
Output Power	DC 0 - 30KV Single Output, 1mA max Current A ground wire and a high-voltage output wire are included in the standard package.
Dimensions	300mm(L)×270mm(W)×130mm(H)
Compliance	NRTL certification is available upon request at the extra cost
Warranty	One year limited warranty with lifetime support
Options	You may need a Syringe Pump to deliver liquid, Please click Pic. 1 below to order. You may need a drum collector to make coating ( Please click Pic. 2 to order)  You may order X-Y stage for flat coating, please click Pic. 3 right to order Please put the device into a fume hood for safety and health ( Pic. 4) DIY an Ultrasonic Spray and Electrospinning device  Pic. 1  Pic. 2  Pic. 3 Pic. 4
