80Dx200L Drum Collector w/ Speed Controller Upto 4000 RPM For DIY Electrospinning - MSKESDC80D4000
HomeStore

80Dx200L Drum Collector w/ Speed Controller Upto 4000 RPM For DIY Electrospinning - MSKESDC80D4000

80Dx200L Drum Collector w/ Speed Controller Upto 4000 RPM For DIY Electrospinning - MSKESDC80D4000

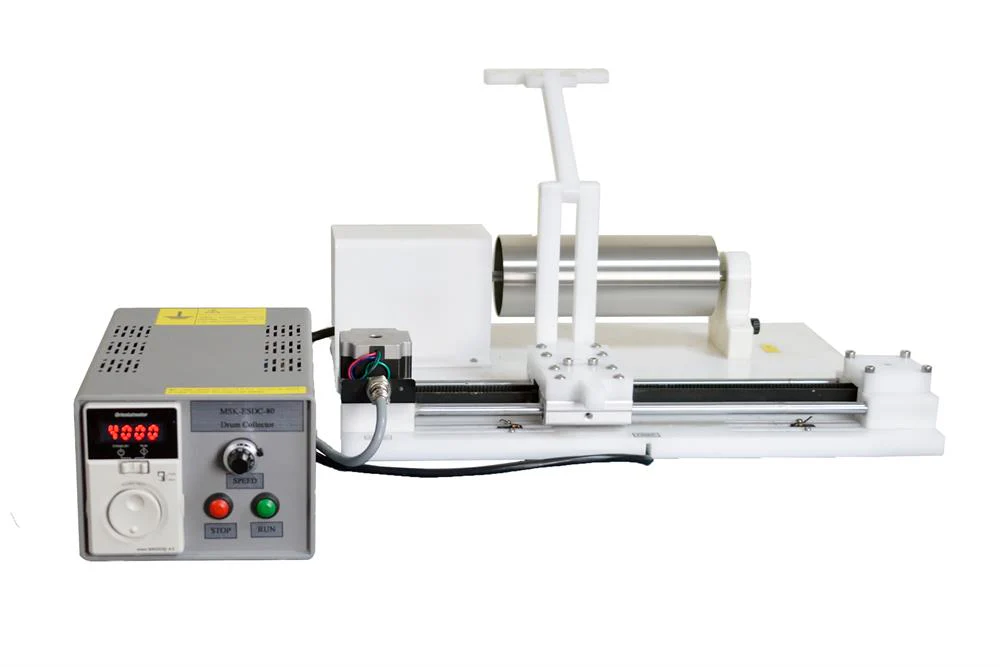

MSK-ESDC-80 is an 80 mm Dia. x 200 mm L stainless steel drum collector with oscillation and rotation speed control console for the nano-fiber electro-spinning DIY system. In this setup, the nano-fibers are winded in the form of an aligned nonwoven membrane on a rotating drum. This method provides a relatively high production rate compared to the plate collector method.

  • If you use High voltage power in the system, must do Grounding tests(GFCI) before first-time use. Improper grounding may damage the unit.

SPECIFICATIONS

Model MSK-ESDC-80-Series
Features
  • Drum collector with adjustable rotation speed and digital speed display
  • Speed adjustable oscillation fixture for holding multiple liquid ejection needles
  • The compact design enables DIY flexibility
  • Compatible with Argon gas environment
  • The rotary drum is made of SS304, and the frame is made of Nylon
Input Power
  • 24V DC
  • UL certified 110VAC - 240VAC to 24VDC power adaptor is included
Drum Collector
  • Rotation speed: 100 - 8000 rpm adjustable
  • Frontward and backward rotation
  • Speed accuracy: +/- 5 rpm
  • Drum size: 80 mm Dia. x 200 mm L
Oscillation Fixture
  • Syringe needle holder to mount up to 7 needles (7 slots of 12 mm Dia. See left picture)
  • Two adjustable positions limit sensors to control the fixture movement distance
  • Syringe needle head suggested having 100-200mm distance with collector drum
  • Fixture movement distance: 160 – 330 mm adjustable
  • The syringe needle is not included in the standard package, please order separately.
Optional
  • To builds a DIY electrospinning system, you may need
    • A high voltage power supply (Click Pic 1 to order)
    • A syringe pump controller to deliver polymer solution (Pic 2 & 3)
    • Ultrasonic spray head (  click Pic.4 to order )
    • A fume hood to enclose the system for safety and health (Click Pic 6 to order)
1   2      3       4    5
Stage Dimensions
  •  (click to enlarge)    480 L x 480 W x 300 H   (mm)
Warranty
  • One-year limited warranty with lifetime support
Shipping Weight
  • 40 lbs
Operation Video &  Instruction
Application Notes
  • The ability to generate aligned fibers and the degree of alignment depends on the polymer-solvent combination, viscosity, applied voltage, tip-collector distance, and drum rotation speed. User is advised to experiment with the processing parameters for best results
  • Use a properly grounded electrical outlet of the correct voltage and current handling capacity and away from sources of electromagnetic interference. Improper grounding may cause charge build-up and damage the unit
  • The electrospinning process uses HIGH VOLTAGE! Stay clear of the syringe needle or drum collector during the process to avoid electric shock! Beware of short circuit damage to the unit due to leaking or a short distance between the charged syringe needle and drum collector
  • Solvents and chemicals used for electrospinning may be poisonous, flammable, oxidizing, or corrosive. It is the user’s responsibility to understand the risks associated with the process and use proper protection. The user is advised to wear protective clothing, mask, goggles, and gloves. The electrospinning process should be confined in an enclosed chamber, such as a fume hood, with proper exhaust handling capability

STANDARD PACKAGE:

No. Descriptions Qty Image
1 MSK-ESDC-80 Drum Collector 1
2 Control Console 1
3 Connection Cable 1
4 Power Cord 1
5 Operation Manual CD 1
Optional
MTI-VP13 USA Outlet Plug Adapter  Optional
EQ-Syringe20-GL Lab Utility 20 mL Glass Syringe for Syringe Pump & Filling Electrolyte Optional
EQ-Syringe20 Lab Utility 20 mL Syringe with Luer Lock Needle for Filling Electrolyte Optional
EQ-ESDC-SN Two Syringe Needles for Injection Optional



$5,698.00
80Dx200L Drum Collector w/ Speed Controller Upto 4000 RPM For DIY Electrospinning - MSKESDC80D4000—
$5,698.00

More Images

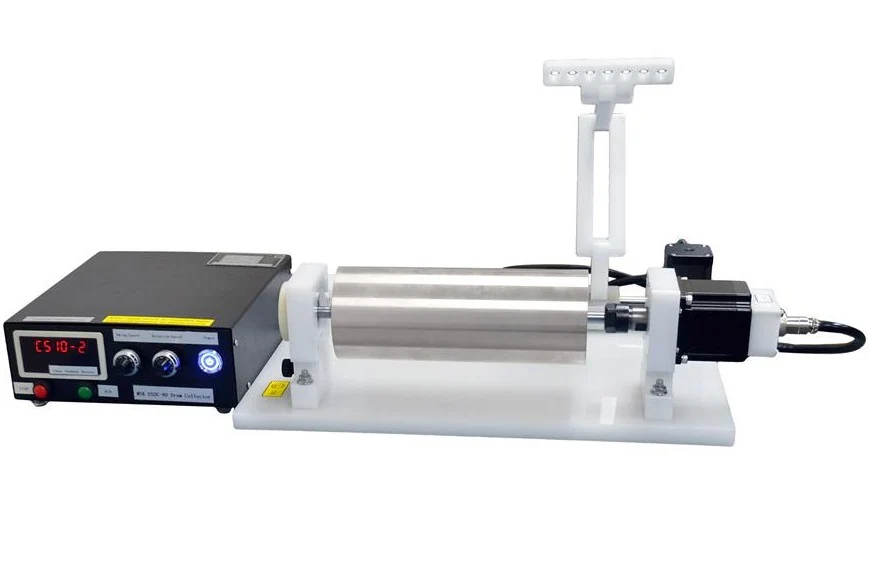

80Dx200L Drum Collector w/ Speed Controller Upto 4000 RPM For DIY Electrospinning - MSKESDC80D4000 - Image 2
