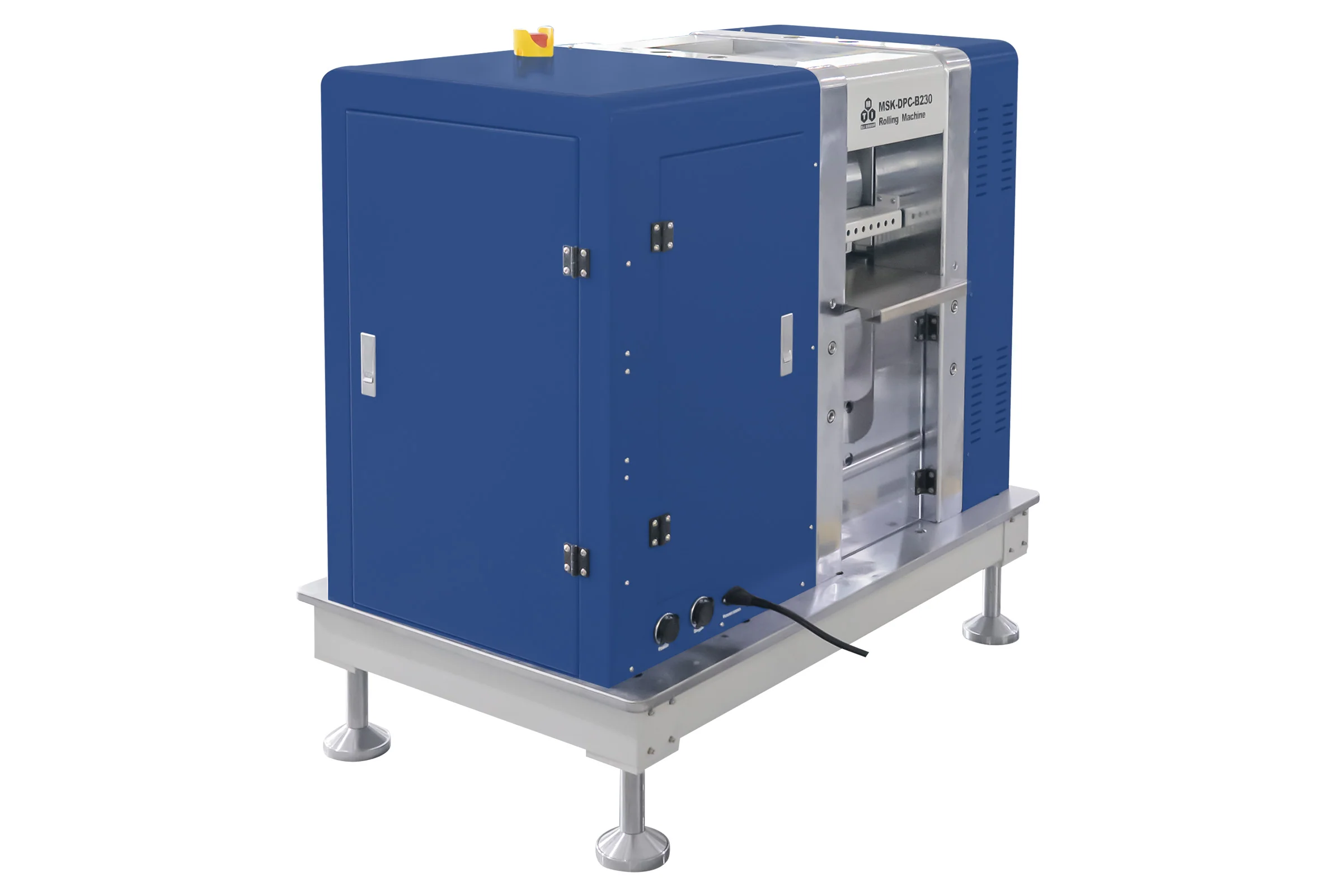

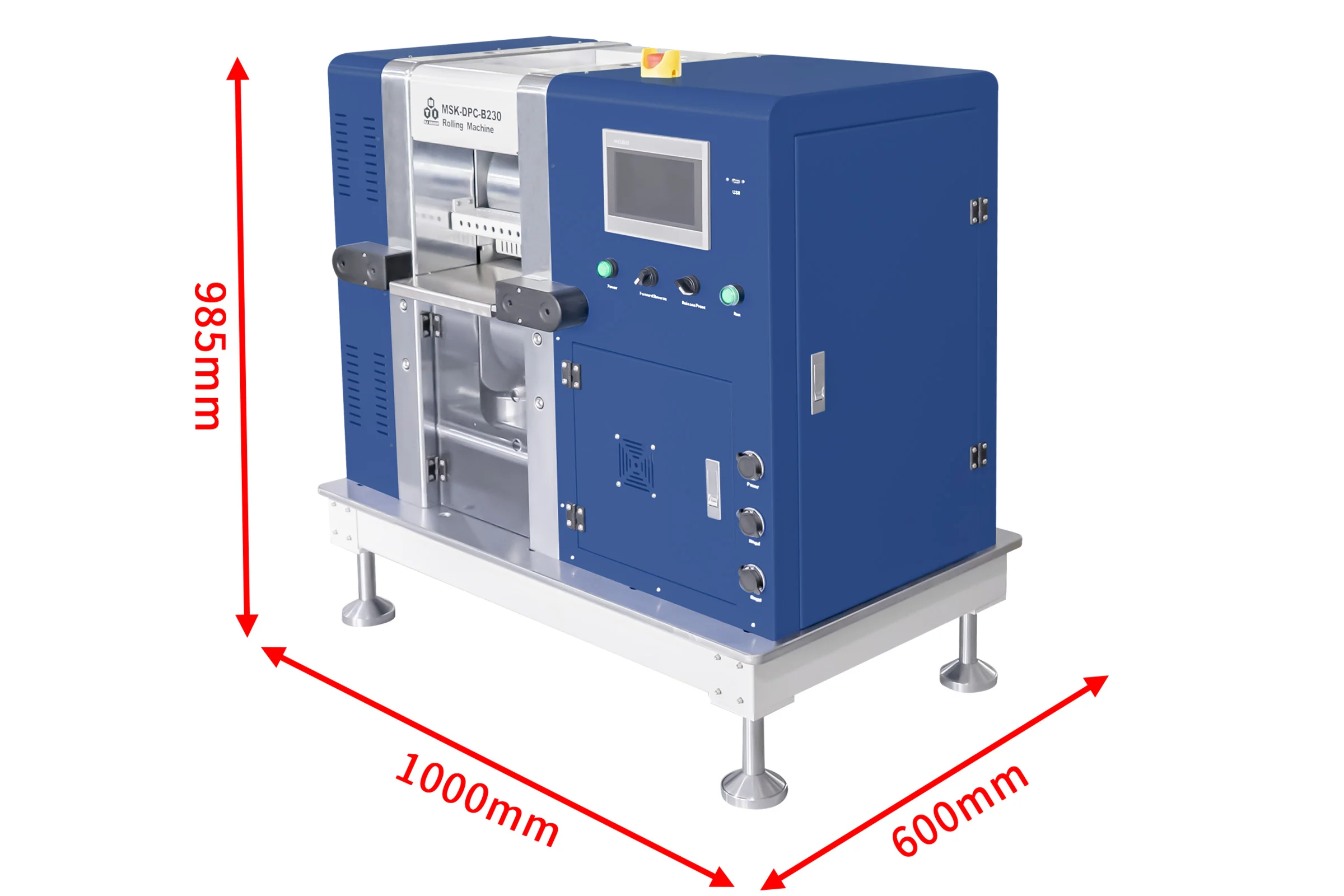

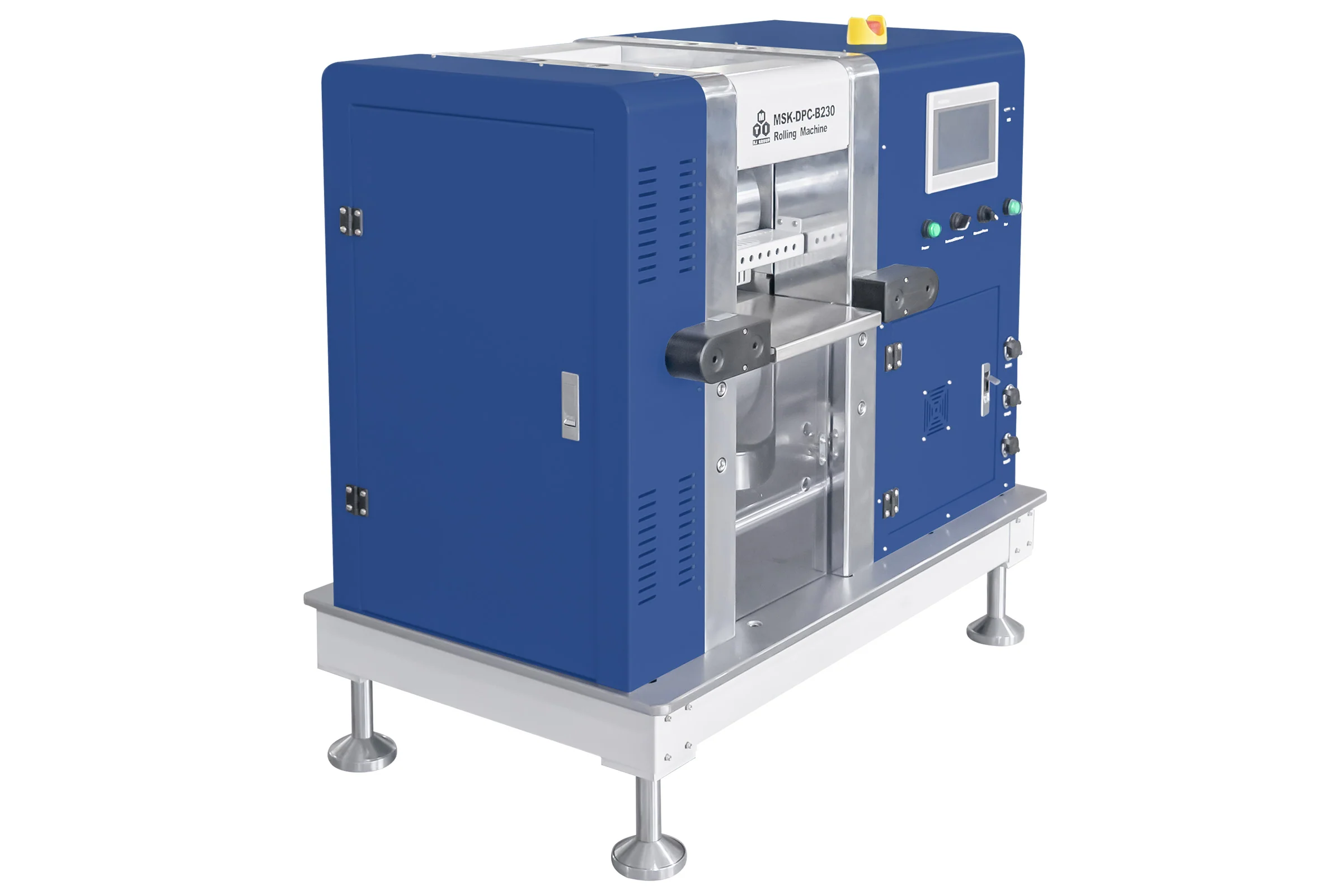

80T Max. Pressure Controlled Rolling Machine (9" Dia. x 8.6" W) for Battery Electrodes & R2R as Option - MSKDPCB230

MSK-DPC-B230 is a high-precision rolling press up to Max. pressure of 80 Tons designed for electrodes in battery research and development. It utilizes a hydraulic pressing mechanism for stable rolling pressure for electrodes to achieve high compact density during the calendaring process. The roller gap is precisely controlled by a stepper motor to allow accurate and repeatable adjustment for consistent processing conditions. An optional R2R film unwinding and winding system is available upon request to enable continuous electrode processing.

With its precise pressure control and gap adjustment, the MSK-DPC-B230 provides an ideal solution for producing uniform and repeatable electrodes sheet for laboratory-scale battery research and development.

SPECIFICATION:

Power Requirement	AC220V±10%, Single Phase, 50Hz Power Consumption: 1KW
Rollers	Roller Dimensions: Ø230mm x 220mm (W) Material: 9Cr3Mo with hard chrome plate (>0.1mm thickness) Surface Hardness: HRC 65-70
Max. Sample Width	≤200 mm
Max. Pressure	80 Tons
Rolling Accuracy	≤ ±1.5 μm
Rolling Speed	0.3-5 m/min, adjustable from the touchscreen control panel
Rolling Gap	0-1.5 mm, adjustable with 0.001 mm precision
Compliance	NRTL or CSA certification is available upon request
Roll-to-Roll System (Add-Ons)	Roll-to-Roll functions is available by combining a roll-to-roll unit (MSK-2300-RD) 208 - 240 VAC, 50/60Hz, Single Phase The power plug is not included
