Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A
HomeStore

Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A

Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A

MSK-T-13 is a benchtop motorized ring cutter to punch Ø26×Ø19 mm lithium rings. The as-cut lithium rings is compatible with a three-electrode split test cell as a reference electrode. Thanks to its modular design, it can also punch a Ø15×Ø8 mm ring of cathode materials for a 3-electrode split coin cell via an optional die.

MSK-T-13 is ready to use in an Argon-filled glovebox.

SPECIFICATIONS:

 Power
  • 110 - 240V AC (50/60Hz) NRTL certified power adapter for worldwide use
  • 24V DC motor with reducing gear, 15W. The operation is very safe without further certification
Pressure
  • Adjustable cutting force
  • Pressure 0 - 1400 kgf

Cutting Die for Lithium Ring

(Variant 1)
  • A ring-shaped alloy cutting die to cut lithium ring O.D 26mm x I.D 19mm,  designed for Three-Electrode Split Test Cell.
  •     Three-Electrode Split Test Cell for R&D Battery - 15 mm Diameter Cell - EQ-3ESTC

    Cutting Die for Cathodes

    (Variant 2)
    • A ring-shaped cutting die for cathode with an O.D 15mm x I.D 8mm designed for Quick Assembly 3-Electrode Split Coin Cell
    •              Quick Assembly 3-Electrode Split Coin Cell (19mm ID) for Battery Material Testing - EQ-HSTC-III
    Compliance
    • CE certified
    • NRTL or CSA certification is available at the extra cost
    Application Note
    • Cutting Die is a consumable component.



    Select Cutting Dies
    From $1,013.25

    Original: $2,895.00

    -65%
    Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A—

    $2,895.00

    $1,013.25

    More Images

    Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A - Image 2
    Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A - Image 3

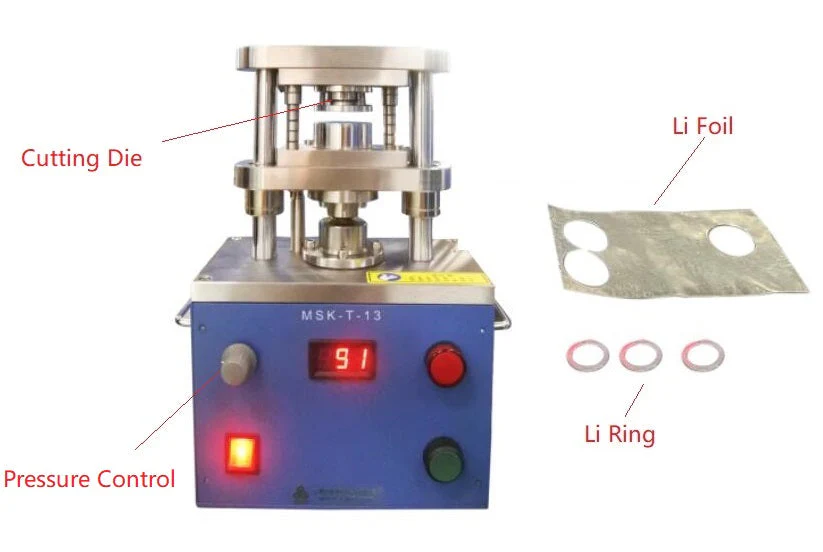

    Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A - Image 4

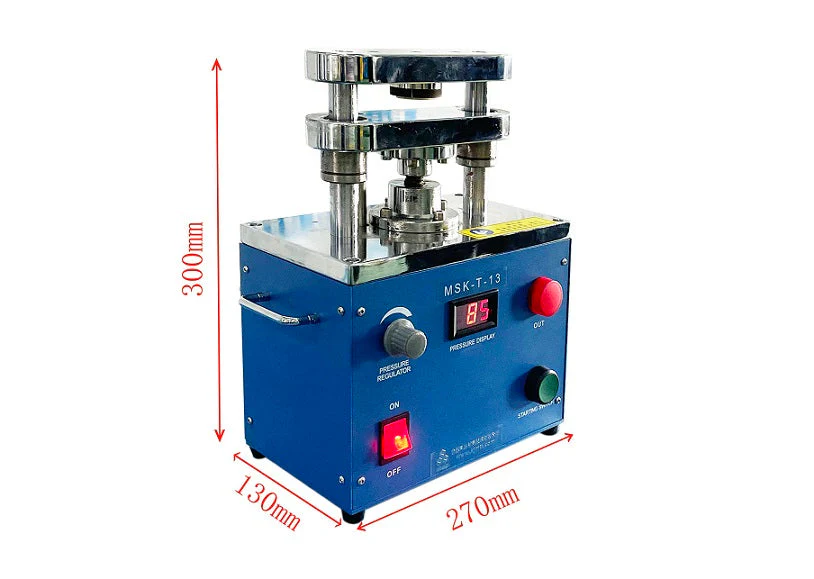

    Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A - Image 5

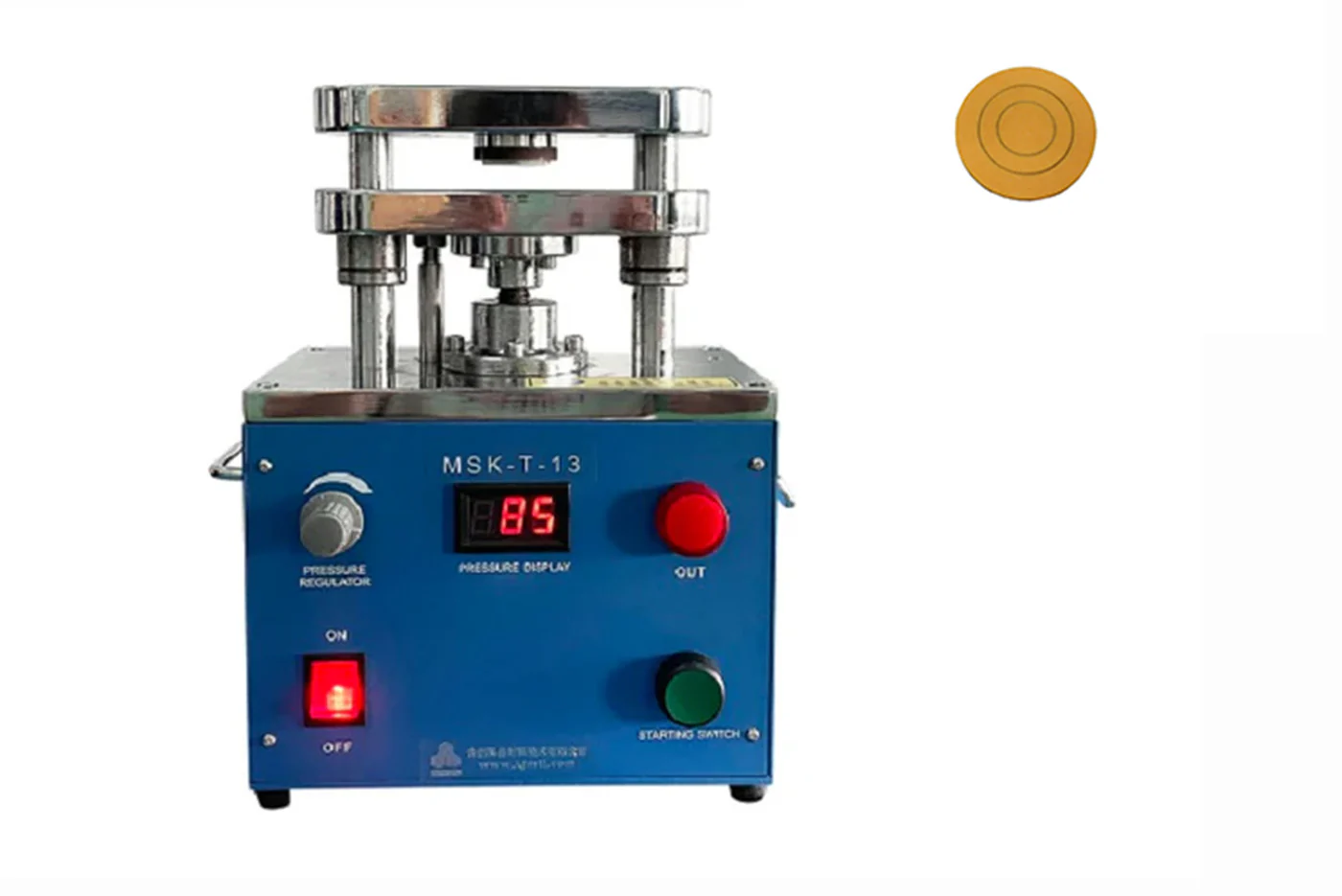

    Ring & Disc Cutter with a Lithium Foil Cutting Die (OD26 x ID19 mm ) - MSK-T-13A
