10 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-9-10L

10 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-9-10L

10 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-9-10L

MSK-SFM-9-10L is a CE Certified and MET-ready large Vacuum Planetary Mixer with effective 10-liter containers and complete accessories for immediate use. The vacuum mixer produces multi-movements during stirring, including, revolution and rotation, double planetary stirring shafts, and shaft for scraping the walls to make slurry mixing without dead corners and with extreme uniformity under vacuum. A temperature-controlled water circulator is included to make the container work at the temperature range from 50ºC to 35ºC directly and a water cold stainless steel tank can promise high efficiency in mixing. It is excellent for preparing LiCoO3, LiFePO4, phosphors, and ceramic slurry with excellent results in dispersion and uniformity.

SPECIFICATIONS

Power Supply	Total power: Max. 7kW. Voltage: 220VAC, single phase, 50/60Hz The power plug is not included. Please click here to order the plug)
Speed	Stirring blade rotation speed: 2 - 110 rpm (suggested the minimal stirring speed is 5 rpm) Dispersing blade rotation speed: 100 - 6000 rpm (suggested minimal dispersing speed of 300 rpm)
Viscosity	Max. 100000 mPa·s (cps)
Vacuum	The vacuum level: ≦ -0.098MPa The heavy-duty double-stage vacuum pump is included. Click the pump pic for detailed information.
Lifting system	Hydraulic lifting cylinder 370W/4P electric driving motor lifting height: 300mm max.
Bucket	SS304 Thickness: 6mm (inner wall), 4mm (outer wall) Dimensions: Dia.310mm x H.220mm Capacity: 10 Liter effective （12L total volume） Water cooling jacket (side and bottom), water pressure < 40psi Fork slot at bottom of the bucket for easy transportation by a forklift Temperature monitors and over-temperature alarm
Mixing blade	Distance between stirring blade and bucket bottom: 2-4 mm Distance between stirring blade and bucket wall: 2-5mm Distance between stirring blades: 3-8mm Made of SS 304
Scraping blade	The blade is made of PTFE. The blade rotates with the main shaft.
Water Recirculating Chiller	One Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - KJ5000-220 included
Connected Accessories & Fittings	One DN50 feed hole Three-piece type ball valve outlet Two DN50 sight glasses One G1/2" vacuum connector with vacuum pump One G1/2" air outlet One vacuum meter 12mm O.D. water inlet and outlet fittings
Compliance	CE Certified NRTL certification is available upon request at extra cost

$53,986.00

10 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-9-10L—

$53,986.00

More Images

10 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-9-10L - Image 2

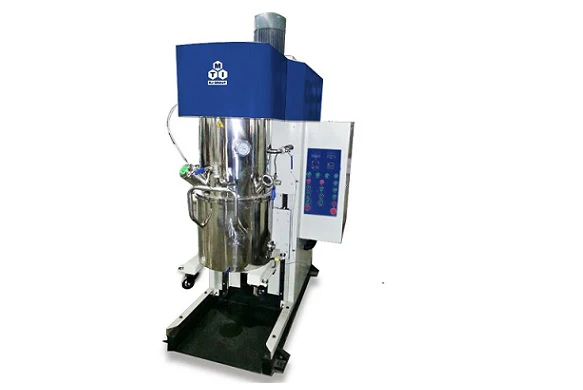

10 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-9-10L - Image 3

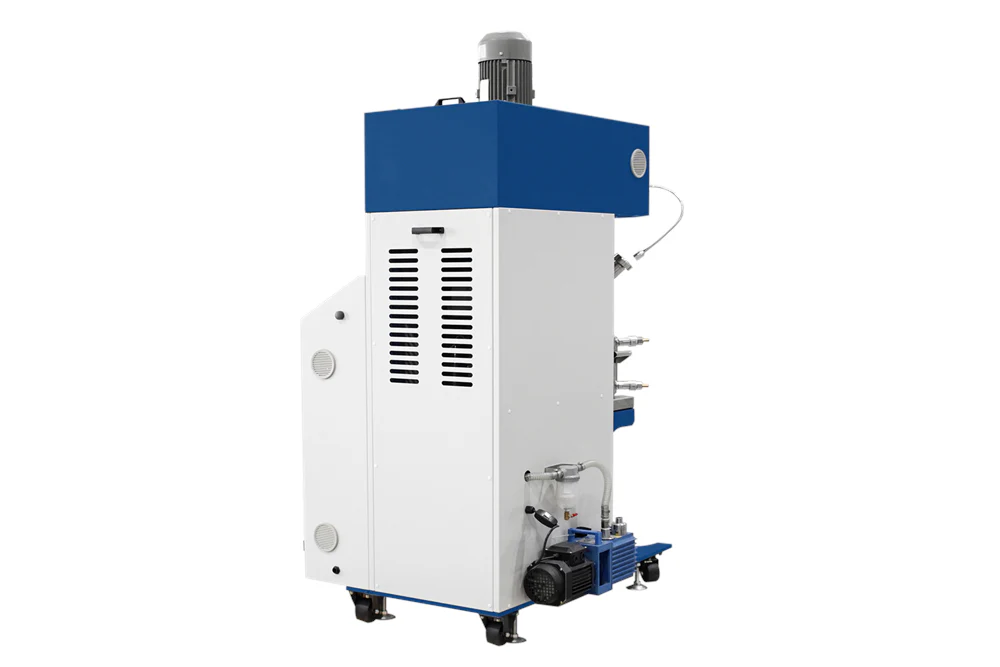

10 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-9-10L - Image 4

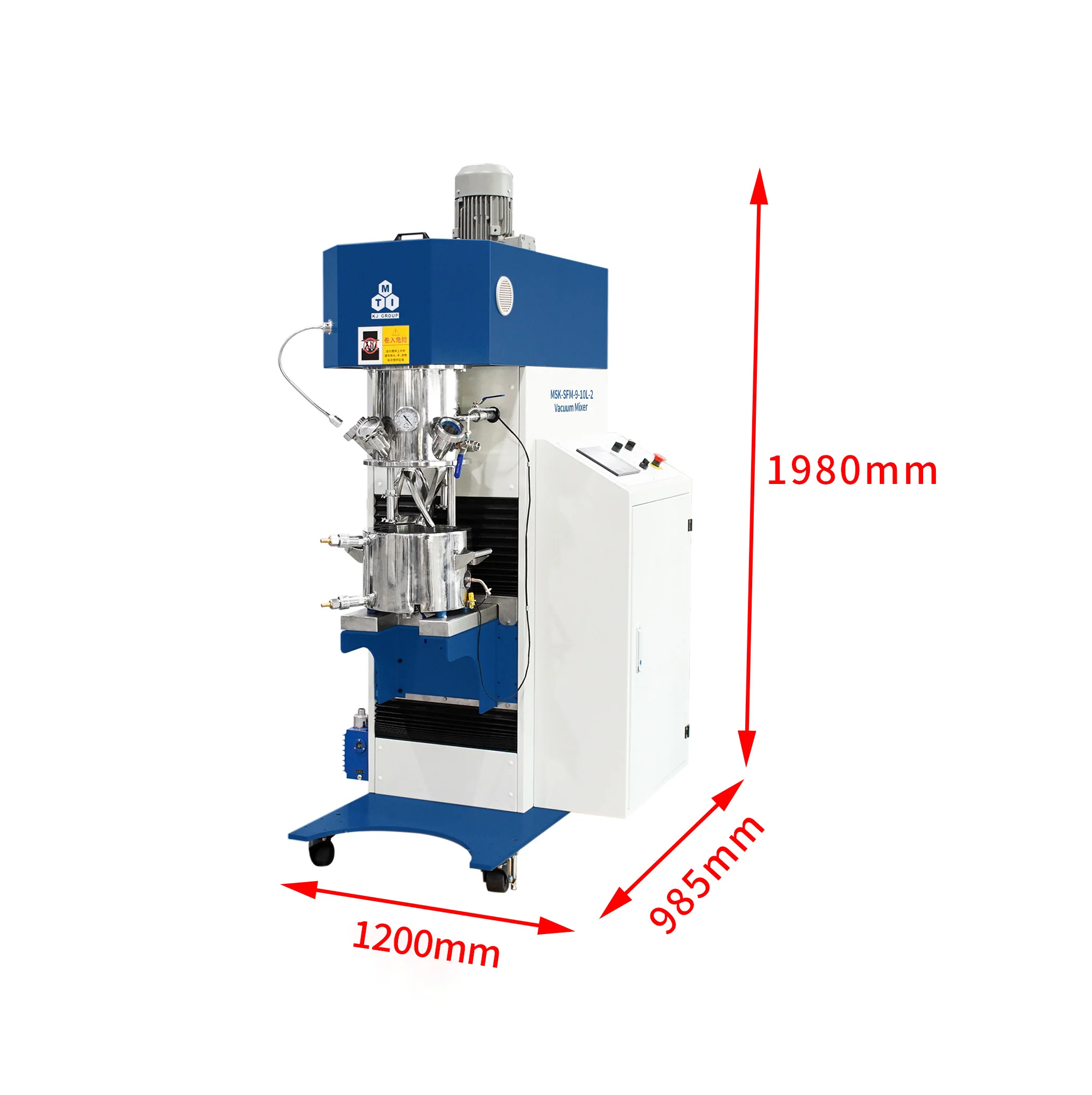

10 L Planetary Vacuum Mixer with Vacuum Pump and Water Chiller - MSK-SFM-9-10L - Image 5
