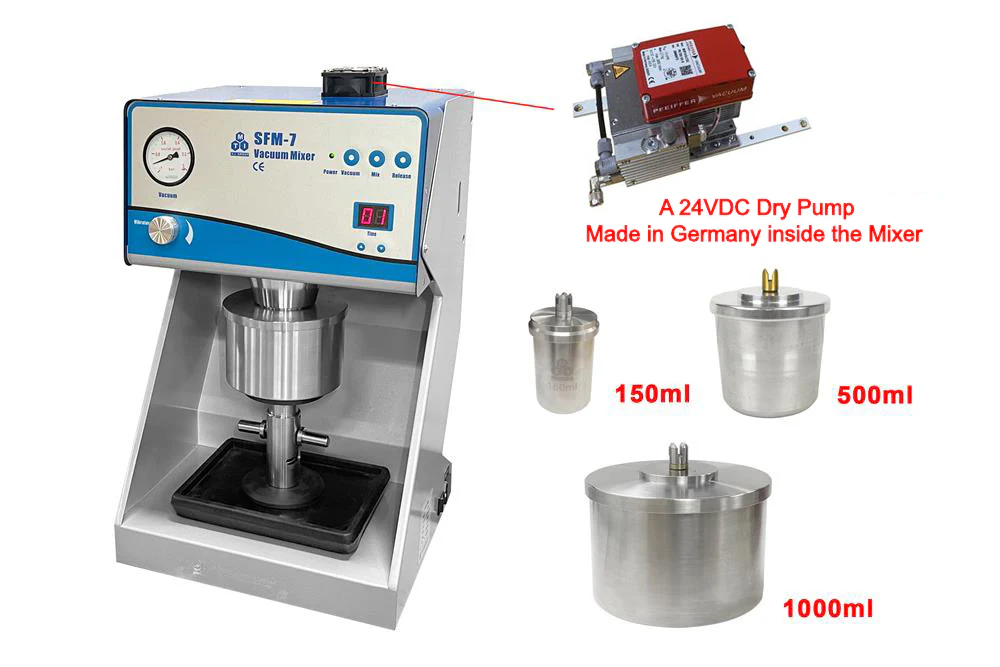

Vacuum Mixer w/ Vac. Pump & 2 Containers (150 & 500mL) & Optional 1L Tank-MSKSFM7

MSK-SFM-7 is designed to produce coating slurry by mixing a small batch of chemicals and compounds in two tanks of 150 ml & 500 ml under vacuum. It has a built-in pump that can vacuum the mixing container to -0.08Mpa and a mixing speed of 320rpm. The vibration plate is located at the bottom to remove the gas bubble before vacuum mixing and disperse the slurry after mixing. It is excellent for preparing battery electrode paste and various ceramic materials in a material research lab. It is compact so that put in a glovebox with N2 gas ( No Ar).  Ar compatible 1L mixer is optional

SPECIFICATIONS

Voltage Input	Single Phase 110VAC or 220VAC (please choose from the product options bar) 220V AC Power plug is not included. Please click here to order the plug)
Power	150W
Rotary Speed	320 rpm ( fixed speed) )
Slurry Viscosity	<10000 cps

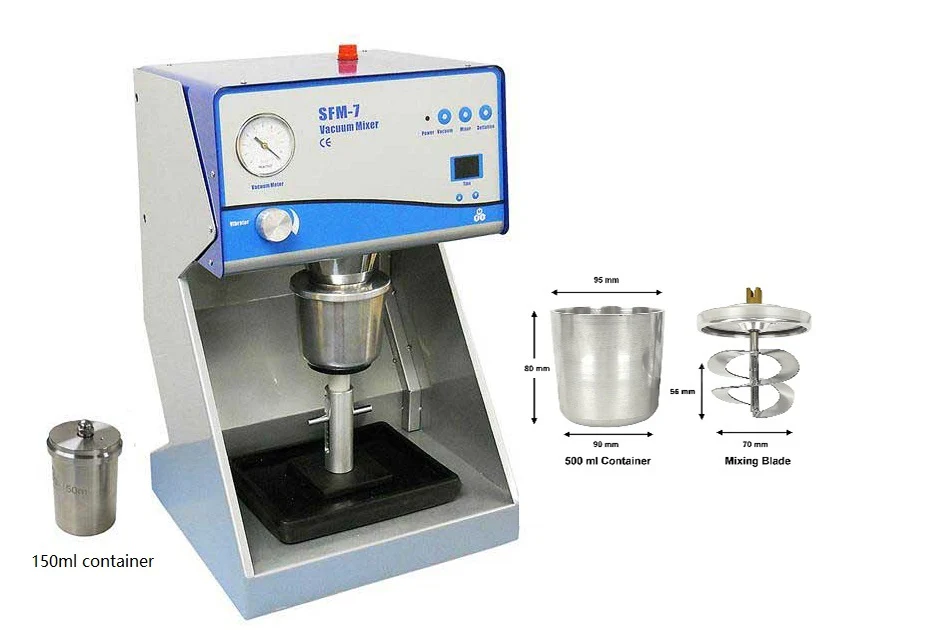

Mixing Container	Two vacuum-sealed containers are included. One 150ml stainless steel set and one 500ml aluminum set The mixing blade is built-in into the top of the container The metal filter prevents solid particles from the vacuum pump Slurry volume is suggested to be in the range of 20-70% of tank volume. If your slurry amount is too small, please contact us before purchasing to make the gap between the blade tip and jar bottom around 2 mm. Option: 30 mL, 100 mL, and 1000 mL containers are available with extra cost 30ml  100ml 150ml  500ml  1000ml NRTL-and Ar gas compatible version 1000 ml mixer is available from the product option
Vacuum pump & Vacuum Level	Built-in single-stage vacuum pump Vacuum Level: -0.08~0.09 Mpa
Mixing Time	0~99 Minutes Adjustable
Vibration Plate	Vibrating at 1000 Hz
Optional	For better mixing quality, you may need a dispensing machine and viscosity meter as the links below     ( click picture to see specs and order )
Compliance	CE only for the standard version ( oil vacuum pump ) NRTL or CSA is available for Ar gas version only
Vacuum Oil Tank Refill	Notice: Operating the mixer with insufficient oil will damage the pump. Check the oil level window on the right side of the machine. If there is less than half a tank of oil, refill oil from the oil tank opening on the top of the machine. Refill the tank to have an oil level above half full indicated by the red dotted line in the picture to the left. Please click to order High Vacuum Pump Oil / Hydrocarbon oil. The mixer is not suitable for long time use. suggest max. running time is < 30 minutes for each running
