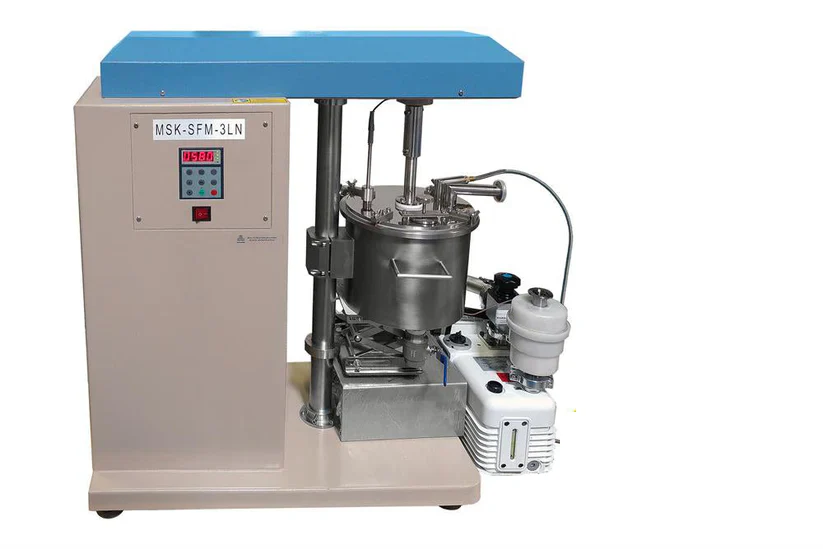

Liquid Nitrogen Cryogenic Rotor Mill with a 5 Liter Vacuum Thermal Insulated Tank - MSK-SFM-3LN

• 5-liter stainless steel container with a vacuum thermal insulated chamber
• Stainless steel anchor type mill blade; rotary speed adjustable from 0-1200 RPM
• Programmable controller to set time, speed, and rotation direction according to application needs

• 20mm

• 1 micron

• 208-240VAC, single Phase, 10A Max.
• Note: 220V AC Power plug is not included when customers choose the 220V version. Please click here to order the plug.

• Anchor type
• 0-500 RPM variable

• Made of SS 304 Steel with a 5 Liter Capacity and a vacuum jacket for thermal insulation.
• Dimension:
• I.D.: 210mm
• Height: 180mm
• Inserted with a PTFE liner to be anti-corrosive and to reduce contamination of grinding materials.
• Vacuum jacket with KF 25 port and needle valve ( vacuum pump is not included, please click the picture below right to order )

• Click the picture below to order a milling ball according to your application
• Max. load of milling media is 3.5Kg (suggested ball size < 5mm diameter)
•

• The temperature inside the container is measured and controlled by a temperature controller with a thermal couple insert.
• The liquid Ni flow is regulated by the CSA-certified cryogenic solenoid valve, 1/4 FNPT, 155 psi max.
• The lowest temperature: - 160
• Liquid nitrogen tank and pipe are not included. Please order from your local vendor
• Please see the picture blow for the operation procedure

• CE certified
• NRTL certification is available at an extra cost

Remove the LN temperature control and the electric valve, and the device can be used as a mixer for high viscosity paste
