High Energy Impact Mill w/ Dual 50 ml Jars & 48 Tubes Adaptors -MSKSFM192LN
HomeStore

High Energy Impact Mill w/ Dual 50 ml Jars & 48 Tubes Adaptors -MSKSFM192LN

High Energy Impact Mill w/ Dual 50 ml Jars & 48 Tubes Adaptors -MSKSFM192LN

MSK-SFM-192LNĀ is a versatile high energy, high-throughput ball mill & mixer designed for efficient milling and mixing. Two milling stations can hold two 50ml SSĀ jars in position. Radial oscillating movementsĀ provide sufficient kinetic energy to the milling balls which impact the wall surface of the jar and pulverize the materials. The included multi-channel 24x2Ā ml tube adaptersĀ enable theĀ simultaneous milling/mixing of up to 48 different samples. Cryo-milling is also feasible by pre-treating the 50ml millingĀ jars in liquid nitrogen. This compact ball mill can be operated inside a glovebox with Ar atmosphere or vacuum glovebox to achieve vacuum ball millingĀ

SPECIFICATIONS


Features
  • High energy Impact ball mill/mixer with versatility - wet & dry grinding/mixing; multi-sample high throughput processing; cryogenic & room temperature
  • Bench-top compact design with 2 Grinding Stations. Two standard 50ml SS jars are included. (pic. 1).Ā Each Station can hold milling jars with a volumeĀ range from 1.5ml to 50ml.
  • 2 sets of 24 slot adaptors are included for high-throughput milling of 48 samples via 2ml Microcentrifuge tubes (Pic. 2 &3 )
  • This device is able to perform cryo-milling: Before grinding temperature-sensitive or elastic materials, the userĀ can pre-cool samples by submerging the grinding jar in liquid nitrogen. (pic. 4, 5, & 6)

Ā

pic. 1 pic.2 pic.3 pic. 4 Ā pic.5 Ā pic. 6

Working Voltage
  • 110 or 220V AC, 50/60 Hz
  • 24VDC motor.
  • 400W Max.
Vibration
  • Frequency: ( 300-2000 swing/minute adjustable)
  • Max. Amplitude: 25mm
  • Time Display Range: 1 sec to 6553 sec.
Material Feed Size Ā ā‰¤ 8mmĀ
Material Output Size ~3Ī¼m (may differ depending on the sample material)

Milling Jars/Balls
  • Standard Package includes.
    • TwoĀ sets of 2ml x 24 Tube Holder adaptors (Pic. 1)
    • Two 50ml SS Milling Jars ( Pic. 2)
    • Four eachĀ 20mm SS Milling balls ( Pic. 3)
    • 1.5mm Dia. Zirconia Milling Balls (~30mL, 250g)(Pic. 4)
    • 48 pcs ofĀ 2ml sample tubes inserted in the tube holder adapters. (Pic. 5)
  • We provide a wide range of jar/ball materials for contamination-free processes, such as Nylon, Alumina, and agate...Please contact us for more details.
  • Optional (not included in standard package):
    • SS Milling Jars with volume size: 10ml and 25ml (Pic. 6)
    • 25mL/50mL PEEK substrate milling jars
    • 25mL/50mL PTFE substrate milling jars

24 Holes MillingĀ Holder
(Pic.1)

50ml SS Milling Jar
(Pic. 2)

SSĀ Milling Balls
(Pic. 3)

Zirconia Milling
BallsĀ (Pic. 4)

2ml Sample
Tubes (Pic. 5)

OptionalĀ SS Jars
10 - 80ml

WC Jar 25 ml
(optional)
Control Panel
  • Touch screen digital control panel
  • Parameters: Milling time, Pause time, Cycle number, Vibrating Frequency, are programmable.
  • 10 programs can be pre-stored in the panel
  • Note: The single grinding time is recommended not to exceed 300s, and the total time is not more than 6553s.
Compliance
  • CE Certified
  • NRTL certificationĀ is availableĀ at an extra cost
Application Notes
  • SS304 mixing jar is suitable for grinding various metal materials
  • For milling the oxide material, please choose alumina/Nylon jars andĀ zirconiaĀ media.Ā DO NOT USE stainless steel balls in Alumina jars.Ā

Ā

$12,998.00
High Energy Impact Mill w/ Dual 50 ml Jars & 48 Tubes Adaptors -MSKSFM192LNā€”
$12,998.00

More Images

High Energy Impact Mill w/ Dual 50 ml Jars & 48 Tubes Adaptors -MSKSFM192LN - Image 2

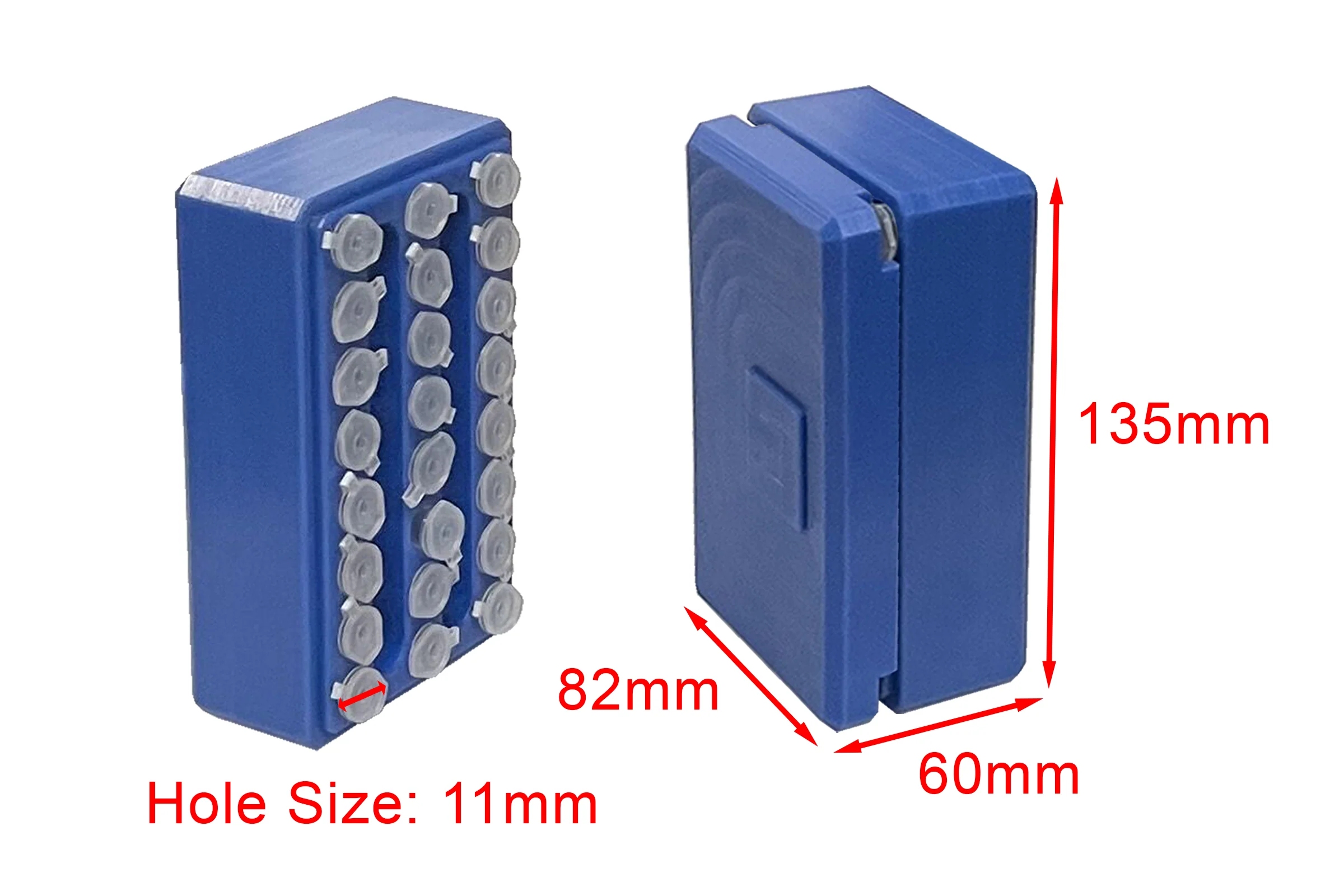

High Energy Impact Mill w/ Dual 50 ml Jars & 48 Tubes Adaptors -MSKSFM192LN - Image 3
