2 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-2L-A
HomeStore

2 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-2L-A

2 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-2L-A

MSK-SFM-2L is a Tri-Shaft Planetary Vacuum Mixer with a 2-liter container and PLC Touch Panel Control. Such a vacuum mixer incorporates the unique tri-shaft stirring design to ensure a gas-bubble-free blending of complex materials under vacuum with extreme uniformity. Furthermore, an observation window on the mixing tank provides a better way to monitor the entire mixing process. MSK-SFM-2L is an excellent tool for preparing LiCoO3, LiFePO4, Phosphorus, and ceramic slurries and provides much better results in dispersion and uniformity.
Note: Revised vacuum pump and water chiller cost since April 25, 2016.

SPECIFICATIONS


 Standard Version MSK-SFM-2L
For Viscosity <= 9000  		  High Dispersing Speed Version MSK-SFM-2L-A
  For Viscosity <= 5000
Mixing Blades Speed & Power Stirring : 0 ~ 112 RPM , 750W
Dispersing : 0 ~ 3354 RPM, 750W
For Viscosity: 100 - 9000 mPa·s (cps) 		Stirring: 10~ 150 RPM , 200W
Dispersing: 200~5000 RPM, 200W
For Viscosity: 100 - 5000 mPa·s (cps)


Dimensions
  • 970mm × 840mm × 1050mm (W × D × H)
  • Mixing Tank: 180mm Dia. × 135mm Height

  • 460mm × 760mm × 980mm (W × D × H)
  • Mixing Tank: 180mm Dia. × 135mm Height

Power Consumption
  • 2kW (Recommend 20A Outlet for pump cold start)
  • 1kW (Recommend 20A Outlet for pump cold start)
Working Voltage
  • 208 - 240V AC, 50/60HZ, Single phase (Power cord included)
  • 220V AC Power plug is not included. Please click here to order the plug
Mixing Tank Diameter
  • 40mm
Mixing Tank Vertical Distance
  • 130mm, manual
Mixing Tank Dimension
  • 180 mm I.D. x 118 mm H
  • 3.0 Liter (total volume)
  • Effective capacity for mixing: 2.0 Liter
Mixing Blades
  • 3 axis planetary mixing
  • 2 stirring blade
  • 1 dispersing blade
  • 1 spatula

Vacuum Pump
  • One double-step rotary vane vacuum pump is included
Liquid Cooling
  • One water chiller with 9L tank - EQ-KJ3000 is included


PLC Control Panel

 Digital touchscreen for efficient adjustments

Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost
Warning
  • The recommended operating time is (this restriction applies to model # MSK-SFM-2L-A only):
  • < 1 hr @ 8000RPM dispersing.
  • < 2 hr @ 7000RPM dispersing.
  • < 3 hr @ 6000RPM dispersing.
  • < 4 hr @ 5000RPM dispersing.
  • Continous @ 4000RPM dispersing.
  • Please adopt feed-batch mode when adding solid powder into dispersion liquid. One-time feeding will cause high resistance towards shaft/blade, as well as local overheating.



$13,294.75

Original: $37,985.00

-65%
2 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-2L-A—

$37,985.00

$13,294.75

More Images

2 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-2L-A - Image 2

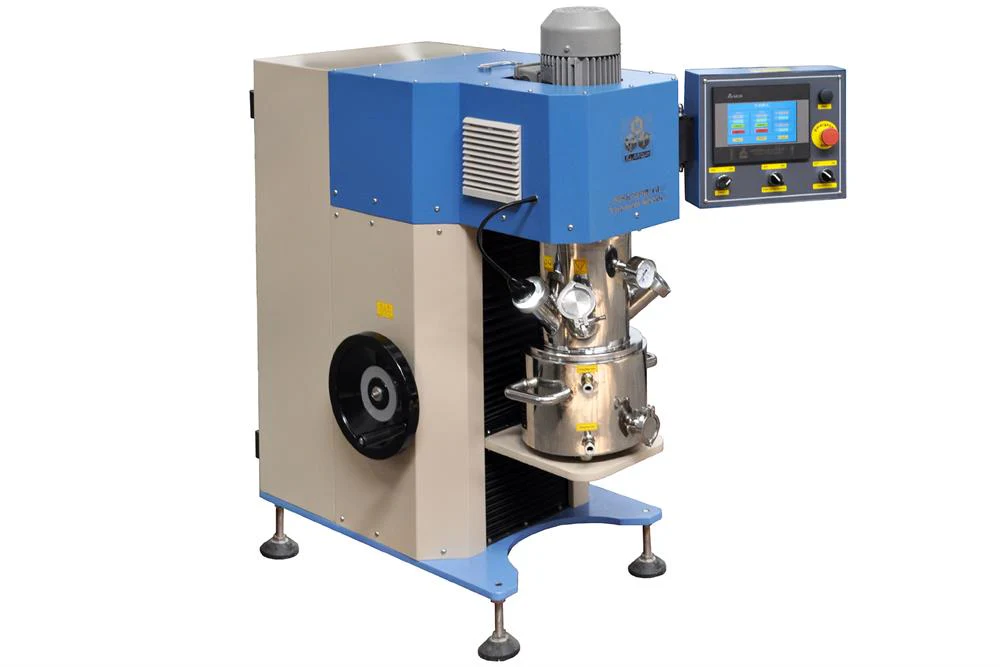

2 Liter Tri-Shaft Planetary Vacuum Mixer with Vacuum Pump & Water Chiller - MSK-SFM-2L-A - Image 3
