Desk-Top Dual-Shaft Planetary Vacuum Mixer w/ Optional Containers (50-500ml) up to 600 RPM -MSK-SFM-16
HomeStore

Desk-Top Dual-Shaft Planetary Vacuum Mixer w/ Optional Containers (50-500ml) up to 600 RPM -MSK-SFM-16

Desk-Top Dual-Shaft Planetary Vacuum Mixer w/ Optional Containers (50-500ml) up to 600 RPM -MSK-SFM-16

MSK-SFM-16 is a compact dual-shaft planetary vacuum mixer. Compared to single-shaft models, the dual-shaft mixer comes with three segments of programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing the gas bubble, which can vacuum the mixing container to -0.08 MPa. One 150ml SS container is included and 50 and 500ml container is optional. .  It is compact to put in the glovebox with Ar and N2 atmosphere through an anti-chamber.

SPECIFICATIONS
Voltage Input & Power
  • 24 VDC input voltage
  • One UL listed 100-240 VAC IN, 24 VDC OUT power adapter is included
  • 120W, 24VDC motor
Rotary Speed
  • 0 - 600 rpm
Slurry Viscosity
  • max. 10000 cp @ 600 rpm
Mixing Containers
  • One 150 mL stainless steel 304 vacuum-sealed container is included (minimum loading required is 50mL)
  • Dual helical ribbon mixing blades are built on the lid of the container.
  • Slurry volume is suggested to be in the range of 20%-70% total tank volume. If your slurry amount is too small, please contact us before purchase.
  • 500 mL SS container and 50mL SS container are available at extra cost Click the picture below to order

150ml 500ml 50 ml
Vacuum Pump
  • Built-in single-stage vacuum pump
  • Vacuum Level: -0.08 ~ -0.09 MPa
Control Panel
  • 3.5" color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off
    • Mixing Time: 0 - 600 minutes
    • Mixing Speed: 0 - 600 RPM and 3 segments programmable
  • Note: Max. mixing speed depends on slurry viscosity. Max.10000 mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry

Heating Container with Temp Control  (Optional)
  • The heating container is available at an additional cost. Please contact us for a quote.
  • The heating container can be heated up to 200°C  with precision temperature control for heated vacuum mixing.
  • The heating option ONLY comes with a 500ml heating container, please contact us if other sizes are needed.
  • A water cooling chiller is required for protecting gear and O-ring
  • We suggest using the EQ-KJ5000 Series recirculating water chiller as a cooling system
  • Protective shielding is included with the Heating Jet option.
Compliance
  • CE certified
  • CSA, UL, TUV, and MET certification is available upon request at extra cost
Application Notes
  • For the best result, pls order a filter to remove larger particles in the slurry ( click the left picture to order )
  • Please click the picture to the right to see the quality of the slurry after mixing.


STANDARD PACKAGE

Item No.

Description

Quantity

MSK-SFM-16

Compact Dual-Shaft Planetary Vacuum Mixer

1


Built-in single-stage vacuum pump (Pre-installed)

1

SFM16-150ML

150 mL stainless steel vacuum-sealed container is included.

1

POWER-24VDC

DC 24V Plug-In Adapter Single-OUT

1

Consumables & Accessories (Click to view recommended spare parts list)
* Optional parts are not included in the standard package. You have to order separately. Prices are subject to change without notification.
SFM16-500ML 500 mL stainless steel vacuum-sealed container

Option



Select Heating Jet
From $6,998.00
Desk-Top Dual-Shaft Planetary Vacuum Mixer w/ Optional Containers (50-500ml) up to 600 RPM -MSK-SFM-16—
$6,998.00

More Images

Desk-Top Dual-Shaft Planetary Vacuum Mixer w/ Optional Containers (50-500ml) up to 600 RPM -MSK-SFM-16 - Image 2

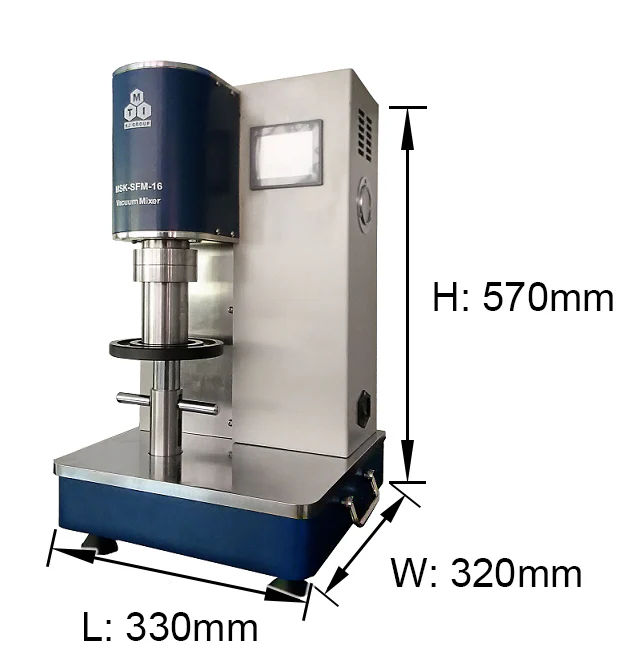

Desk-Top Dual-Shaft Planetary Vacuum Mixer w/ Optional Containers (50-500ml) up to 600 RPM -MSK-SFM-16 - Image 3
