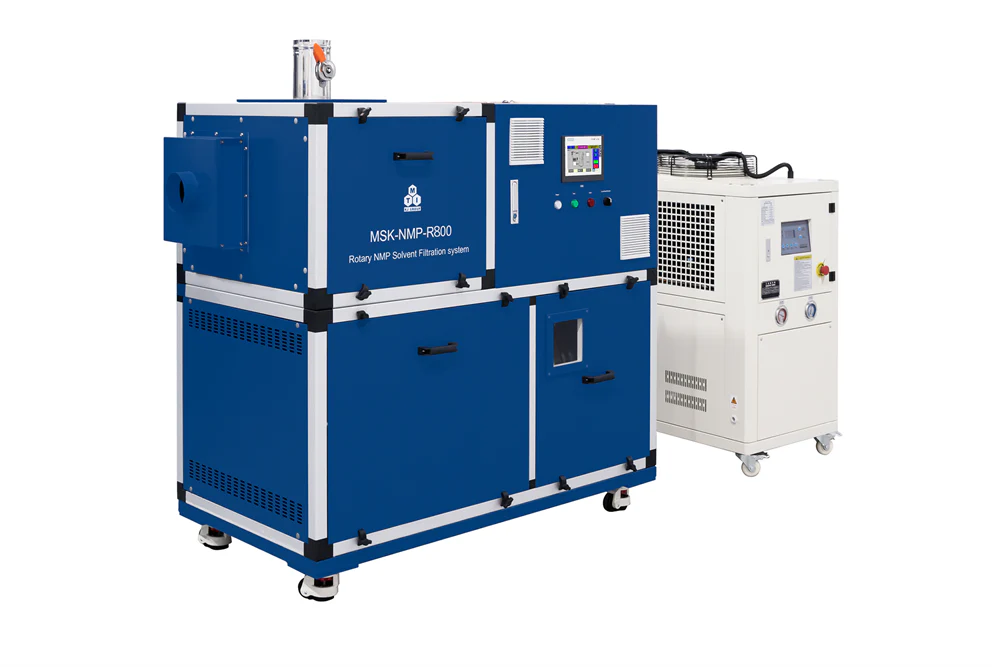

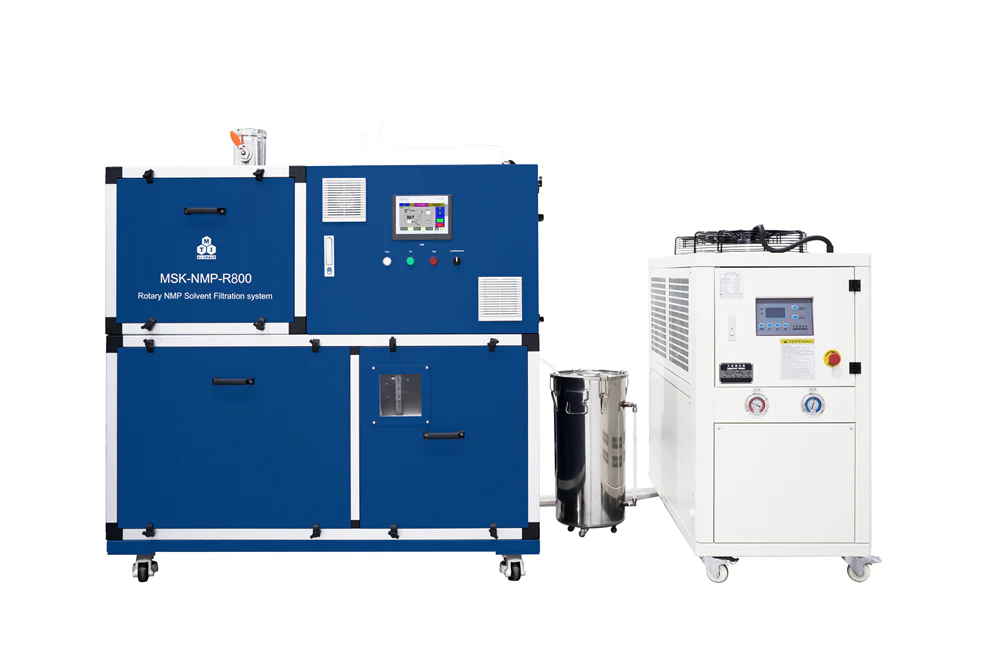

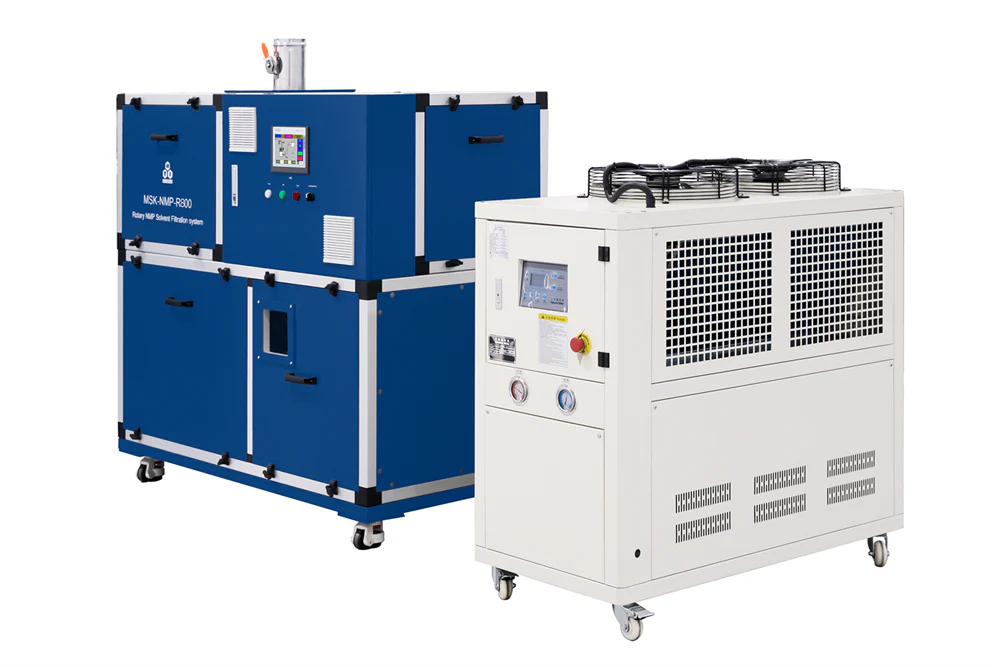

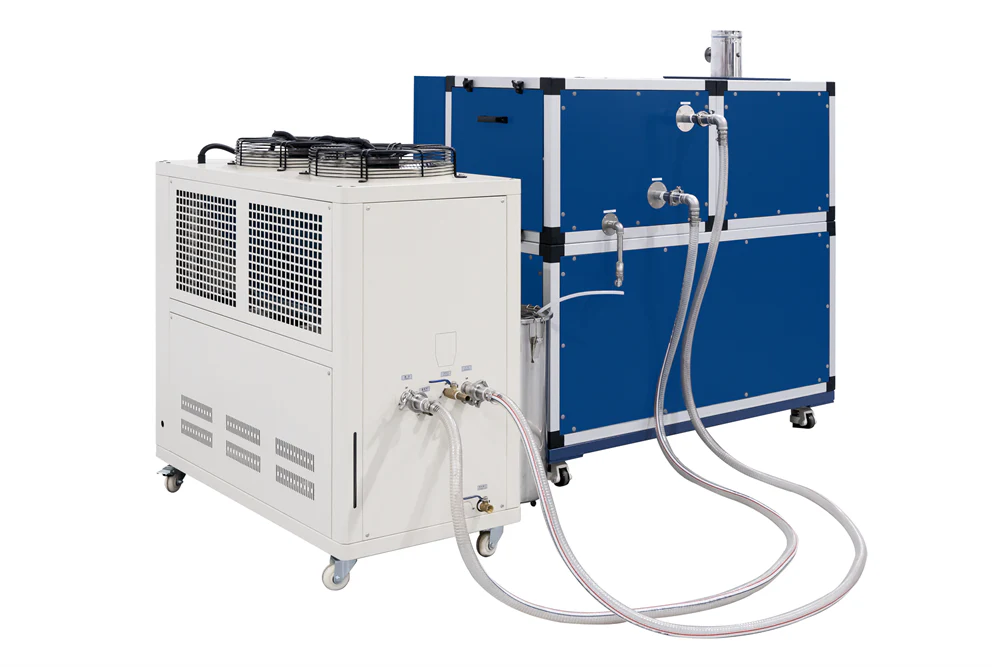

Rotating Wheel System for NMP Vapor Recycling of Pilot-Scale Battery Cathode Coating - MSK-NMP-R800
Rotating Wheel System for NMP Vapor Recycling of Pilot-Scale Battery Cathode Coating - MSK-NMP-R800
MSK-NMP-R800 is aĀ CE Certified Rotating Wheel System for (NMP(N-Methyl-2-pyrrolidone) Vapor Recycling of Pilot-Scale Battery Cathode Coating.Ā It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D.Ā
For Roll to Roll Coater Service, please fill in theĀ Roll to Roll Request Form.
For Roll to Roll Coater Service, please fill in theĀ Roll to Roll Request Form.
| Working Mechanism: | Ā
|
SPECIFICATIONS
| Working Voltage | AC380VĀ±10%, three-phase, 50/60Hz | |
| Power | 4 KW | |
| Processing Method | Condensation Cooling System + Rotating Wheel for Regeneration | |
| Exhaust Vapor Level | ā¤ 50PPM (NMP detector with 0-100 ppm range is available upon request) | |
| Processing Capacity | ā¤ 800 m3/h | |
| Exhaust Ventilation Amount | ā¤ 800Ā m3/h | |
| Connection Ports | Inlet connection port size:Ā Š¤120-150 mm to match with than of R2R coater. Outlet connection port size:Ā Š¤145mm | |
| Connection Port Size for Chiller | DN25 (1") | |
| Water Chiller | SDA-0505 water chiller is required for cooling of the NMP recycler | |
| NMP detector (Optional) | The NMP concentration detector is available upon request | |
| Compliance | CE Certified | |
Ā
$22,743.00
Original: $64,980.00
-65%Rotating Wheel System for NMP Vapor Recycling of Pilot-Scale Battery Cathode Coating - MSK-NMP-R800ā
$64,980.00
$22,743.00More Images
Rotating Wheel System for NMP Vapor Recycling of Pilot-Scale Battery Cathode Coating - MSK-NMP-R800
MSK-NMP-R800 is aĀ CE Certified Rotating Wheel System for (NMP(N-Methyl-2-pyrrolidone) Vapor Recycling of Pilot-Scale Battery Cathode Coating.Ā It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D.Ā
For Roll to Roll Coater Service, please fill in theĀ Roll to Roll Request Form.
For Roll to Roll Coater Service, please fill in theĀ Roll to Roll Request Form.
| Working Mechanism: | Ā
|
SPECIFICATIONS
| Working Voltage | AC380VĀ±10%, three-phase, 50/60Hz | |
| Power | 4 KW | |
| Processing Method | Condensation Cooling System + Rotating Wheel for Regeneration | |
| Exhaust Vapor Level | ā¤ 50PPM (NMP detector with 0-100 ppm range is available upon request) | |
| Processing Capacity | ā¤ 800 m3/h | |
| Exhaust Ventilation Amount | ā¤ 800Ā m3/h | |
| Connection Ports | Inlet connection port size:Ā Š¤120-150 mm to match with than of R2R coater. Outlet connection port size:Ā Š¤145mm | |
| Connection Port Size for Chiller | DN25 (1") | |
| Water Chiller | SDA-0505 water chiller is required for cooling of the NMP recycler | |
| NMP detector (Optional) | The NMP concentration detector is available upon request | |
| Compliance | CE Certified | |
Ā
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MSK-NMP-R800 is aĀ CE Certified Rotating Wheel System for (NMP(N-Methyl-2-pyrrolidone) Vapor Recycling of Pilot-Scale Battery Cathode Coating.Ā It can be used to filter the vapor formed from the process of coating and drying with the dual-filtration level in Li-ion battery R&D.Ā
For Roll to Roll Coater Service, please fill in theĀ Roll to Roll Request Form.
For Roll to Roll Coater Service, please fill in theĀ Roll to Roll Request Form.
| Working Mechanism: | Ā
|
SPECIFICATIONS
| Working Voltage | AC380VĀ±10%, three-phase, 50/60Hz | |
| Power | 4 KW | |
| Processing Method | Condensation Cooling System + Rotating Wheel for Regeneration | |
| Exhaust Vapor Level | ā¤ 50PPM (NMP detector with 0-100 ppm range is available upon request) | |
| Processing Capacity | ā¤ 800 m3/h | |
| Exhaust Ventilation Amount | ā¤ 800Ā m3/h | |
| Connection Ports | Inlet connection port size:Ā Š¤120-150 mm to match with than of R2R coater. Outlet connection port size:Ā Š¤145mm | |
| Connection Port Size for Chiller | DN25 (1") | |
| Water Chiller | SDA-0505 water chiller is required for cooling of the NMP recycler | |
| NMP detector (Optional) | The NMP concentration detector is available upon request | |
| Compliance | CE Certified | |
Ā
