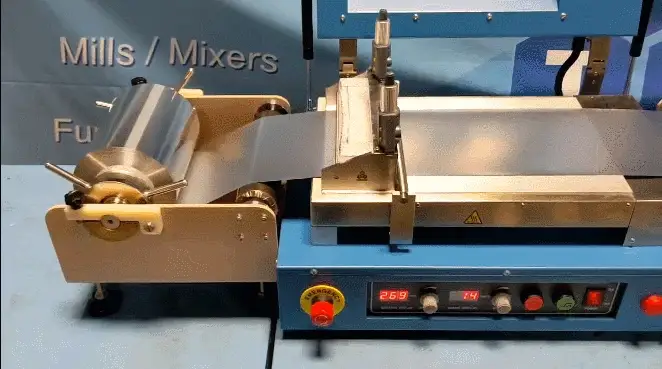

Multifunctional Film Coater: Sheet & R2R, Blade or Slot-Die, 180mm Width up to 120 °C - MSK-H200SR

MSK-H200SR is a compact and multifunctional film coater for a slurry. It can make coating either sheet-to-sheet and roll-to-roll up to 200mm in width. A film applicator (doctor blade) is included, while a slot-die head is also available upon additional request. It is the most cost-effective tool to make electrode films for batteries, perovskite solar cells, and fuel cells.

SPECIFICATIONS:

Power	110V or 220V AC, 50/60Hz, single phase 1850 W (standard) or 1600W (optional)
Long Heatable Vacuum Platform (Top-side rapid IR heating )	The vacuum bed is made of aluminum alloy with a micro-sized hole (no bottom heating) Vacuum Chuck Dimensions: 600mm(L) x 300mm(W) Coating width: 180 mm for roll-to-roll coating 250mm for sheet coating (500mm in length) Rapid IR heating on the top side. Regular resistance heating on the bottom side.  Maximum heating temperature: 120 ºC, the heating rate can be up to 1.2 ºC/s.  Precision digital temperature controller with +/- 1ºC accuracy
Roll-to-Roll System	A compact roll-to-roll system up to 200mm in width is included Motor rpm (Controller display) range: 1 ~ 41 rpm. Speed control range: 2.2mm/s ~ 117.2mm/s 24V DC. motor, Ar gas compatible A 110 - 240 VAC to 24 VDC power adapter is included
Film Applicator Doctor Blade Coating Head	One doctor blade with dual digital micrometer heads is included, which can make a coating of 180 mm width by doctor blade (20 - 200 micron thickness adjustable, other widths are also available upon request). A hybrid film applicator with a 250 mm doctor blade and a 150 mm width slot die head is available upon request at extra cost. Please click the picture on the left to see the details  One syringe pump is required for slot-die coating (not included in the package, should be purchased additionally). Please click the picture below to order
Vacuum Pump (optional)	A vacuum pump is optional for the vacuum chuck to make the sheet-to-sheet coating Please click the picture left to see detailed specification
Multi-function options	You may add some fixtures to achieve R2R ulktrosonic and electrospinning coating as pictures below    R2R ultrosonic coating           R2R electrospinning
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
