Compact Filtration System (2 L) for Battery Electrode Slurry - MSK-FT01-2L
HomeStore

Compact Filtration System (2 L) for Battery Electrode Slurry - MSK-FT01-2L

Compact Filtration System (2 L) for Battery Electrode Slurry - MSK-FT01-2L

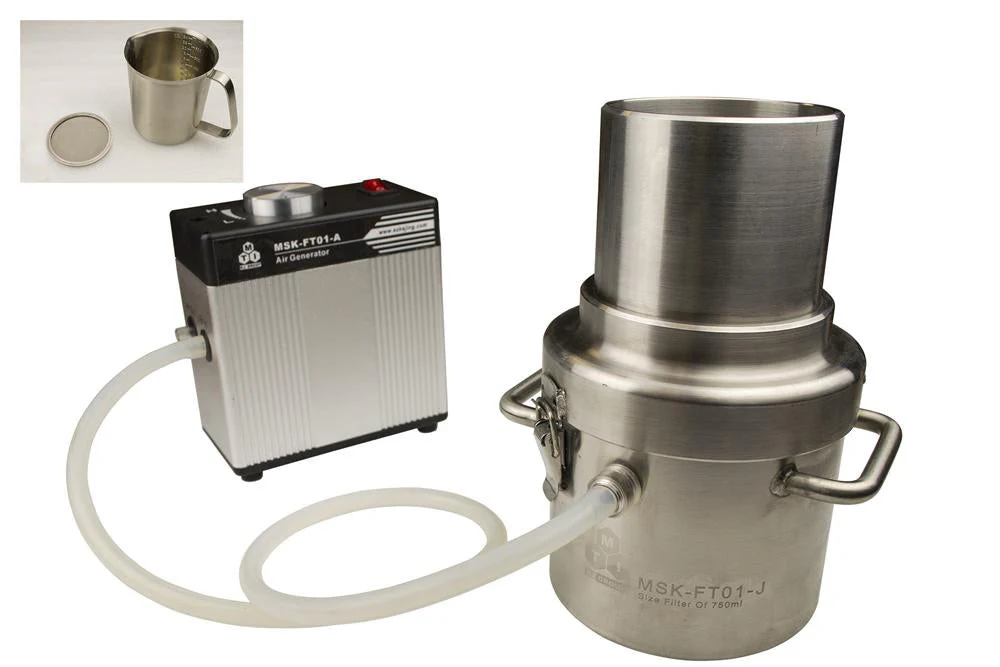

MSK-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >100 micrometers. An SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.

SPECIFICATIONS
Power Requirements

  • Input: 100-240V AC±10%; 50/60 Hz
  • Output: DC12V, 0.4A
  • Power plug configured for US electrical sockets (CE Certified) is included; plugs for other countries can be found here
Structure
  • Made of SS304
Pump Flow Rate
  • 3L/min
Absolute Vacuum Level
  • -65kPa
Capacity
  • 2 L
Filtration

  • 3 filters are included in the standard package with filtration pore sizes: 120, 150, and 200 mesh.
  • For any other sizes below 1000 mesh, please click here:
    • 100 mesh      120 mesh
    • 150 mesh     200 mesh
    • 250 mesh       300 mesh
Measuring Cup
  • One stainless steel cup is included for measuring slurry up to 2 L
  • Scribe lines on the inside facilitate the measurement


$1,259.30

Original: $3,598.00

-65%
Compact Filtration System (2 L) for Battery Electrode Slurry - MSK-FT01-2L—

$3,598.00

$1,259.30

Compact Filtration System (2 L) for Battery Electrode Slurry - MSK-FT01-2L

MSK-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >100 micrometers. An SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.

SPECIFICATIONS
Power Requirements

  • Input: 100-240V AC±10%; 50/60 Hz
  • Output: DC12V, 0.4A
  • Power plug configured for US electrical sockets (CE Certified) is included; plugs for other countries can be found here
Structure
  • Made of SS304
Pump Flow Rate
  • 3L/min
Absolute Vacuum Level
  • -65kPa
Capacity
  • 2 L
Filtration

  • 3 filters are included in the standard package with filtration pore sizes: 120, 150, and 200 mesh.
  • For any other sizes below 1000 mesh, please click here:
    • 100 mesh      120 mesh
    • 150 mesh     200 mesh
    • 250 mesh       300 mesh
Measuring Cup
  • One stainless steel cup is included for measuring slurry up to 2 L
  • Scribe lines on the inside facilitate the measurement


Product Information

Shipping & Returns

Description

MSK-FT01 slurry filtration system is designed for use with the preparation of battery electrode slurries. It comes with two filters for removing particle sizes with dia. >100 micrometers. An SS304 slurry container together with a compact design allows for ease of operation and maximum flexibility in laboratory settings.

SPECIFICATIONS
Power Requirements

  • Input: 100-240V AC±10%; 50/60 Hz
  • Output: DC12V, 0.4A
  • Power plug configured for US electrical sockets (CE Certified) is included; plugs for other countries can be found here
Structure
  • Made of SS304
Pump Flow Rate
  • 3L/min
Absolute Vacuum Level
  • -65kPa
Capacity
  • 2 L
Filtration

  • 3 filters are included in the standard package with filtration pore sizes: 120, 150, and 200 mesh.
  • For any other sizes below 1000 mesh, please click here:
    • 100 mesh      120 mesh
    • 150 mesh     200 mesh
    • 250 mesh       300 mesh
Measuring Cup
  • One stainless steel cup is included for measuring slurry up to 2 L
  • Scribe lines on the inside facilitate the measurement
