100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

MSK-DPC-B320 is an automatic roll-to-roll calendering press system with precision digital pressure control for battery electrode production.
It has 370 mm width and 320 diameter high strength alloy rollers and can produce electrodes up to 350 mm width at 6 m/min max speed and the rolling force of 100 metric tons.

SPECIFICATIONS:

Working Voltage	AC 220V or 380V 50/60 Hz Three Phase Max. Power Consumption: 6 KW
Rollers (one pair)	Dimensions: 320mm Diameter x 370mm Width Material: Hardening Tool Steel 9Cr3Mo with HRC 65 -70 Hardening material layer thickness: 10 mm Effective Rolling Width: ≤ 350 mm Max. Diameter of delivering and winding: 320 mm Max. Force: 100 T
Press gap	0 - 2 mm adjustable Tolerance: 0.001 mm
Rolling Speed	0.3 - 6 Meter / Minute adjustable by Touch Screen Control Panel
Press Flatness	Thickness Accuracy: ± 0.0025mm Surface Roughness: ≤ Ra 0.8
Pressure Control	Pressure load: 1 - 100 Tons adjustable by Touch Screen Control Panel Real-time pressure display with data saved function
Accessories Included	Rolling to Roller cleaning function is built-in Edge cutting device included Dust Removing device installed Roller installation and unload cart included
Roll to Roll Device (Optional)	Roll-to-roll unwinding and winding unit can be integrated on the rolling machine. Maximum Roller Width: 350 mm Feeding and Collecting Roller Diameter: 250 mm Tension Control: Maximum 50 N
Utility and Environment	Compressed air: 0.5~0.8 Mpa (Air compressor is not included) Environment Temperature: 25 ± 3 Environment Humidity: 0~90RH
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
Application Notes	It is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).

Select Model

From $52,494.75

Original: $149,985.00

-65%

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320—

$149,985.00

$52,494.75

More Images

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320 - Image 2

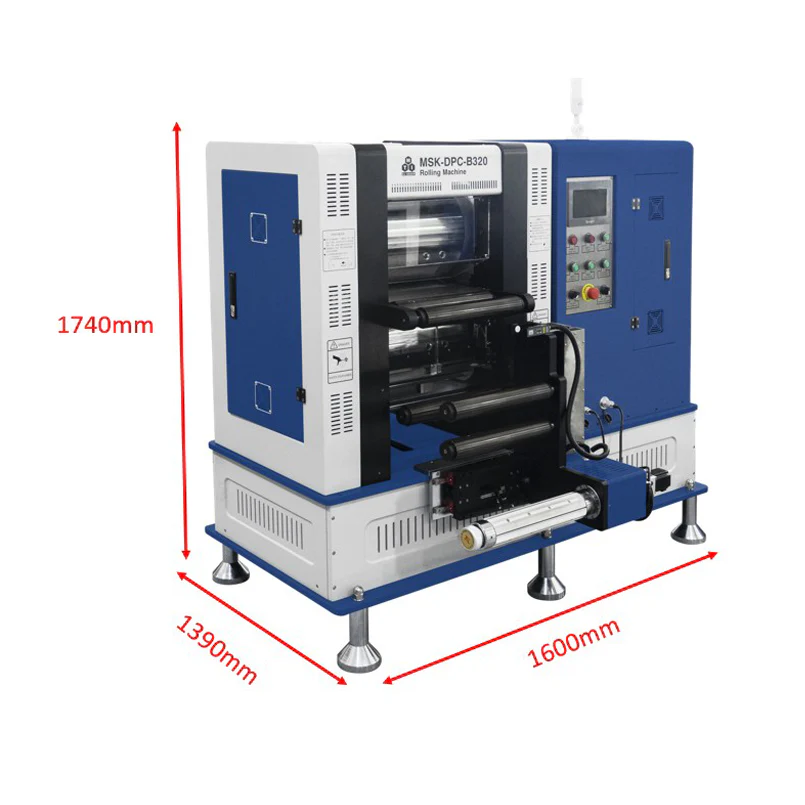

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320 - Image 3

100T Max. Pressure Controlled Rolling Press (D320 x W350 mm ) W/ R2R Option - MSK-DPC-B320

MSK-DPC-B320 is an automatic roll-to-roll calendering press system with precision digital pressure control for battery electrode production.
It has 370 mm width and 320 diameter high strength alloy rollers and can produce electrodes up to 350 mm width at 6 m/min max speed and the rolling force of 100 metric tons.

SPECIFICATIONS:

Working Voltage	AC 220V or 380V 50/60 Hz Three Phase Max. Power Consumption: 6 KW
Rollers (one pair)	Dimensions: 320mm Diameter x 370mm Width Material: Hardening Tool Steel 9Cr3Mo with HRC 65 -70 Hardening material layer thickness: 10 mm Effective Rolling Width: ≤ 350 mm Max. Diameter of delivering and winding: 320 mm Max. Force: 100 T
Press gap	0 - 2 mm adjustable Tolerance: 0.001 mm
Rolling Speed	0.3 - 6 Meter / Minute adjustable by Touch Screen Control Panel
Press Flatness	Thickness Accuracy: ± 0.0025mm Surface Roughness: ≤ Ra 0.8
Pressure Control	Pressure load: 1 - 100 Tons adjustable by Touch Screen Control Panel Real-time pressure display with data saved function
Accessories Included	Rolling to Roller cleaning function is built-in Edge cutting device included Dust Removing device installed Roller installation and unload cart included
Roll to Roll Device (Optional)	Roll-to-roll unwinding and winding unit can be integrated on the rolling machine. Maximum Roller Width: 350 mm Feeding and Collecting Roller Diameter: 250 mm Tension Control: Maximum 50 N
Utility and Environment	Compressed air: 0.5~0.8 Mpa (Air compressor is not included) Environment Temperature: 25 ± 3 Environment Humidity: 0~90RH
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
Application Notes	It is not allowed to use any MTI product in any hazardous location, especially prohibit from using in Class I environments (flammable gasses & vapor).
